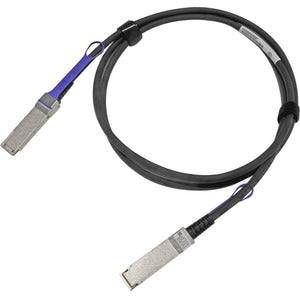

Mellanox LinkX Twinaxial Network Cable
SKU: MCP1700-B003E
Mellanox® QSFP+ direct attach copper (DAC) cables provide robust connections for leading edge 56Gb/s InfiniBand or 40GbE Ethernet systems. The cables consist of four lanes each operating at data rates of up to 14.0625Gb/s.
Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system.
This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with Mellanox's 56Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability
Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system.
This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with Mellanox's 56Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability
- Up to 56Gb/s data rate for MC22071xx, MCP170L
- Up to 40Gb/s data rate for MC22061xx,MC22101xx, MCP1700
- SFF-8685 compliant QSFP+
- Operating case temperature of 0-70°C
- 3.3V power supply
- BER better than 1E-15
- Hot pluggable
- RoHS compliant
- SFF-8636 compliant I2C management interface
Call for Availability
Regular price
$215
Shipping calculated at checkout
Mellanox® QSFP+ direct attach copper (DAC) cables provide robust connections for leading edge 56Gb/s InfiniBand or 40GbE Ethernet systems. The cables consist of four lanes each operating at data rates of up to 14.0625Gb/s.
Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system.
This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with Mellanox's 56Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability
Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system.
This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with Mellanox's 56Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability
- Up to 56Gb/s data rate for MC22071xx, MCP170L
- Up to 40Gb/s data rate for MC22061xx,MC22101xx, MCP1700
- SFF-8685 compliant QSFP+
- Operating case temperature of 0-70°C
- 3.3V power supply
- BER better than 1E-15
- Hot pluggable
- RoHS compliant
- SFF-8636 compliant I2C management interface
American Wire Gauge:
28 AWG
Cable Length:
9.84 ft
Cable Type:
Twinaxial
Connector on First End Details:
1 X SFF-8685 QSFP Network
Connector on Second End Details:
1 X SFF-8685 QSFP Network
Connector Type on First End:
SFF-8685 QSFP Network
Connector Type on Second End:
SFF-8685 QSFP Network
Data Transfer Rate:
40 Gbit/s
Device Supported:
Network Device
Environmentally Friendly:
Yes
Features:
Passive,Bendable,EMI Protection
Limited Warranty:
1 Year
Manufacturer:
NVIDIA Corporation
Manufacturer Website Address:
http://www.nvidia.com
Product Color:
Black
Product Line:
LinkX
Product Material:
Copper
Product Type:
Network Cable
