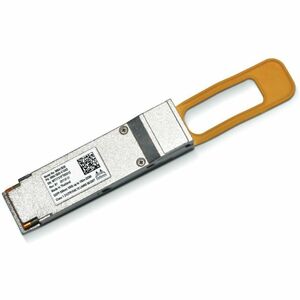

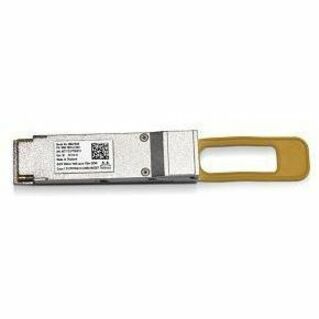

Mellanox 100Gb/s QSFP28 Optical Transceiver
The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:
-Temperature with warning/alarm
-Supply voltage with warning/alarm
-Laser bias current
-Transmitted optical power with warning/alarm
-Received optical power with warning/alarm
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
- QSFP28 is the single answer to all your desired and specified application execution needs
- With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
- 100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Multi-mode fiber mode support for dependable connectivity with maximum usability
- Hot-pluggable form factor allows hassle-free and easy usage with increased efficiency
- QSFP28 with optical network application/usage for reliability and maximum efficiency
Call for Availability
Shipping calculated at checkout
The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:
-Temperature with warning/alarm
-Supply voltage with warning/alarm
-Laser bias current
-Transmitted optical power with warning/alarm
-Received optical power with warning/alarm
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
- QSFP28 is the single answer to all your desired and specified application execution needs
- With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
- 100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Multi-mode fiber mode support for dependable connectivity with maximum usability
- Hot-pluggable form factor allows hassle-free and easy usage with increased efficiency
- QSFP28 with optical network application/usage for reliability and maximum efficiency
