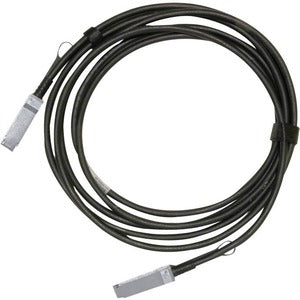

Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable
SKU: MCP1600-E003E26
Mellanox® MCP1600-E0xxEy DAC cables are high speed, cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications.
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
- Up to 100Gb/s data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2 C management interface
6 in stock
Regular price
$203
Shipping calculated at checkout
Mellanox® MCP1600-E0xxEy DAC cables are high speed, cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications.
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
- Up to 100Gb/s data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2 C management interface
American Wire Gauge:
26 AWG
Cable Length:
9.84 ft
Cable Type:
QSFP28
Color Family:
Black
Connector on First End Details:
1 x QSFP28 Network
Connector on Second End Details:
1 x QSFP28 Network
Connector Type on First End:
QSFP28 Network
Connector Type on Second End:
QSFP28 Network
Data Transfer Rate:
100 Gbit/s
Device Supported:
Network Device
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Passive,Lead-free,Halogen Free,Bendable
Jacket Material:
Low Smoke Zero Halogen
Jacket Type:
LSZH
Limited Warranty:
1 Year
Manufacturer:
NVIDIA Corporation
Manufacturer Website Address:
http://www.nvidia.com
Product Color:
Black
Product Line:
LinkX
Product Material:
Copper
Product Type:
Network Cable
