Lantronix Unmanaged Hardened Gigabit Ethernet PoE++ Switch
SKU: SISTP1040-551-LRT

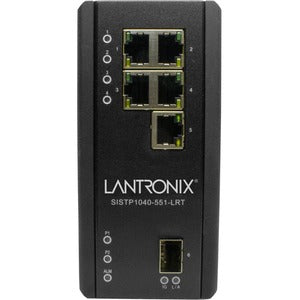

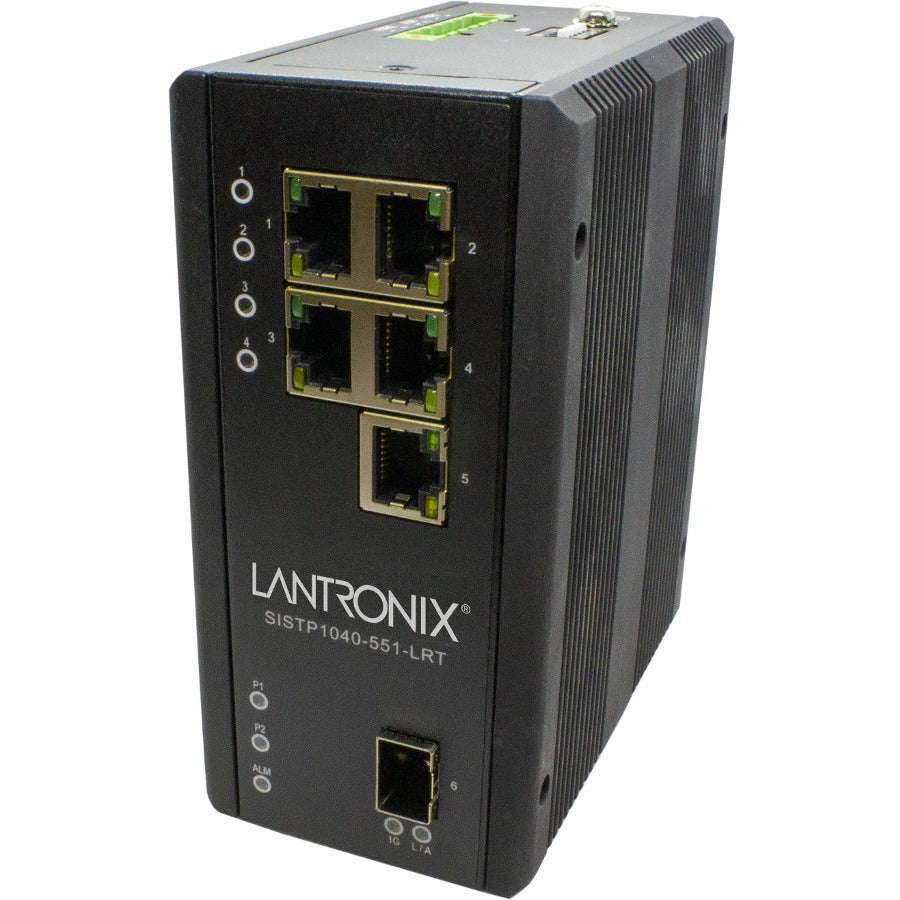

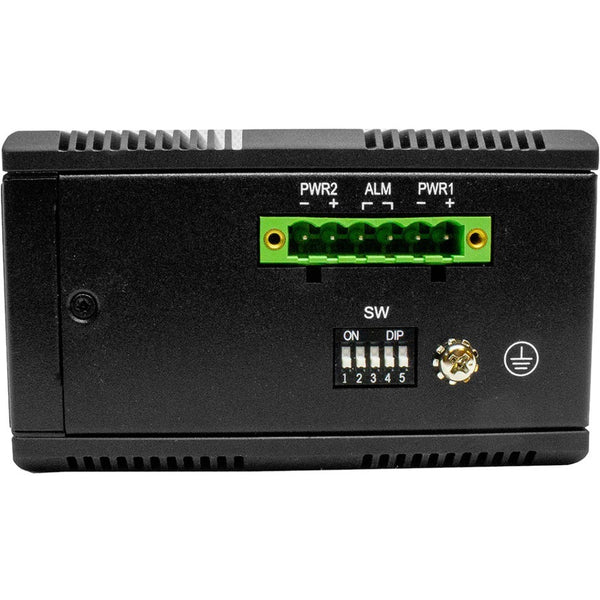

This switch is an unmanaged full Gigabit Ethernet hardened PoE++ switch that complies with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af. The switch has (4) 10/100/1000Base-T PoE++ ports, (1) 10/100/1000Base-T port with (1) 100/1000 dual speed SFP slot. It can deliver up to 90 Watts on each PoE++ port simultaneously and also supports Power over HDBaseT (PoH) mode (95 Watts) when enabled by DIP switch. The SISTP1040-551-LRT can be used to power PoE lighting, high powered IP cameras and digital signage. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C.
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Optical Fiber media support for efficient and reliable connectivity
Call for Availability
Regular price
$578.72
Sale price
$750.60
On Sale
Shipping calculated at checkout
This switch is an unmanaged full Gigabit Ethernet hardened PoE++ switch that complies with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af. The switch has (4) 10/100/1000Base-T PoE++ ports, (1) 10/100/1000Base-T port with (1) 100/1000 dual speed SFP slot. It can deliver up to 90 Watts on each PoE++ port simultaneously and also supports Power over HDBaseT (PoH) mode (95 Watts) when enabled by DIP switch. The SISTP1040-551-LRT can be used to power PoE lighting, high powered IP cameras and digital signage. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C.
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Optical Fiber media support for efficient and reliable connectivity
Ethernet Technology:
Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Features:
Fanless
Form Factor:
DIN Rail Mountable,Wall Mountable
Input Voltage:
48 V DC,57 V DC,120 V AC,230 V AC
Layer Supported:
2
Manageable:
No
Manufacturer:
Lantronix, Inc
Manufacturer Website Address:
http://www.lantronix.com
Media Type Supported:
Optical Fiber,Twisted Pair
Modular:
Yes
Networking Standards:
IEEE 802.3bt,IEEE 802.3at,IEEE 802.3af,IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3x,IEEE 802.1p
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-T,100/1000Base-X
PoE (RJ-45) Port:
Yes
PoE Budget:
360 W
Port/Expansion Slot Details:
1 x Gigabit Ethernet Network,4 x Gigabit Ethernet PoE++,1 x Gigabit Ethernet Expansion Slot
Power Consumption:
5 W
Power Source:
AC/DC
Product Material:
Metal
Product Model:
SISTP1040-551-LRT
Product Type:
Ethernet Switch
Total Number of Expansion Slots:
1.0
Total Number of Network Ports:
5
