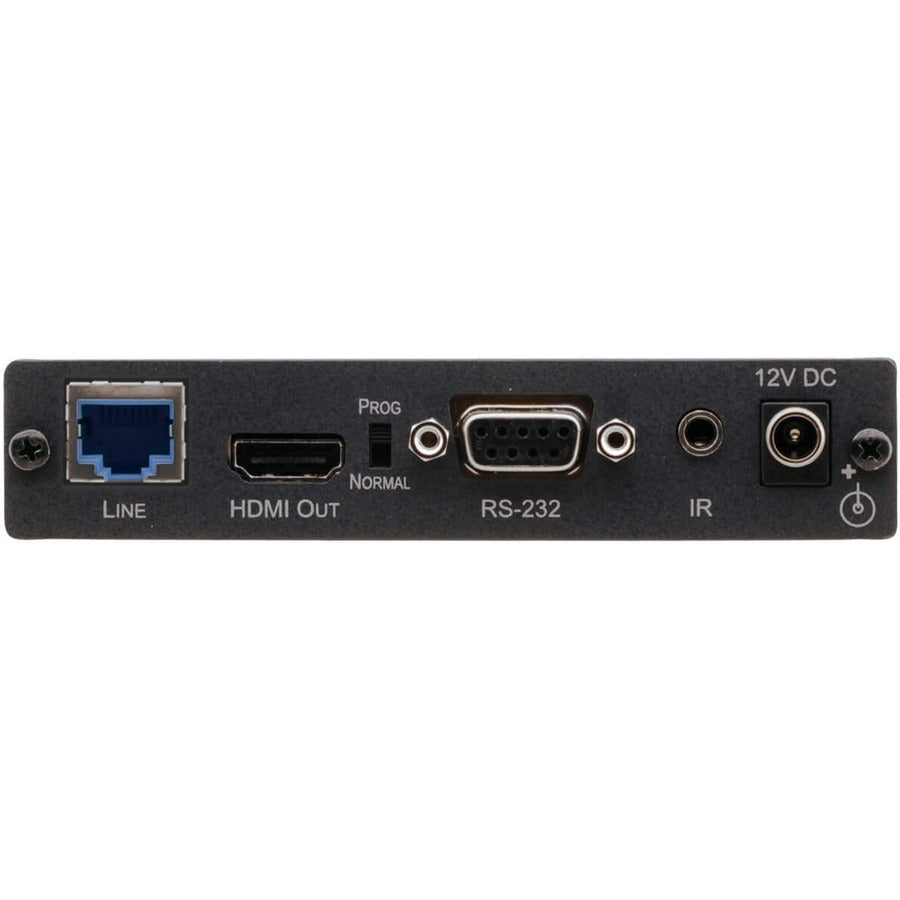

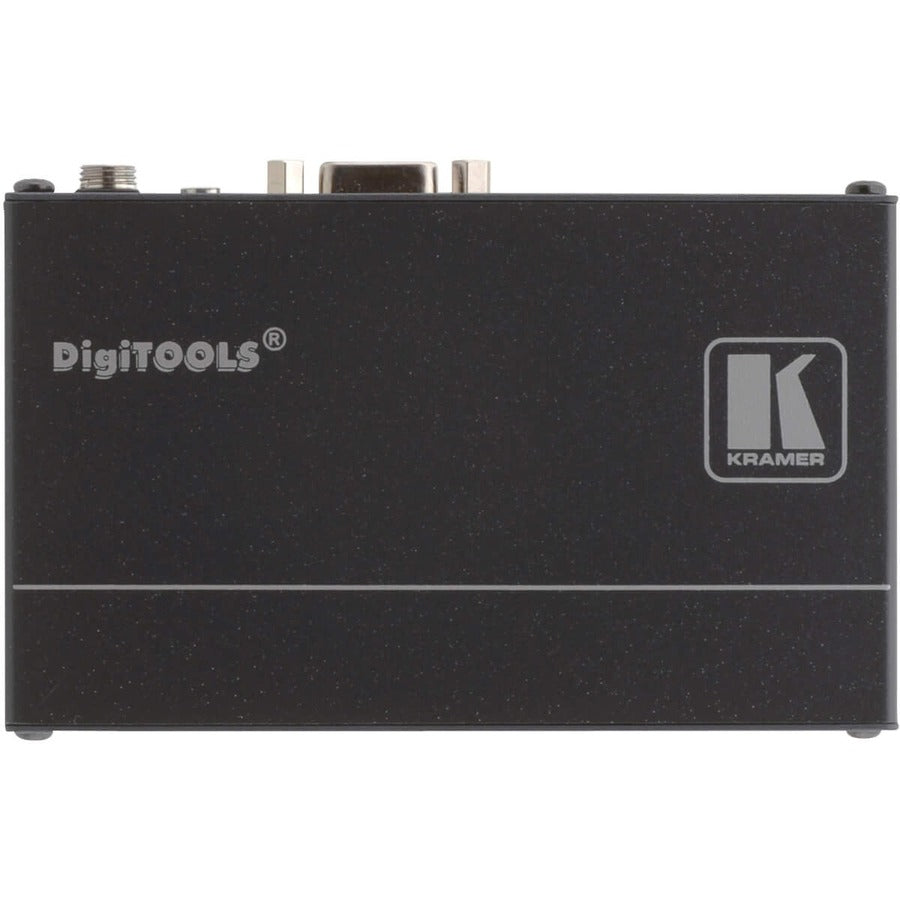

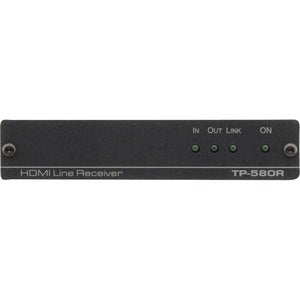

Kramer TP-580R Video Extender Receiver
SKU: 50-80022090
TP-580R is a high-performance, long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions
FEATURES
High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables
HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display
I--EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment
Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter
FEATURES
High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables
HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display
I--EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment
Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter
- Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 1080p supported video mode for optimal viewing brilliance and efficiency
- 1920 x 1080 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- 1 output devices supported for maximum productive usability
- 229.66 ft maximum operating distance for feasible operation and optimal coverage
- Full HD graphics mode for an immersive and sharp viewing experience
- Rack-mountable video extender receiver allows maximum space utilization with easy and convenient access to the equipment
12 in stock
Regular price
$225.68
Sale price
$295
On Sale
Shipping calculated at checkout
TP-580R is a high-performance, long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions
FEATURES
High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables
HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display
I--EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment
Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter
FEATURES
High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables
HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display
I--EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment
Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter
- Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 1080p supported video mode for optimal viewing brilliance and efficiency
- 1920 x 1080 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- 1 output devices supported for maximum productive usability
- 229.66 ft maximum operating distance for feasible operation and optimal coverage
- Full HD graphics mode for an immersive and sharp viewing experience
- Rack-mountable video extender receiver allows maximum space utilization with easy and convenient access to the equipment
Connectivity Technology:
Wired
Form Factor:
Rack-mountable
Graphics Modes:
Full HD
HDMI Out:
Yes
Manufacturer:
Kramer Electronics LTD
Manufacturer Website Address:
http://www.kramerelectronics.com
Maximum Operating Distance:
229.66 ft
Maximum Video Resolution:
1920 x 1080
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of HDMI Outputs:
1
Number of Network (RJ-45) Ports:
1
Number of Output Devices Supported:
1
Package Contents:
- TP-580R Video Extender Receiver
- Power Supply Unit
Product Model:
TP-580R
Product Type:
Video Extender Receiver
Receiver Depth:
2.81"
Receiver Height:
0.96"
Receiver Weight (Approximate):
7.05 oz
Receiver Width:
4.72"
Supported Video Modes:
1080p
