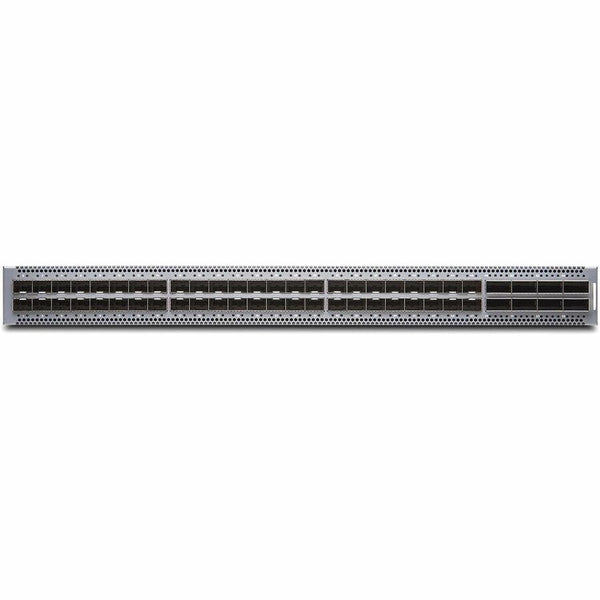

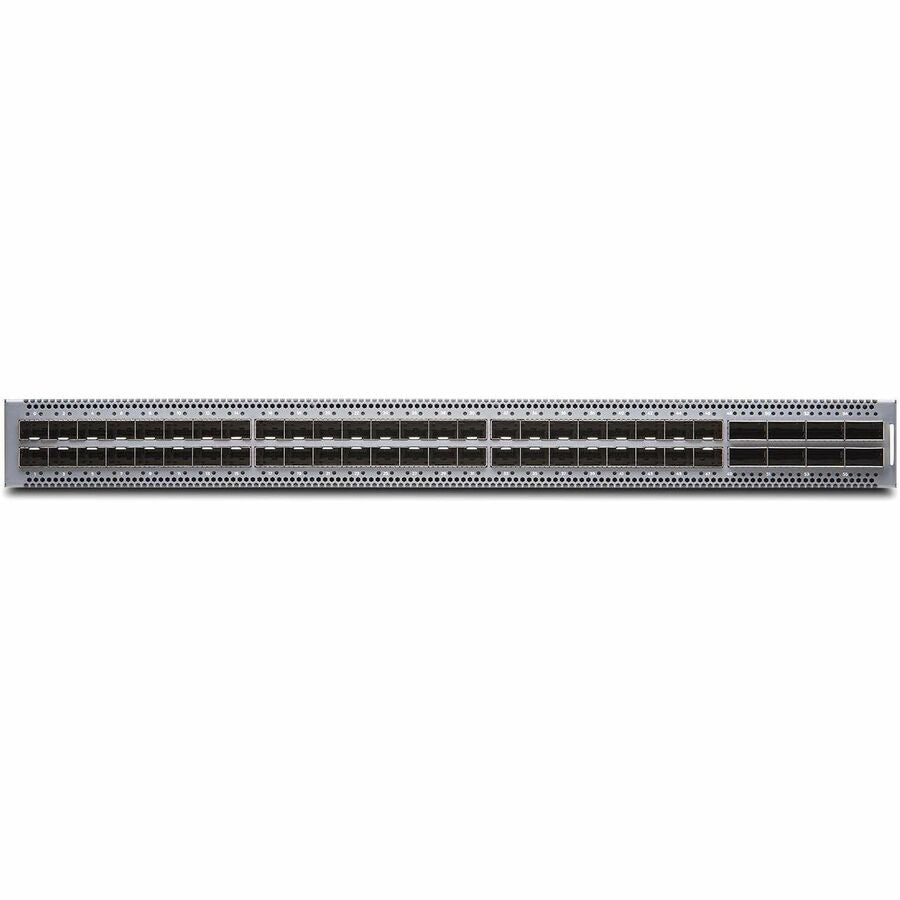

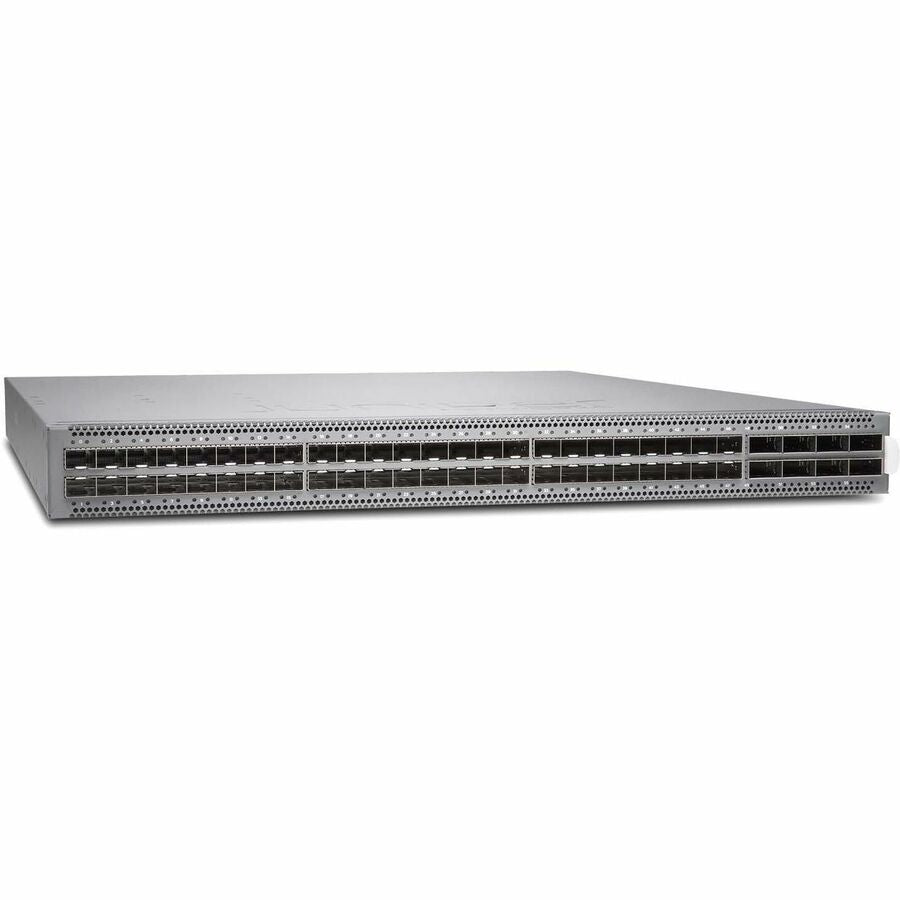

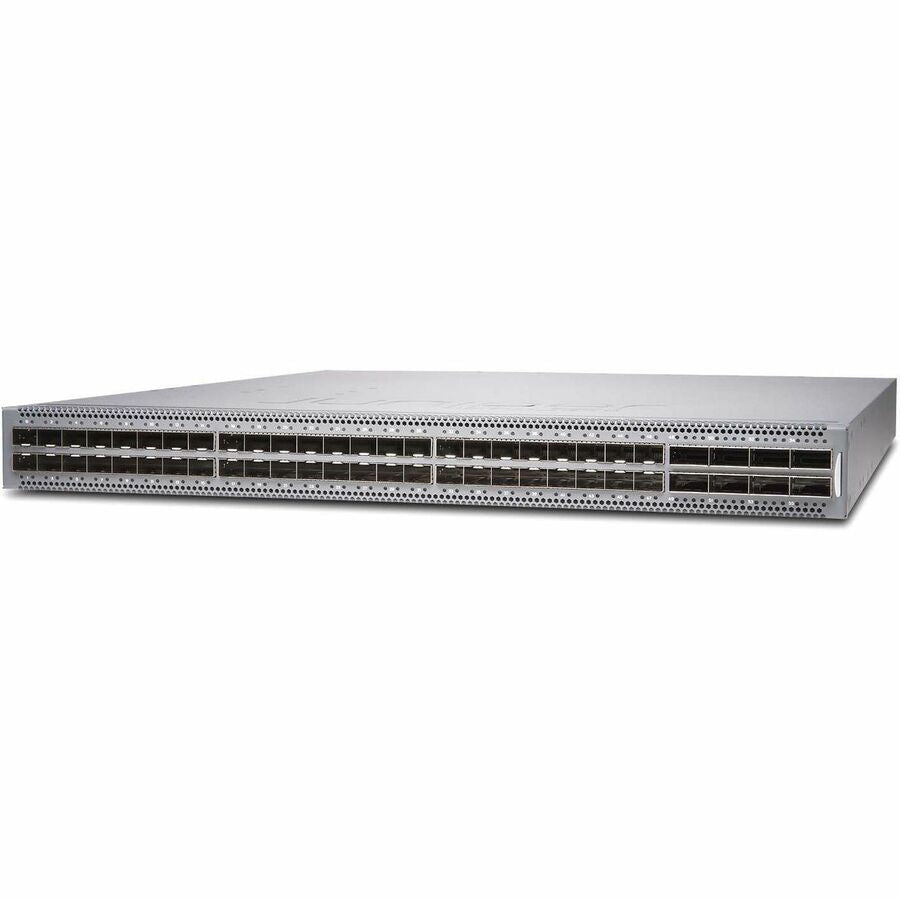

Juniper QFX5120-48Y Ethernet Switch
SKU: B1-Q5120-48YO-A-A5
The QFX5120 delivers low-latency, native 25GbE, rich Layer 2 and Layer 3 features, VXLAN overlay support, and 100GbEoverlay support, and 100GbE uplinks, making it the ideal switch for access and top-of-rack deployments.
Featuring Layer 3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that demand support for overlay/ underlay network architectures. The high-density 10GbE, 25GbE, 40GbE, and 100GbE ports also make the QFX5120 ideally suited for deployment as leaf-and-spine and leaf topologies.
Featuring Layer 3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that demand support for overlay/ underlay network architectures. The high-density 10GbE, 25GbE, 40GbE, and 100GbE ports also make the QFX5120 ideally suited for deployment as leaf-and-spine and leaf topologies.
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Cascade to other network devices through the uplink port to expand your local area network
- Supports layer 3 switching for enhanced performance and usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability allows maximum efficiency and with unrestricted control
- 25 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
9999 in stock
Regular price
$62,060
Shipping calculated at checkout
The QFX5120 delivers low-latency, native 25GbE, rich Layer 2 and Layer 3 features, VXLAN overlay support, and 100GbEoverlay support, and 100GbE uplinks, making it the ideal switch for access and top-of-rack deployments.
Featuring Layer 3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that demand support for overlay/ underlay network architectures. The high-density 10GbE, 25GbE, 40GbE, and 100GbE ports also make the QFX5120 ideally suited for deployment as leaf-and-spine and leaf topologies.
Featuring Layer 3 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that demand support for overlay/ underlay network architectures. The high-density 10GbE, 25GbE, 40GbE, and 100GbE ports also make the QFX5120 ideally suited for deployment as leaf-and-spine and leaf topologies.
- Layer 3 Switch provides reliable, efficient connectivity to ensure maximum feasibility
- Cascade to other network devices through the uplink port to expand your local area network
- Supports layer 3 switching for enhanced performance and usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability allows maximum efficiency and with unrestricted control
- 25 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Compatible Rack Unit:
1U
Energy Efficiency Certification:
80 Plus Silver
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
25 Gigabit Ethernet,100 Gigabit Ethernet
Expansion Slot Type:
SFP+,QSFP28
Form Factor:
Rack-mountable
Input Voltage:
120 V AC,230 V AC,-48 V DC,-60 V DC
Layer Supported:
3
Manageable:
Yes
Manufacturer:
Juniper Networks, Inc
Manufacturer Website Address:
http://www.juniper.net
Media Type Supported:
Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.1D,IEEE 802.1w,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1ad,IEEE 802.3ad,IEEE 802.1ab,IEEE 802.3x,IEEE 802.1Qbb,IEEE 802.1Qaz,IEEE 802.1s
Network Technology:
25GBase-X,100GBase-X
Number of Power Supplies Supported:
2
Number of SFP+ Slots:
48
Port/Expansion Slot Details:
48 x 25 Gigabit Ethernet Expansion Slot,8 x 100 Gigabit Ethernet Expansion Slot
Power Consumption:
450 W
Power Source:
Power Supply,AC/DC
Product Model:
QFX5120-48Y
Product Series:
QFX5100
Product Type:
Layer 3 Switch
Redundant Power Supply Supported:
Yes
Shared SFP Slot:
No
Total Number of Expansion Slots:
56
Uplink Port:
Yes
