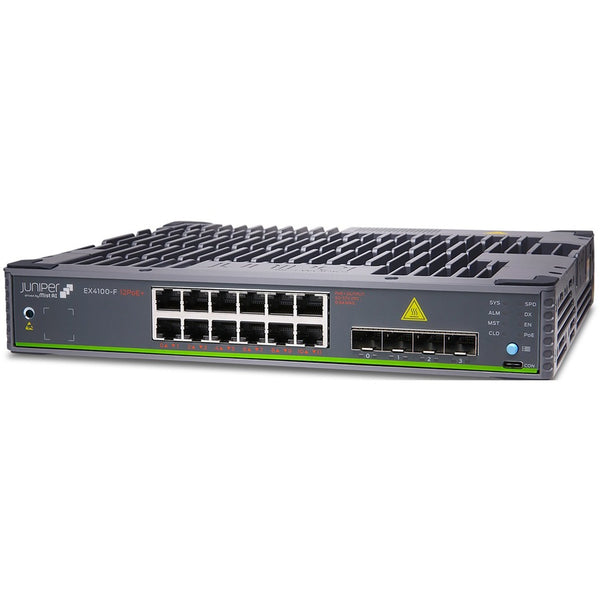

Juniper EX4100-F-12P Ethernet Switch

The Juniper Networks® EX4100-F line of Switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, remote office, and enterprise campus networks. The EX4100-F switches combine the simplicity of the cloud, the power of Mist AI™, and a robust hardware foundation with high performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™ Wired Assurance, the EX4100-F line of Switches can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

Key features of the EX4100-F include:

• Cloud-ready, driven by Mist AI with Juniper Mist Wired Assurance and Marvis Virtual Network Assistant
• Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
• Standards-based microsegmentation using group-based policies (GBPs)
• Flow-based telemetry to monitor traffic flows for anomaly detection, ability to measure packet delays and report drop reasons
• 10-member Virtual Chassis support

Offering a full suite of Layer 2 and Layer 3 capabilities, the EX4100-F enables multiple deployments. As scaling requirements increase, Juniper's Virtual Chassis technology allows up to 10 EX4100-F switches to be seamlessly interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100-F line consists of the following models:

• The EX4100-F-12T, which is a compact, fanless switch offering 12 x 1GbE non-PoE access ports.
• The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30 W per port with a total of 180 W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90 W power sourcing equipment (PSE) device connected via the uplink port. Additional 90 W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90 W external PSE, total PoE power budget supported is up to 300 W.
• The EX4100-F-24T, which offers 24 x 1GbE non-PoE access ports.
• The EX4100-F-24P, which offers 24 x 1GbE PoE+ access ports, delivering up to 30 W per port with an overall total 370 W of PoE power budget.
• The EX4100-F-48T, which offers 48 x 1GbE non-PoE access ports.
• The EX4100-F-48P, which offers 48 x 1GbE PoE+ access ports and delivers up to 30 W per port with an overall total PoE Power budget of 740 W.

• Effectively increases available bandwidth on your network
• Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
• Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity
• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 12 ports
• Supports layer 3 switching for enhanced performance and usability
• Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
• Management capability provides control over setup and configuration of your network
• Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
• Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
