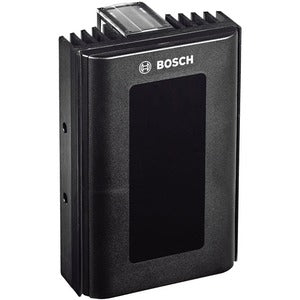

Illuminator, 940nm, long range
The infrared illuminator provides covert or semi-covert lighting for long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates.The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.
System overview
Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
- Self-cleaning lens coating technology
- Telemetry input and photocell output for external switching
- Interchangeable beam pattern diffusers to match beam to camera
- Adjustable IR intensity
- Integrated adjustable photocell
Call for Availability
Shipping calculated at checkout
The infrared illuminator provides covert or semi-covert lighting for long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates.The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.
System overview
Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
- Self-cleaning lens coating technology
- Telemetry input and photocell output for external switching
- Interchangeable beam pattern diffusers to match beam to camera
- Adjustable IR intensity
- Integrated adjustable photocell
Power
- Power supply x 12 to 32 VDC or 24 VAC ±10%
- Power consumption x 39 W
Optical
- Wavelength x 850 nm or 940 nm
- IR control x Adjustable IR intensity (10% to 100%)
- Day/night switch x Photocell, sensitivity adjustable (20 lx to 70 lx)
- Beam angles x 10°, 20°, 30°, 60°, 80°, and 95°
Range 850 nm
- Beam pattern diffuser x Achievable Distance* HFOV
- 10� x 268 m (881 ft) 47 m (154 ft)
- 20° x 183 m (640 ft) 65 m (212 ft)
- 30� x 134 m (440 ft) 72 m (236 ft)
- 60° x 85 m (280 ft) 99 m (324 ft)
- 80° x 61 m (200 ft) 102 m (336 ft)
- 95� x 43 m (140 ft) 93 m (306 ft)
Range 940 nm
- Beam pattern diffuser x Achievable Distance* HFOV
- 10� x 165 m (540 ft) 29 m (95 ft)
- 20° x 98 m (320 ft) 34 m (113 ft)
- 30� x 79 m (260 ft) 42 m (139 ft)
- 60° x 49 m (160 ft) 56 m (185 ft)
- 80° x 37 m (120 ft) 61 m (202 ft)
- 95� x 24 m (80 ft) 53 m (175 ft)
Mechanical
- Housing x Robust anodized aluminum extrusion, black
- Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
- Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
- Cable x 3 m (9 ft)
- Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
- Bracket weight x 0.2 kg (0.44 lbs)
Environmental
- Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
