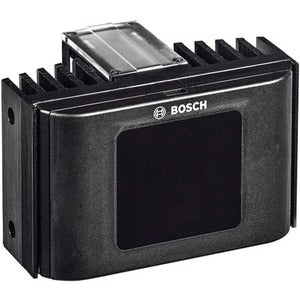

Illuminator, 850nm, short range
The infrared illuminator provides covert or semi-covert lighting for short-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates. The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.
System overview
Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating technology
- Interchangeable beam pattern diffusers to match beam to camera
- Integrated adjustable photocell
- Adjustable IR intensity
Call for Availability
Shipping calculated at checkout
The infrared illuminator provides covert or semi-covert lighting for short-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates. The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.
System overview
Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating technology
- Interchangeable beam pattern diffusers to match beam to camera
- Integrated adjustable photocell
- Adjustable IR intensity
- Power supply: 12 to 32 VDC or 24 VAC ±10%
- Power consumption: 13 W
- Wavelength: 850 nm or 940 nm
- IR control: Adjustable IR intensity (10% to 100%)
- Day/night switch: Photocell, sensitivity adjustable (20 lx to 70 lx)
- Beam angles: 10°, 20°, 30°, 60°, 80°, and 95°
- Beam pattern diffuser: Achievable Distance, HFOV
- 10°: 156 m (510 ft) , 27 m (89 ft)
- 20°: 106 m (348 ft) , 37 m (123 ft)
- 30°: 78 m (255 ft) , 42 m (137 ft)
- 60°: 49 m (162 ft) , 57 m (187 ft)
- 80°: 35 m (116 ft) , 59 m (195 ft)
- 95°: 25 m (81 ft) , 54 m (177 ft)
- Beam pattern diffuser Achievable Distance, HFOV
- 10°: 95 m (313 ft) , 17 m (55 ft)
- 20°: 57 m (186 ft) , 20 m (65 ft)
- 30°: 46 m (151 ft) , 25 m (81 ft)
- 60°: 28 m (93 ft) , 33 m (107 ft)
- 80°: 21 m (70 ft) , 36 m (117 ft)
- 95°: 14 m (46 ft) , 31 m (101 ft)
- Mount: Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
- Cable: 3 m (9 ft)
- Bracket dimensions (W x H x D): 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
- Bracket weight: 0.2 kg (0.44 lbs
- Operation Temperature Range: -50 °C to +50 °C (-58 °F to +122 °F)
