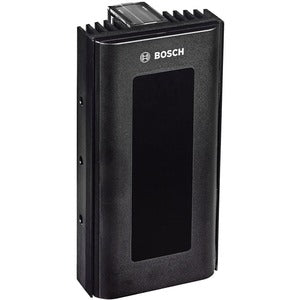

Illuminator, 850nm, extra range
SKU: IIR-50850-XR
- Integrated adjustable photocell
- Adjustable IR intensity
- Interchangeable beam pattern diffusers to match beam to camera
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating technology
System overview
Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
Call for Availability
Regular price
$1,336.13
Shipping calculated at checkout
- Integrated adjustable photocell
- Adjustable IR intensity
- Interchangeable beam pattern diffusers to match beam to camera
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating technology
System overview
Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
Additional Information:
Power
- Power supply x 12 to 32 VDC or 24 VAC ±10%
- Power consumption x 52 W
Optical
- Wavelength x 850 nm or 940 nm
- IR control x Adjustable IR intensity (10% to 100%)
- Day/night switch x Photocell, sensitivity adjustable (20 lx to 70 lx)
- Beam angles x 10°, 20°, 30°, 60°, 80°, and 95°
Range 850 nm
- Beam pattern diffuser x Achievable Distance* HFOV
- 10� x 308 m (1010 ft) 54 m (177 ft)
- 20° x 210 m (689 ft) 74 m (243 ft)
- 30� x 154 m (505 ft) 83 m (271 ft)
- 60° x 98 m (322 ft) 113 m (371 ft)
- 80° x 70 m (230 ft) 117 m (385 ft)
- 95� x 49 m (161 ft) 107 m (351 ft)
Range 940 nm
- Beam pattern diffuser x Achievable Distance* HFOV
- 10� x 189 m (620 ft) 33 m (108 ft)
- 20° x 112 m (367 ft) 39 m (130 ft)
- 30� x 91 m (299 ft) 49 m (160 ft)
- 60° x 56 m (184 ft) 65 m (212 ft)
- 80° x 42 m (138 ft) 70 m (231 ft)
- 95� x 28 m (92 ft) 61 m (201 ft)
Mechanical
- Housing x Robust anodized aluminum extrusion, black
- Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
- Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
- Cable x 3 m (9 ft)
- Dimensions(W x H x D) x 110 x 213 x 76 mm (4.33 x 8.39 x 2.99 in)
- Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
- Bracket weight x 0.2 kg (0.44 lbs)
Environmental
- Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
Application/Usage:
Surveillance,Indoor,Outdoor
Color Family:
Black
Country of Origin:
United Kingdom
Device Supported:
Surveillance Camera
Durability:
Vandal Resistant
Environmentally Friendly:
Yes
Features:
Surface Mount,Interchangeable Lens,Adjustable Built-in Photocell,Adjustable Light Sensitivity,Self-cleaning Lens Coating,Night Vision,Robust,IP66
Manufacturer:
The Bosch Group
Manufacturer Website Address:
http://www.bosch.com
Packaged Quantity:
1
Product Color:
Black
Product Material:
Anodized Aluminum,Polycarbonate,Aluminum
Product Type:
Infrared Illuminator
