HPE AP-ANT-16 Indoor MIMO Antenna
SKU: JW003A

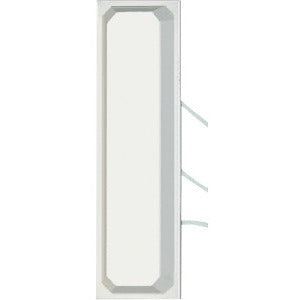

AP-ANT-16 is a dual-band 3-element omni-directional antenna for use in 802.11n MIMO applications. Housed in a compact, low-profile PVC/Acrylic Radome, the antenna can be mounted to a variety of drop ceiling grids using the integrated spring clips. Each of the three MIMO antenna elements is connected to the Aruba Access Point via a low-loss, plenum-rated coax pigtail. The radiation patterns are uniform and symmetrical, providing high-level signal density into defined coverage zones. This antenna will greatly enhance the performance of 802.11n systems. The dual-band frequency coverage means that a single type of antenna can be deployed with any MIMO radio in the 2.4-2.5 and 4.9-5.9 GHz bands.
As a multi-antenna array, the AP-ANT-16 can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage or the three elements can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
As a multi-antenna array, the AP-ANT-16 can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage or the three elements can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
- Designed to operate at 2.4 GHz to 2.5 GHz frequency
- With its broader casting range, it provides improved Wi-Fi signals to your wireless devices
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Antenna can be mounted as ceiling mount
Call for Availability
Regular price
$482.79
Shipping calculated at checkout
AP-ANT-16 is a dual-band 3-element omni-directional antenna for use in 802.11n MIMO applications. Housed in a compact, low-profile PVC/Acrylic Radome, the antenna can be mounted to a variety of drop ceiling grids using the integrated spring clips. Each of the three MIMO antenna elements is connected to the Aruba Access Point via a low-loss, plenum-rated coax pigtail. The radiation patterns are uniform and symmetrical, providing high-level signal density into defined coverage zones. This antenna will greatly enhance the performance of 802.11n systems. The dual-band frequency coverage means that a single type of antenna can be deployed with any MIMO radio in the 2.4-2.5 and 4.9-5.9 GHz bands.
As a multi-antenna array, the AP-ANT-16 can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage or the three elements can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
As a multi-antenna array, the AP-ANT-16 can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage or the three elements can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
- Designed to operate at 2.4 GHz to 2.5 GHz frequency
- With its broader casting range, it provides improved Wi-Fi signals to your wireless devices
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Antenna can be mounted as ceiling mount
Antenna Gain (Isotropic):
4.7 dBi
Application/Usage:
Indoor,Wireless Access Point,Wireless Data Network
Connector Type:
RP-SMA
Country of Origin:
China
Directivity:
Omni-directional
Form Factor:
Ceiling Mount
Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
http://www.hpe.com
Operating Frequency Range:
2.4 GHz to 2.5 GHz,4.9 GHz to 5.9 GHz
Package Contents:
- AP-ANT-16 Indoor MIMO Antenna
- Ceiling 15/16" T-bar mounting clips
Product Model:
AP-ANT-16
Product Type:
Antenna
