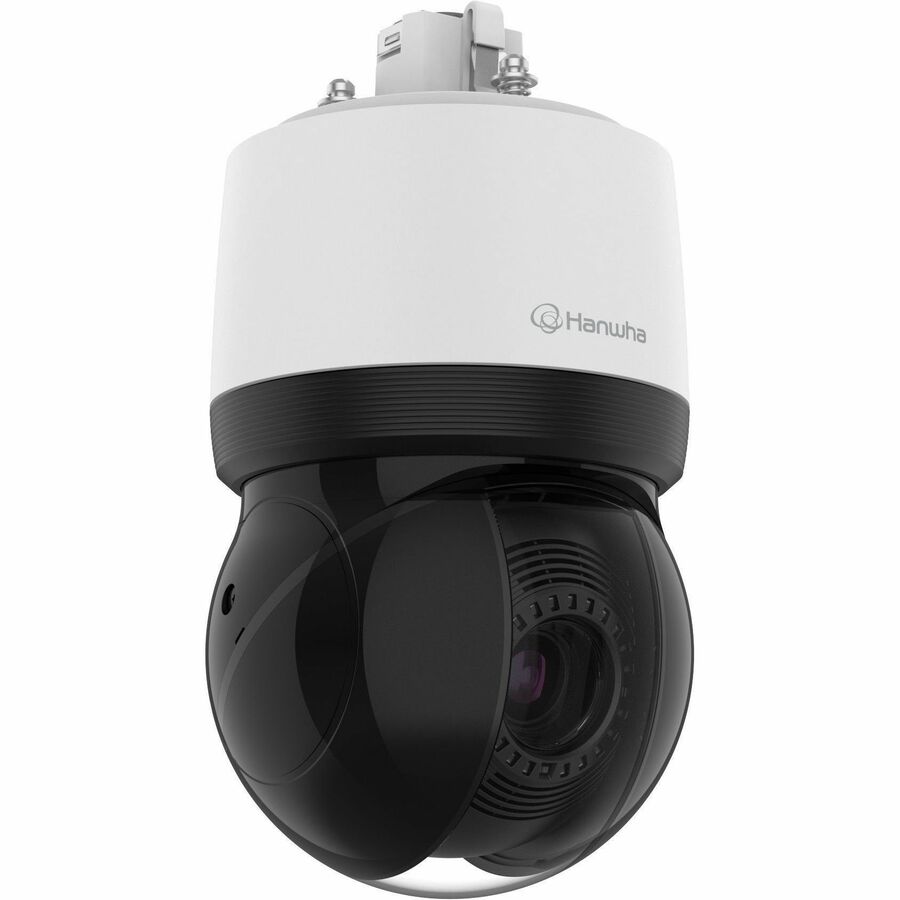

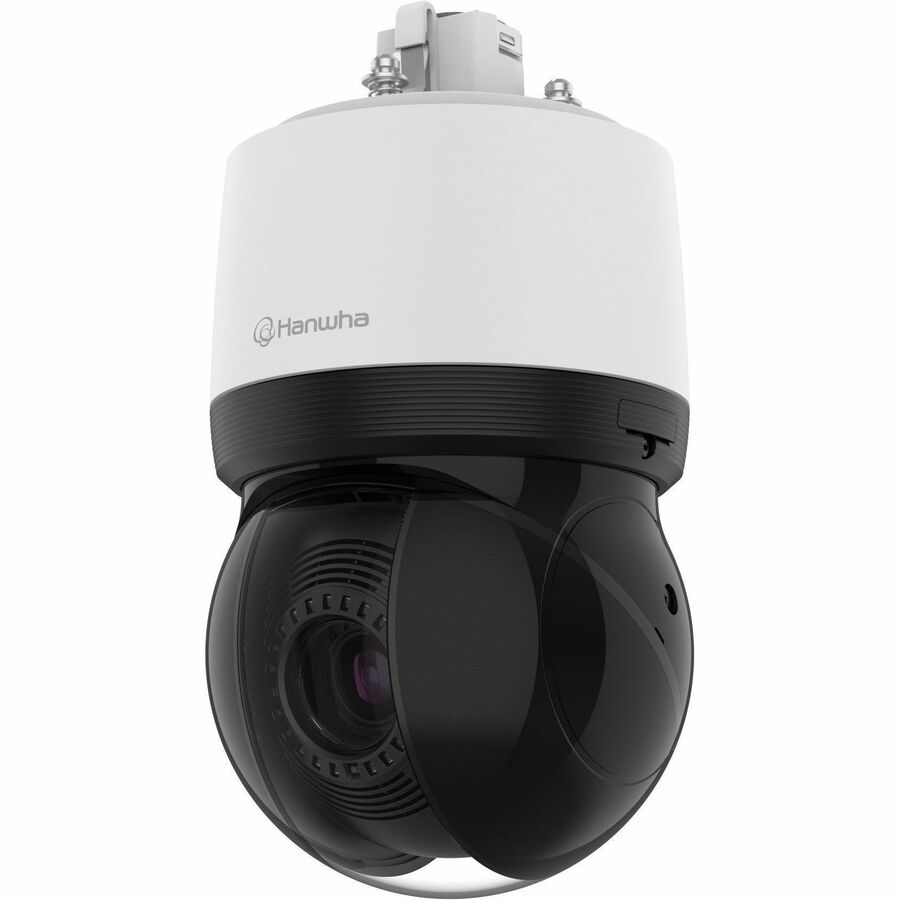

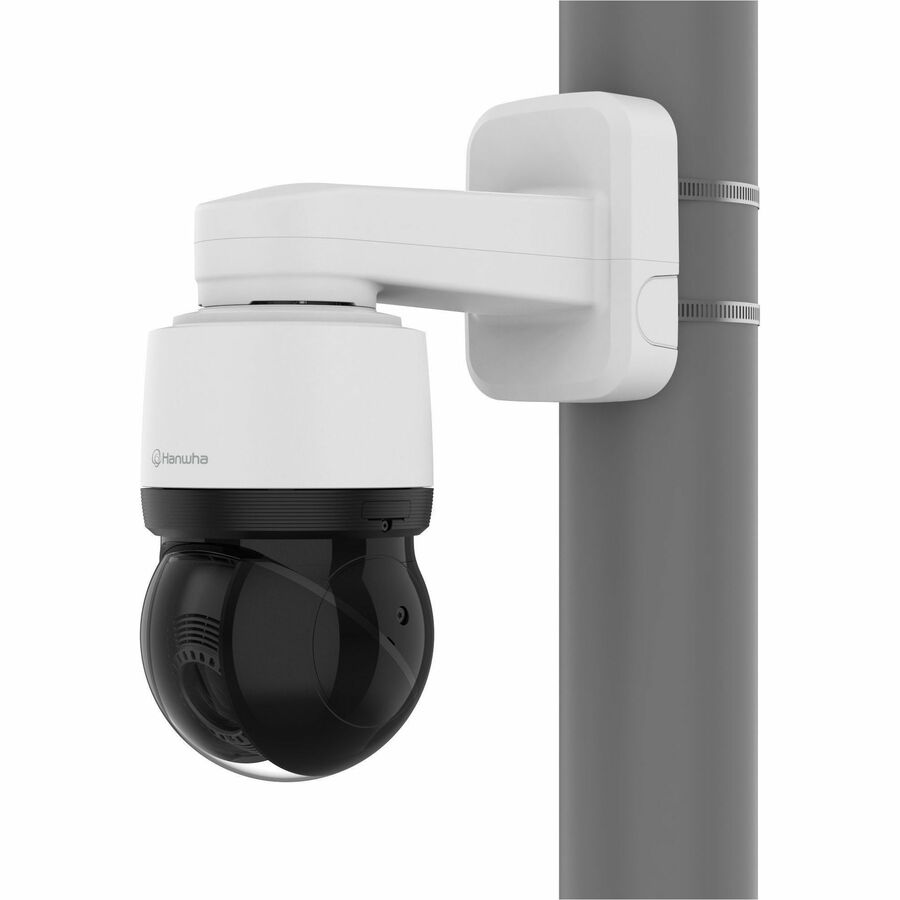

Hanwha XNP-C8253 6 Megapixel Outdoor Network Camera - Color - Dome - White, Black
SKU: 9078346
Powered by the Wisenet 7 chipset, the PTZ PLUS AI camera provides AI-based object detection and auto tracking (Person/Vehicle) with Target lock tracking.
- 6MP resolution
- 25X optical zoom (5mm ~ 125mm)
- -20° tilt look-up capability to see above the horizon
- Lens heater & spin dry for water/snow removal
- 360° endless pan
- Triple codec H.265/H.264/MJPEG
- WiseStream III technology
- extreme WDR
- Azimuth display (Cardinal & intermediate directions)
- AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
- Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), Object auto-tracking (Person/Vehicle), Target lock track
- true D/N
- DIS with Built-in Gyro sensor
- Dual Memory slots (Maximum 512GB x 2)
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
- PoE+
- TPM 2.0 with FIPS 140-2 level 2
- Optional SPM-4210 Network I/O box for alarm & audio I/O
- Operating Temperature -40°C~+55°C (-40°F ~ +131°F)
- Network camera - Helps achieve high-quality video results
- Up to 3328 x 1872 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 125 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.6 maximum aperture for reliable, detailed, and sharp output with added dependability
- 25x optical zoom for desired image clarity and maximum capturing convenience
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
- PoE+ power source type for your network camera provides optimal performance with maximum usability
- Back Light Compensation (BLC) feature for maximum efficiency and convenience
- Wired connectivity technology offers maximum visual convenience
Call for Availability
Regular price
$4,550
Shipping calculated at checkout
Powered by the Wisenet 7 chipset, the PTZ PLUS AI camera provides AI-based object detection and auto tracking (Person/Vehicle) with Target lock tracking.
- 6MP resolution
- 25X optical zoom (5mm ~ 125mm)
- -20° tilt look-up capability to see above the horizon
- Lens heater & spin dry for water/snow removal
- 360° endless pan
- Triple codec H.265/H.264/MJPEG
- WiseStream III technology
- extreme WDR
- Azimuth display (Cardinal & intermediate directions)
- AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
- Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), Object auto-tracking (Person/Vehicle), Target lock track
- true D/N
- DIS with Built-in Gyro sensor
- Dual Memory slots (Maximum 512GB x 2)
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
- PoE+
- TPM 2.0 with FIPS 140-2 level 2
- Optional SPM-4210 Network I/O box for alarm & audio I/O
- Operating Temperature -40°C~+55°C (-40°F ~ +131°F)
- Network camera - Helps achieve high-quality video results
- Up to 3328 x 1872 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 125 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.6 maximum aperture for reliable, detailed, and sharp output with added dependability
- 25x optical zoom for desired image clarity and maximum capturing convenience
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
- PoE+ power source type for your network camera provides optimal performance with maximum usability
- Back Light Compensation (BLC) feature for maximum efficiency and convenience
- Wired connectivity technology offers maximum visual convenience
Color Family:
Dual Color
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
6.2"
Effective Camera Resolution:
6 Megapixel
Ethernet Technology:
Fast Ethernet
Features:
Back Light Compensation (BLC),Highlight Compensation (HLC),Wide Dynamic Range,Motion Detection,Defog,Digital Image Stabilization,Digital Noise Reduction,Day/Night,PTZ,Alarm Triggering
Field of View:
H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1/2.8"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Outdoor
Ingress Protection Rating:
IP66
Lens Included:
Yes
Lens Type:
Varifocal
Limited Warranty:
3 Year
Longest Shutter Speed:
2 Second
Manufacturer:
Hanwha Group
Manufacturer Website Address:
http://www.hanwha.com
Maximum Aperture:
f/1.6
Maximum Focal Length:
125 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
95%
Maximum Operating Temperature:
131°F (55°C)
Maximum Video Resolution:
3328 x 1872
Minimum Aperture:
f/3.73
Minimum Focal Length:
5 mm
Minimum Operating Temperature:
-40°F (-40°C)
Network (RJ-45):
Yes
Optical Zoom:
25x
Power Source Type:
PoE+
Product Color:
White,Black
Product Model:
XNP-C8253
Product Series:
X
Product Type:
Network Camera
Protocols:
IPv4,IPv6,TCP/IP,UDP/IP,RTP,UDP,TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,PIM-SM,UPnP,Bonjour,LLDP,SRTP,NTCIP,MQTT
Remote Management:
Yes
Shortest Shutter Speed:
1/12000 Second
Storage Type:
Memory Card
Video Formats:
H.264,H.265,MJPEG,H.264M,H.264B,H.264H,H.265M,H.265B,H.265H
