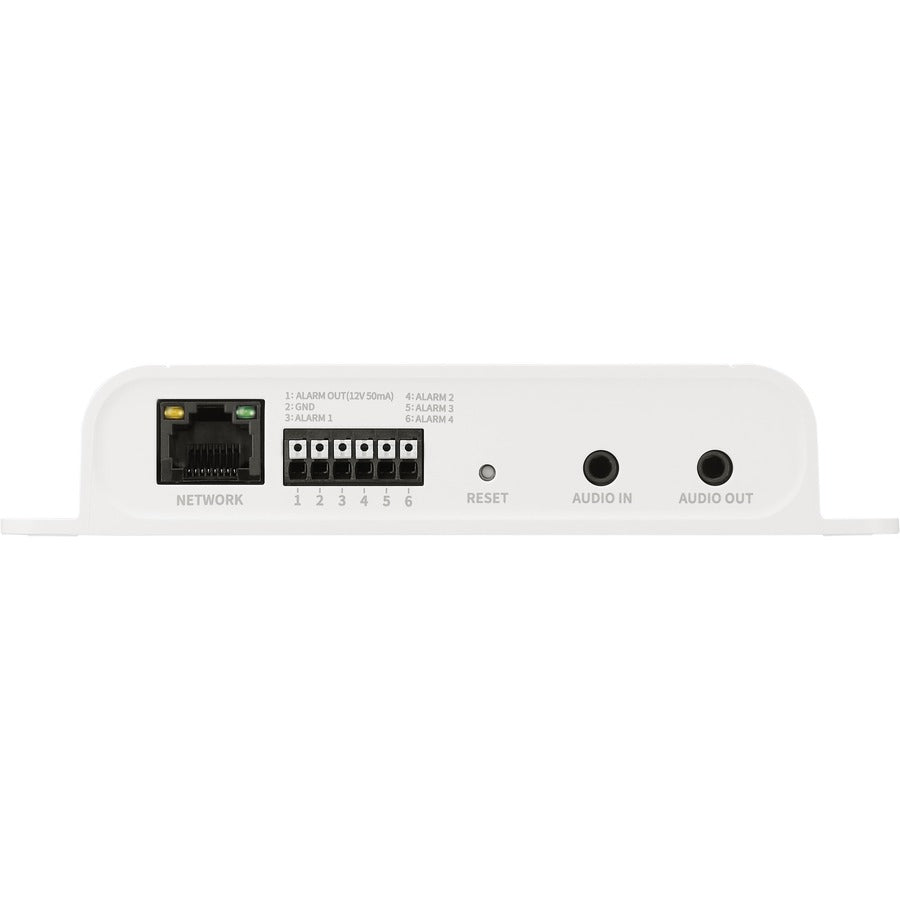

Hanwha Techwin SPM-4210 Network I/O Box
The SPM-4210 is an accessory for Wisenet PTZ Plus cameras. The Network I/O Box provides 4-configurable I/O ports & Audio I/O. It conveniently installs without requiring a direct connection to the camera. Powered by PoE. Compatible with:
XNP-9300RW / XNP-9250R / XNP-9250
XNP-8300RW / XNP-8250R / XNP-8250
XNP-6400RW / XNP-6400R / XNP-6400
- Alarm/Audio I/O Box for PTZ PLUS cameras
- 1 RJ45 port
- 4 Selectable I/O ports
- 2 Audio I/O ports (1 each)
- Power : PoE / Consumption: Maximum 4.5W
- Dimensions :143mm x 73mm x 27.3mm (5.63" x 2.87" x 1.07")
- Weight : 171g (0.38lb)
- Color : White
Call for Availability
Shipping calculated at checkout
The SPM-4210 is an accessory for Wisenet PTZ Plus cameras. The Network I/O Box provides 4-configurable I/O ports & Audio I/O. It conveniently installs without requiring a direct connection to the camera. Powered by PoE. Compatible with:
XNP-9300RW / XNP-9250R / XNP-9250
XNP-8300RW / XNP-8250R / XNP-8250
XNP-6400RW / XNP-6400R / XNP-6400
- Alarm/Audio I/O Box for PTZ PLUS cameras
- 1 RJ45 port
- 4 Selectable I/O ports
- 2 Audio I/O ports (1 each)
- Power : PoE / Consumption: Maximum 4.5W
- Dimensions :143mm x 73mm x 27.3mm (5.63" x 2.87" x 1.07")
- Weight : 171g (0.38lb)
- Color : White
- Audio In: Selectable(microphone in/line in)
- Audio Out: Line out, Maximum output level: 1Vrms
- Ethernet: RJ-45 (10/100BASE-T)
- Application Programming Interface: SUNAPI (HTTP API)
- Webpage Language: Web Viewer English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
- Web Viewer: Support, Plugin-free
- Memory: 4GB RAM, Flash 256MB
- Operating Temperature / Humidity: -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) Start up should be done at above -30°C
- Storage Temperature / Humidity: -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
- Input Voltage: PoE(IEEE802.3af, Class3)
- Power Consumption: Maximum 4.5W
- RAL Code: RAL9003
- Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, ICMP, ARP, DNS, LLDP
- Configurable 4 Ports
- 12 V DC output, maximum load 50 mA
- G.711 u-law /G.726 Selectable
- G.726(ADPCM) 8KHz, G.711 8KHz
- G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
- AAC-LC: 48Kbps at 16KHz
- HTTPS(SSL) Login Authentication
- Digest Login Authentication
- IP Address Filtering
- User access log
- 802.1X Authentication(EAP-TLS, EAP-LEAP)
- Device Certificate(Hanwha Techwin Root CA)
- 4K 30x IR XNP-9300RW
- 4K 25x IR XNP-9250R
- 4K 25x XNP-9250
- 6MP 30x IR Wiper XNP-8300RW
- 6MP 25x IR XNP-8250R
- 6MP 25x XNP-8250
- 2MP 40x XNP-6400RW
- 2MP 40x XNP-6400R
- 2MP 40x XNP-6400
