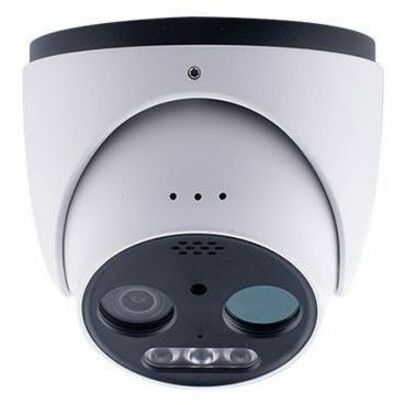

GeoVision GV-TMEB5800 5 Megapixel Indoor/Outdoor Network Camera - Color - Eyeball

SKU: 84-TMEB58W-0010

AI Deep-Learning IP Camera

GV-TMEB5800 is an AI-capable thermal camera that combines dual thermal and optical images for perimeter protection and fire prevention. The thermal camera can detect fires and measure predefined temperatures, triggering lighting and alarms. Even in low-light and harsh environments, the thermal camera with AI analytics (deep learning algorithms) detects intrusion events with very low nuisance alerts. The camera adheres to the IP66 standard, and can be powered through PoE.

GV-TMEB5800 is also a camera for active deterrence. It can deter intruders and prevent potential crime by utilizing the built-in white LED and alarm sound.

  • Network camera - Helps achieve high-quality video results
  • Up to 2592 x 1944 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 4 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/1.6 maximum aperture for productive capturing according to focal length and lighting conditions
  • Provides night vision of objects at a distance of up to 98.43 ft
  • Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
  • Fixed camera iris effectively compensates for changes in the level of light by adjusting the exposure time or using gain
  • Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
  • PoE power source type for your network camera provides optimal performance with maximum usability

Call for Availability

Regular price $833

Shipping calculated at checkout

Details

AI Deep-Learning IP Camera

GV-TMEB5800 is an AI-capable thermal camera that combines dual thermal and optical images for perimeter protection and fire prevention. The thermal camera can detect fires and measure predefined temperatures, triggering lighting and alarms. Even in low-light and harsh environments, the thermal camera with AI analytics (deep learning algorithms) detects intrusion events with very low nuisance alerts. The camera adheres to the IP66 standard, and can be powered through PoE.

GV-TMEB5800 is also a camera for active deterrence. It can deter intruders and prevent potential crime by utilizing the built-in white LED and alarm sound.

  • Network camera - Helps achieve high-quality video results
  • Up to 2592 x 1944 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 4 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/1.6 maximum aperture for productive capturing according to focal length and lighting conditions
  • Provides night vision of objects at a distance of up to 98.43 ft
  • Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
  • Fixed camera iris effectively compensates for changes in the level of light by adjusting the exposure time or using gain
  • Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
  • PoE power source type for your network camera provides optimal performance with maximum usability
Specifications
AI-powered:
Yes
Camera Iris:
Fixed
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
4.4"
Effective Camera Resolution:
5 Megapixel
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Fast Ethernet
Features:
Wide Dynamic Range,Alarm Triggering,Cross Line Detection,Built-in Microphone,Built-in Speaker,Defog,3D Digital Noise Reduction,Face Detection,Motion Detection,Privacy Masking
Field of View:
Horizontal FOV 56° / Horizontal FOV 81°
Form Factor:
Eyeball
HD Recording:
Yes
Image Sensor Size:
1/2.7"
Image Sensor Type:
CMOS
Indoor/Outdoor:
Indoor/Outdoor
Ingress Protection Rating:
IP66
Input Voltage:
12 V DC
Lens Included:
Yes
Lens Mount Type:
M12-mount
Lens Type:
Fixed
Longest Shutter Speed:
1/3 Second
Manufacturer:
GeoVision, Inc
Manufacturer Website Address:
http://www.geovision.com.tw
Maximum Aperture:
f/1.6
Maximum Focal Length:
4 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
95%
Maximum Operating Temperature:
140°F (60°C)
Maximum Power Consumption:
9 W
Maximum Thermal Focal Length:
0.13"
Maximum Video Resolution:
2592 x 1944
Minimum Operating Temperature:
-22°F (-30°C)
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
2
Number of Sensors:
2
Package Contents:
  • GV-TMEB5800 Network Camera
  • Eyeball Dome
  • Waterproof Rubber
  • Screw Kit
  • Hex Key
  • Drill Template Paster
  • Download Guide
Power Source Type:
PoE,DC
Product Model:
GV-TMEB5800
Product Type:
Network Camera
Protocols:
ONVIF,UDP,IPv4,IPv6,DHCP,NTP,RTSP,RTP,RTCP,PPPoE,DDNS,SMTP,FTP,SNMP,HTTP,802.1X,UPnP,HTTPS,QoS
Remote Management:
Yes
Shortest Shutter Speed:
1/100000 Second
Storage Type:
Memory Card
Thermal Image Sensor Type:
Vanadium Oxide Uncooled Focal Plane Detector
Thermal Video Resolution:
1280 x 720
Video Formats:
H.265,H.264,MJPEG
