Gefen Ultra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable
SKU: EXT-DP-4K600-1SC
Gefen's DisplayPort 1.2-compliant extender is a compact and high performance solution for extending HDCP 2.2, HDCP 1.4, and DPCP compliant DisplayPort 600 MHz 4K audio/video over fiber. WQUXGA (3840 x 2400), 4K Ultra HD (3840 x 2160), and 4K Cinema - DCI (4096 x 2160), up to 60 Hz frame rate and 4:4:4 Chroma sub-sampling are supported. The AV signal can be extended up to 200m (660ft), over a single strand of SC-terminated 50/125 µm OM3 or better multi-mode fiber-optic cable. There is full electrical isolation between the Sender and the Receiver, meeting the stringent safety and EMC requirements for critical applications. When used with the Gefen EXT-PS52AU-M-1.3-6-AL power supply (available separately), this extender is compliant with medical safety and EMC standards EN 60601-1 and EN 60601-1-2. The EXT-DP-4K600-1SC can be powered from sources and displays featuring powered USB ports, or by using external power supplies. For most applications, the Sender and Receiver are plug-and-play and will work without any set-up. In cases where signal optimization becomes necessary due to special requirements of a source and/or a display, both units feature easy-to-use EQ switches. The EXT-DP-4K600-1SC supports popular and useful DisplayPort technologies such as Multi-streaming (connecting multiple daisy-chained displays to one DisplayPort output) and Auxiliary Channel (transporting data and controls along with the AV signal). Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI). Applications include medical imaging, military and industrial command and control rooms, flight simulators, digital signage, gaming, and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential.
- Plug & Play - no configuration or set-up required for most applications
- Sturdy metal construction of the enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI)
- Compact enclosures are easy to install and can be hidden away
- Supports DisplayPort Multi-stream technology
- Supports DisplayPort Auxiliary/l²C channel
- HDCP 2.2, HDCP 1.4, and DPCP compliant
- Extension up to 200m (660 feet) over one (1) SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable
- Fully compliant with DisplayPort 1.2 standard
- Supports WQUXGA (4K; 3840x2400), 4K Ultra HD (3840 x 2160), and 4K Cinema - DCI (4096 x 2160) at 60Hz, 4:4:4
- Supports Full-Bandwidth 4K 60 Hz 4:4:4 (600 MHz)
Call for Availability
Regular price
$2,293.18
Sale price
$3,295.59
On Sale
Shipping calculated at checkout
Gefen's DisplayPort 1.2-compliant extender is a compact and high performance solution for extending HDCP 2.2, HDCP 1.4, and DPCP compliant DisplayPort 600 MHz 4K audio/video over fiber. WQUXGA (3840 x 2400), 4K Ultra HD (3840 x 2160), and 4K Cinema - DCI (4096 x 2160), up to 60 Hz frame rate and 4:4:4 Chroma sub-sampling are supported. The AV signal can be extended up to 200m (660ft), over a single strand of SC-terminated 50/125 µm OM3 or better multi-mode fiber-optic cable. There is full electrical isolation between the Sender and the Receiver, meeting the stringent safety and EMC requirements for critical applications. When used with the Gefen EXT-PS52AU-M-1.3-6-AL power supply (available separately), this extender is compliant with medical safety and EMC standards EN 60601-1 and EN 60601-1-2. The EXT-DP-4K600-1SC can be powered from sources and displays featuring powered USB ports, or by using external power supplies. For most applications, the Sender and Receiver are plug-and-play and will work without any set-up. In cases where signal optimization becomes necessary due to special requirements of a source and/or a display, both units feature easy-to-use EQ switches. The EXT-DP-4K600-1SC supports popular and useful DisplayPort technologies such as Multi-streaming (connecting multiple daisy-chained displays to one DisplayPort output) and Auxiliary Channel (transporting data and controls along with the AV signal). Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI). Applications include medical imaging, military and industrial command and control rooms, flight simulators, digital signage, gaming, and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential.
- Plug & Play - no configuration or set-up required for most applications
- Sturdy metal construction of the enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI)
- Compact enclosures are easy to install and can be hidden away
- Supports DisplayPort Multi-stream technology
- Supports DisplayPort Auxiliary/l²C channel
- HDCP 2.2, HDCP 1.4, and DPCP compliant
- Extension up to 200m (660 feet) over one (1) SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable
- Fully compliant with DisplayPort 1.2 standard
- Supports WQUXGA (4K; 3840x2400), 4K Ultra HD (3840 x 2160), and 4K Cinema - DCI (4096 x 2160) at 60Hz, 4:4:4
- Supports Full-Bandwidth 4K 60 Hz 4:4:4 (600 MHz)
Connectivity Technology:
Wired
DisplayPort:
Yes
Graphics Modes:
4K
Limited Warranty:
2 Year
Manufacturer:
Gefen, Inc
Manufacturer Website Address:
http://www.gefen.com
Maximum Operating Distance:
656.17 ft
Maximum Video Resolution:
4096 x 2160
Media Type Supported:
Optical Fiber
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Number of SC Ports:
2
Package Contents:

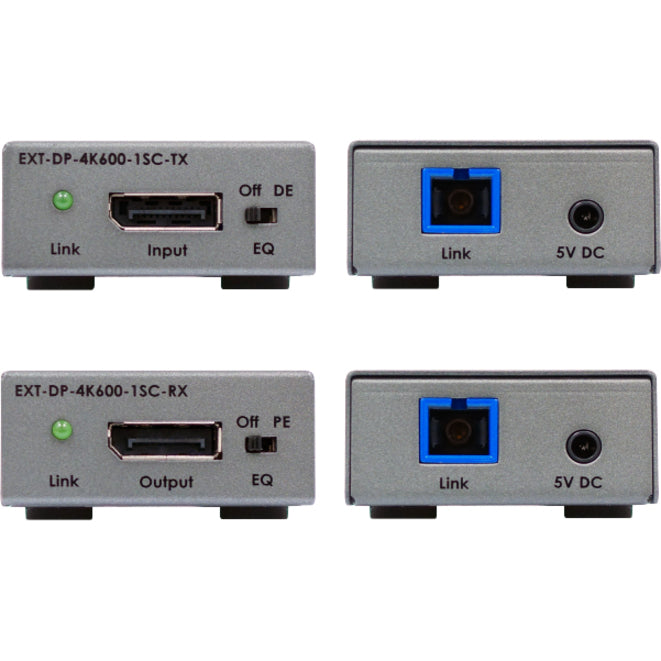

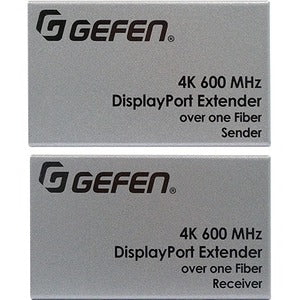

- 1 x EXT-DP-4K600-1SC-TX - Sender unit
- 1 x EXT-DP-4K600-1SC-RX - Receiver unit
- 2 x DisplayPort Male-to-Male cables, 6 feet
- 2 x USB-to-DC cables, 2.3 feet
- 2 x EXT-PS52AIP-1.3-6-AL power supplies and 2 sets of regional AC plugs (US, UK, EU, and AU)
- 1 x Quick Start Guide
Product Model:
EXT-DP-4K600-1SC
Product Type:
Video Extender Transmitter/Receiver
Transmitter Depth:
3.11"
Transmitter Height:
0.87"
Transmitter Weight (Approximate):
9.52 oz
Transmitter Width:
1.77"
