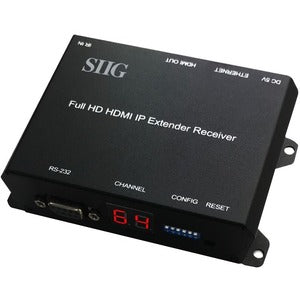

Full HD HDMI Extender over IP with PoE/RS-232 & IR - Decoder (RX)
SKU: CE-H26511-S1

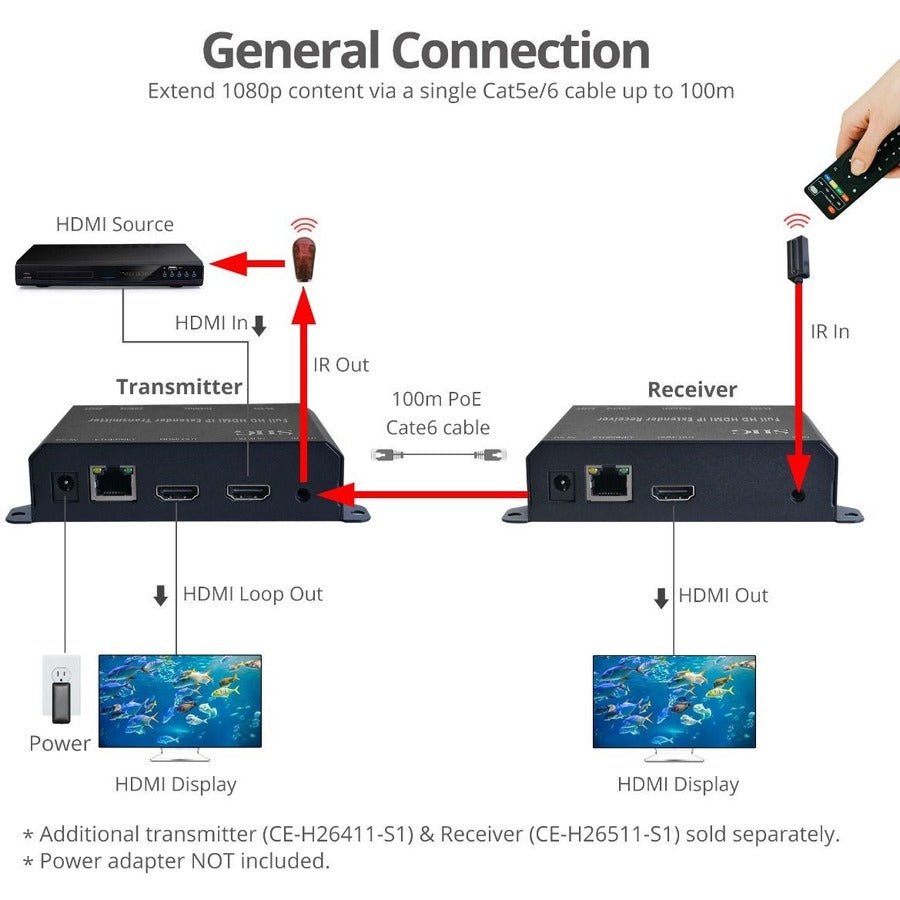

Receives HDMI signals from a remote source device over UTP CAT5e/6 cabling up to 100 meters using PoE Gigabit switches
Features
Features
- Receives HDMI signals with stereo audio from a remote HDMI source device over UTP CAT5e/6 cabling up to 100 meter. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Encoder (TX), part# CE-H26411-S1, sold separately

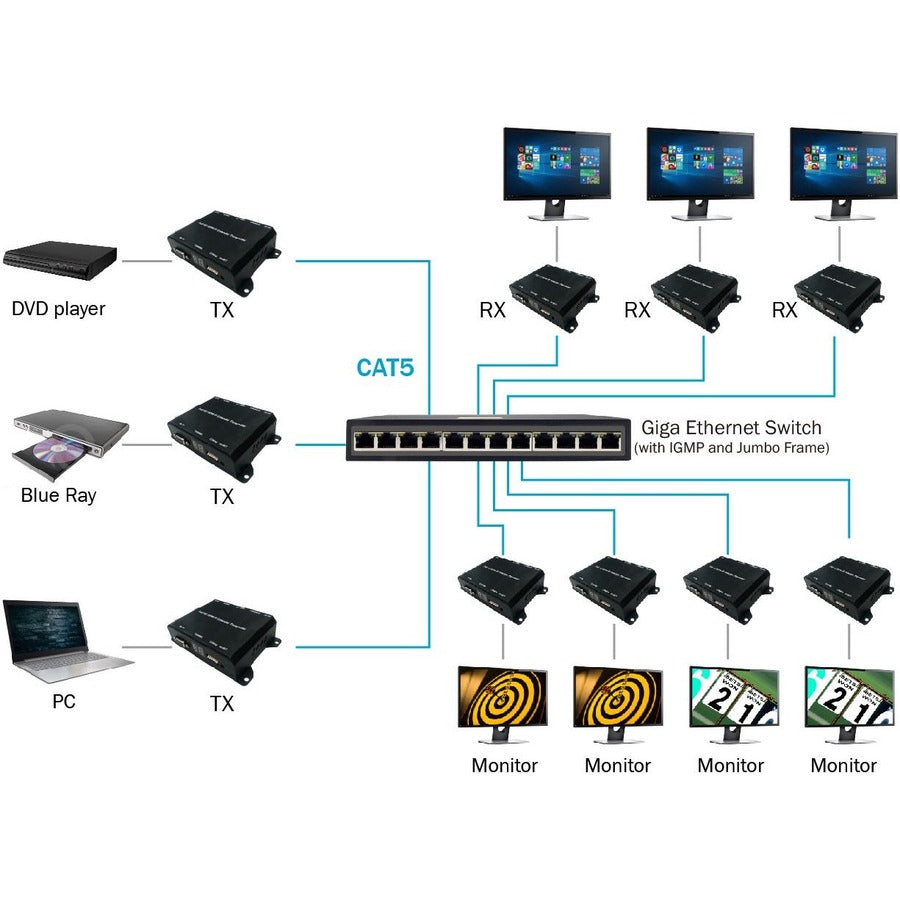

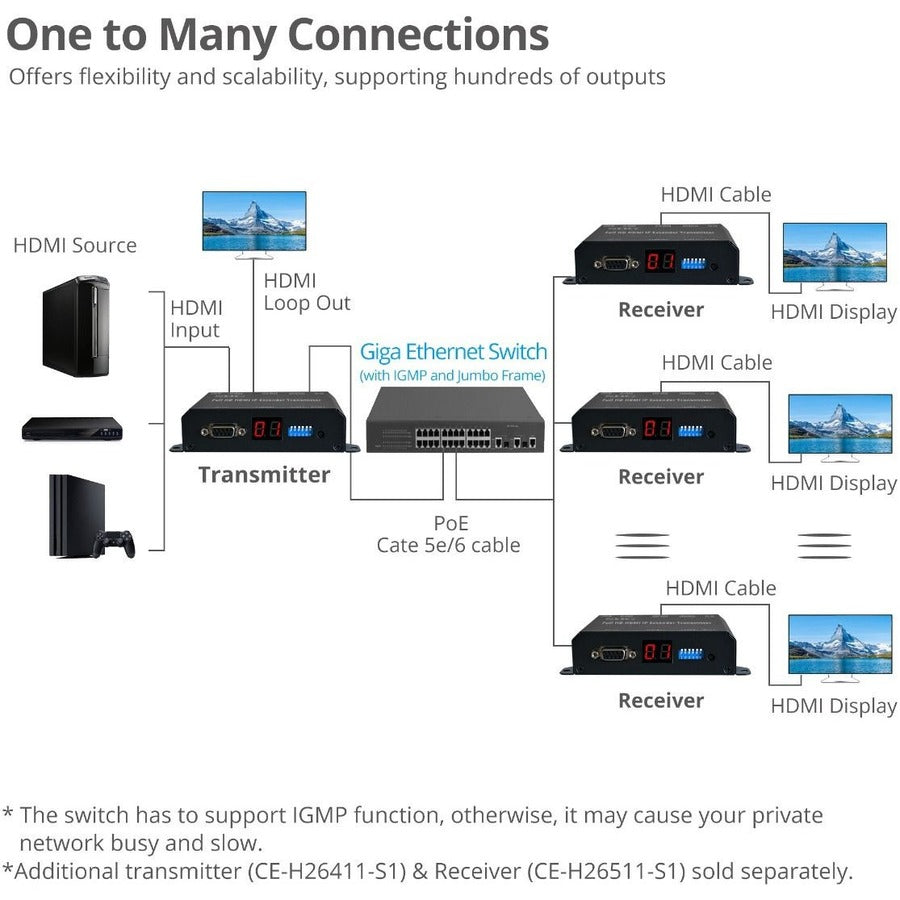

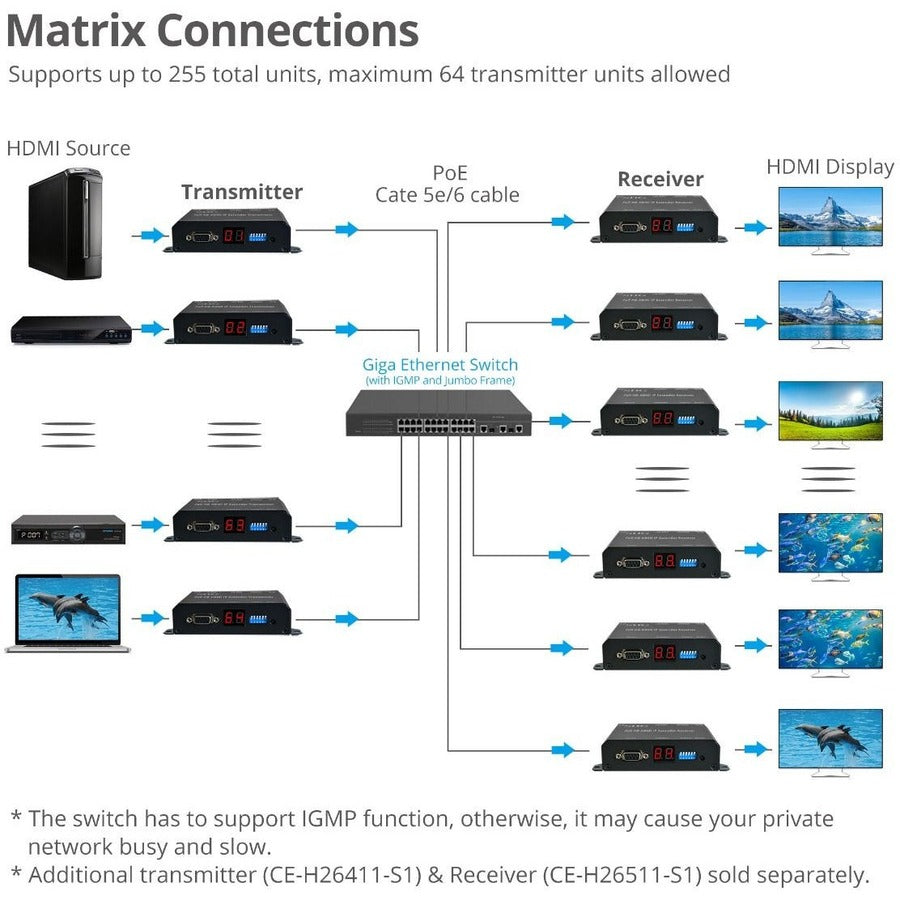

- Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 256 total units, limited to 64 transmitters. Requires additional encoder (TX)units (part# CE-H26411-S1) and decoder (RX)units (part# CE-H26511-S1) sold separately
- Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
- Power over Ethernet (PoE) powers the encoder (TXs) and decoder (RXs) over Cat cable from your PoE Gigabit Switch (purchase separately)
- Full HD 1080p video resolution delivers stunning and clear images
- IR pass back function allows you to control the source device from remote RX location
- Computer control software allows you to select and switch between source devices (Matrix only)
- Video protocol with H.264 compression over IP
- Features MP3 audio compression and stereo 192Kbps encoder/ decoder
Call for Availability
Regular price
$211.59
Shipping calculated at checkout
Receives HDMI signals from a remote source device over UTP CAT5e/6 cabling up to 100 meters using PoE Gigabit switches
Features
Features
- Receives HDMI signals with stereo audio from a remote HDMI source device over UTP CAT5e/6 cabling up to 100 meter. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Encoder (TX), part# CE-H26411-S1, sold separately
- Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 256 total units, limited to 64 transmitters. Requires additional encoder (TX)units (part# CE-H26411-S1) and decoder (RX)units (part# CE-H26511-S1) sold separately
- Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
- Power over Ethernet (PoE) powers the encoder (TXs) and decoder (RXs) over Cat cable from your PoE Gigabit Switch (purchase separately)
- Full HD 1080p video resolution delivers stunning and clear images
- IR pass back function allows you to control the source device from remote RX location
- Computer control software allows you to select and switch between source devices (Matrix only)
- Video protocol with H.264 compression over IP
- Features MP3 audio compression and stereo 192Kbps encoder/ decoder
Connectivity Technology:
Wired
Country of Origin:
China
Device Type:
KVM Extender
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Graphic Mode:
Full HD
HDMI:
Yes
Limited Warranty:
2 Year
Manufacturer:
SIIG, Inc
Manufacturer Website Address:
http://www.siig.com
Maximum Operating Distance:
328.08 ft
Maximum Video Resolution:
1920 x 1080
Network (RJ-45):
Yes
Number of Computers Supported:
1
Number of HDMI Ports:
1
Number of Network (RJ-45) Ports:
1

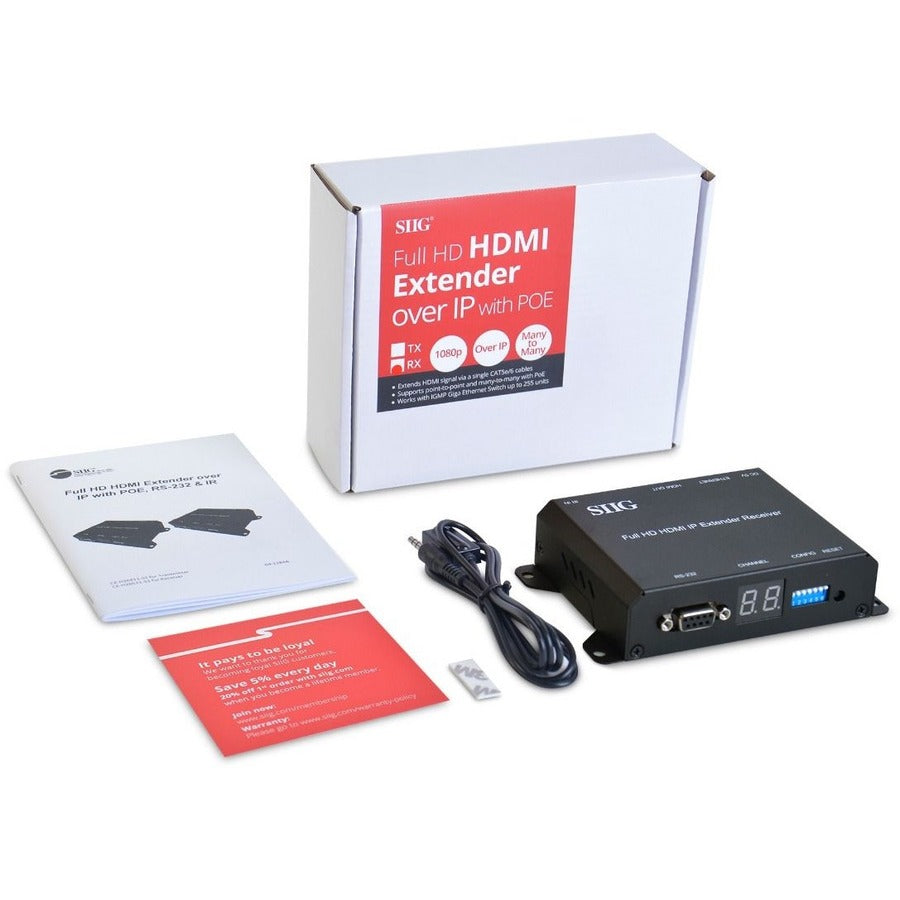

Package Contents:

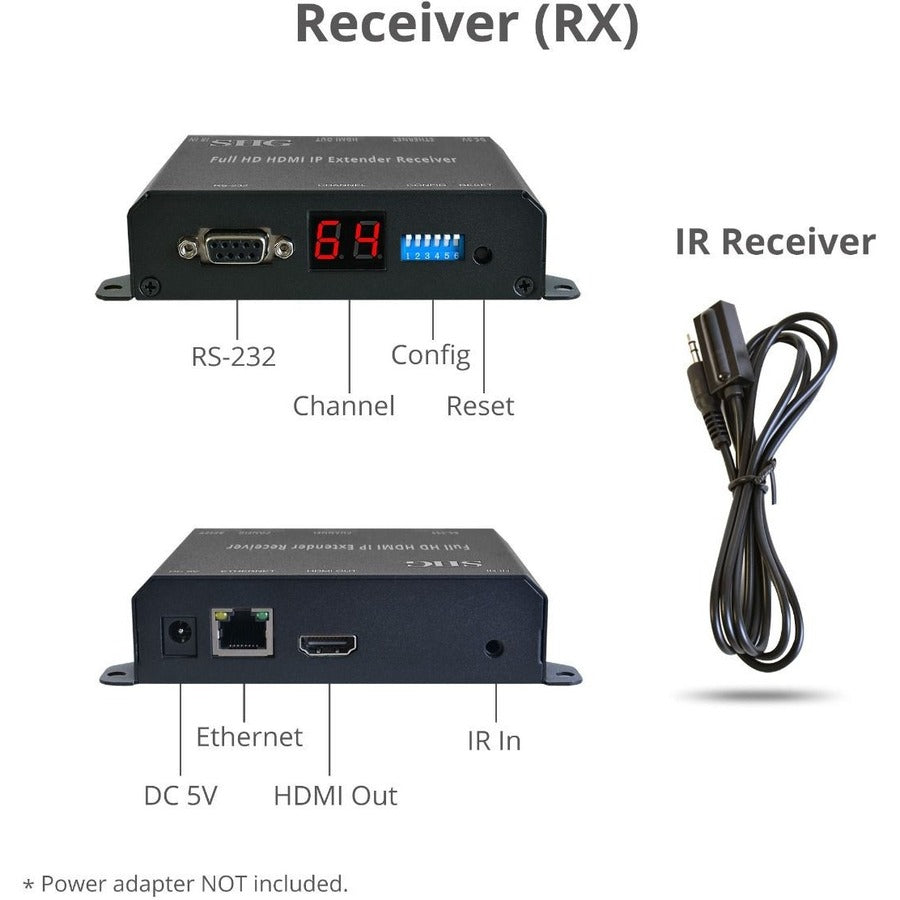

- Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver
- 1 x IR Receiver cable
- Quick Start Guide
Product Color:
Black
Product Type:
KVM Extender Receiver
Receiver Depth:
1.19"
Receiver Height:
3.23"
Receiver Weight (Approximate):
10.24 oz
Receiver Width:
5.12"
