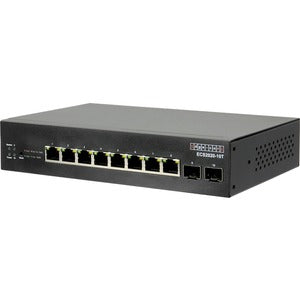

Edge-Core ECS2020-10T Ethernet Switch
SKU: ECS2020-10T
The ECS2020 Series is Edgecore's latest generation cost-effective web-smart switch solution.
The ECS2020 is designed for SMB and enterprise markets and provides a complete solution from 10/28-ports, including both non-PoE and PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv4 and IPv6 management and features ensures your network can upgrade from IPv4 to IPv6.
The ECS2020 Series offers complete PoE solutions from 70 W to 190 W. All the switches are rack mountable. The ECS2020-10P is a fanless design PoE switch that supports up to 4 ports at 15.4 W, or 2 ports at 30 W to meet the increasing power demands of users. The ECS2020-28P delivers a default 190 W of PoE power to support future IP cameras, IP telephones, or access points.
The ECS2020 is designed for SMB and enterprise markets and provides a complete solution from 10/28-ports, including both non-PoE and PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv4 and IPv6 management and features ensures your network can upgrade from IPv4 to IPv6.
The ECS2020 Series offers complete PoE solutions from 70 W to 190 W. All the switches are rack mountable. The ECS2020-10P is a fanless design PoE switch that supports up to 4 ports at 15.4 W, or 2 ports at 30 W to meet the increasing power demands of users. The ECS2020-28P delivers a default 190 W of PoE power to support future IP cameras, IP telephones, or access points.
- 0�C to 50�C
- Voice/Surveillance VLAN
- IGMP/MLD Snooping
- 4K VLANs
- 8-Queue QoS
- IPv4/IPv6
- DDOS protection
- CPU guard
- Dual configuration
- Standard MIB/Private MIB
Call for Availability
Regular price
$214.86
Sale price
$249.99
On Sale
Shipping calculated at checkout
The ECS2020 Series is Edgecore's latest generation cost-effective web-smart switch solution.
The ECS2020 is designed for SMB and enterprise markets and provides a complete solution from 10/28-ports, including both non-PoE and PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv4 and IPv6 management and features ensures your network can upgrade from IPv4 to IPv6.
The ECS2020 Series offers complete PoE solutions from 70 W to 190 W. All the switches are rack mountable. The ECS2020-10P is a fanless design PoE switch that supports up to 4 ports at 15.4 W, or 2 ports at 30 W to meet the increasing power demands of users. The ECS2020-28P delivers a default 190 W of PoE power to support future IP cameras, IP telephones, or access points.
The ECS2020 is designed for SMB and enterprise markets and provides a complete solution from 10/28-ports, including both non-PoE and PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv4 and IPv6 management and features ensures your network can upgrade from IPv4 to IPv6.
The ECS2020 Series offers complete PoE solutions from 70 W to 190 W. All the switches are rack mountable. The ECS2020-10P is a fanless design PoE switch that supports up to 4 ports at 15.4 W, or 2 ports at 30 W to meet the increasing power demands of users. The ECS2020-28P delivers a default 190 W of PoE power to support future IP cameras, IP telephones, or access points.
- 0�C to 50�C
- Voice/Surveillance VLAN
- IGMP/MLD Snooping
- 4K VLANs
- 8-Queue QoS
- IPv4/IPv6
- DDOS protection
- CPU guard
- Dual configuration
- Standard MIB/Private MIB
Ethernet Technology:
Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Form Factor:
Rack-mountable
Layer Supported:
3
Limited Warranty:
2 Year
Manufacturer:
Edge-Core Networks Corporation
Manufacturer Website Address:
http://www.edge-core.com
Media Type Supported:
Optical Fiber,Twisted Pair
Modular:
Yes
Networking Standards:
IEEE 802.3az,IEEE 802.1x,IEEE 802.1w,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-T,1000Base-SX/LX/LHX/ZX
Number of SFP Slots:
2
PoE (RJ-45) Port:
No
Port/Expansion Slot Details:
8 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot
Power Consumption:
10.90 W
Power Source:
Power Supply
Product Model:
ECS2020-10T
Product Series:
ECS2020
Product Type:
Ethernet Switch
Total Number of Expansion Slots:
2.0
Total Number of Network Ports:
8
Uplink Port:
Yes
