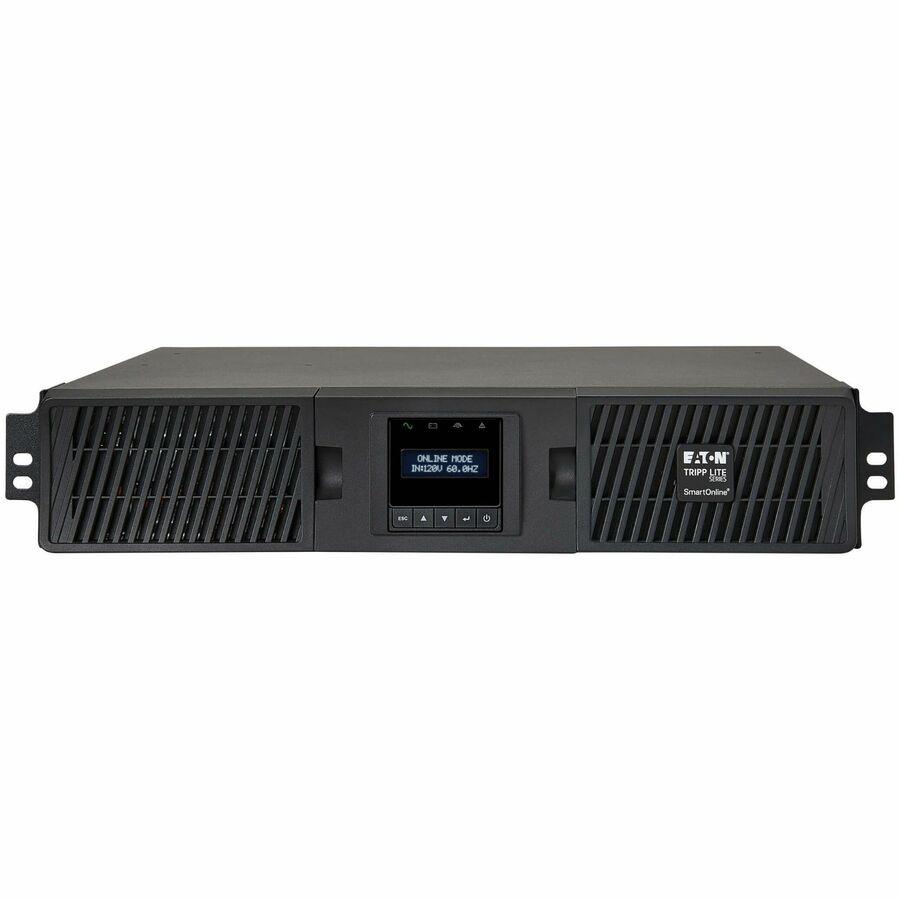

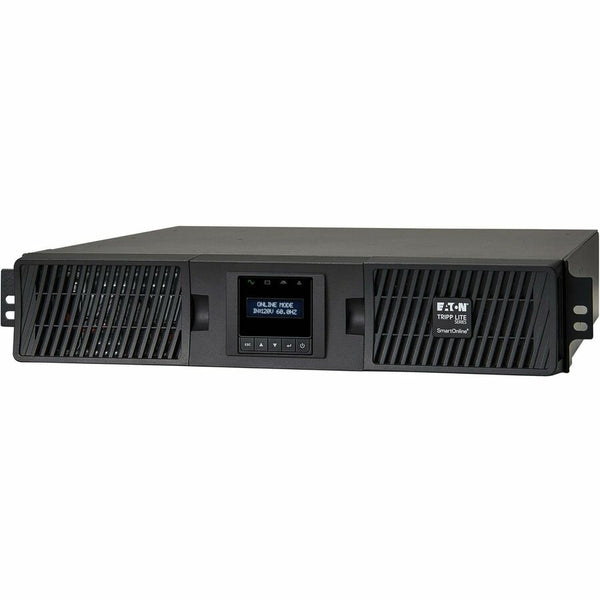

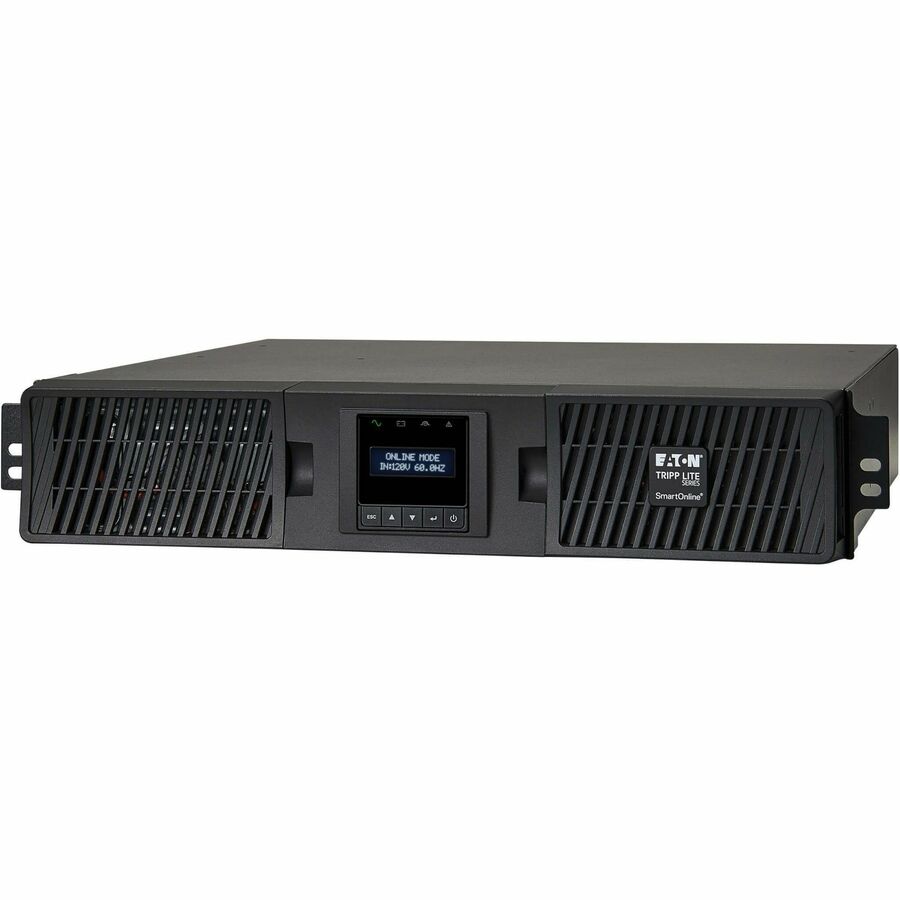

Eaton Tripp Lite Series SmartOnline 1000VA 900W 120V Double-Conversion Sine Wave UPS - 8 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower

SKU: SU1000RTXLCD2U
Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for optional network management card option. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.

More from the Manufacturer

  • Energy Star Qualified
  • Interactive LCD with 9 selectable screens of UPS and site power data
  • Expandable runtime, Hot-swap batteries, 12.5 in / 31.8cm depth
  • 1000VA / 1kVA / 900W on-line double-conversion 2U rack / tower UPS
  • 100/110/120/127V 50/60Hz output; High efficiency economy mode option

Only 2 in stock

Regular price $1,716

Shipping calculated at checkout

Details
Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for optional network management card option. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.

More from the Manufacturer

  • Energy Star Qualified
  • Interactive LCD with 9 selectable screens of UPS and site power data
  • Expandable runtime, Hot-swap batteries, 12.5 in / 31.8cm depth
  • 1000VA / 1kVA / 900W on-line double-conversion 2U rack / tower UPS
  • 100/110/120/127V 50/60Hz output; High efficiency economy mode option
Specifications
Backup/Run Time (Full Load):
4.80 Minute
Backup/Run Time (Half Load):
14 Minute
Country of Origin:
Philippines
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Form Factor:
Rack/Tower
Hot Swappable:
Yes
Input Voltage:
110 V AC
Limited Warranty:
2 Year
Load Capacity (VA):
1000 VA
Load Capacity (Watt):
900 W
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Network Management:
SNMP Manageable
Output Voltage:
127 V AC,110 V AC,120 V AC,115 V AC
Package Contents:
  • SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS
  • PowerAlert UPS Monitoring Software CD
  • USB Cable
  • Serial Cable
  • EPO Cable
  • 4 Post Rackmount Installation Kit
  • Instruction Manual
Plug/Connector Type:
NEMA 5-15P
Product Line:
SmartOnline
Product Model:
SU1000RTXLCD2U
Product Type:
Double Conversion Online UPS
Rack Height:
2U
Receptacle Detail:
6 x NEMA 5-15R
Receptacle Type:
NEMA 5-15R
Serial Port:
Yes
Software Included:
PowerAlert UPS Monitoring Software
Transfer Time:
0 ns
Typical Battery Recharge Time:
3 Hour
USB:
Yes
