Eaton Tripp Lite Series NetDirector 16-Port 1U Rack-Mount IP KVM Switch, TAA
SKU: B022-U16-IP
The B022-U16-IP NetDirector® 16-Port 1U Rack-Mount IP KVM Switch is the smart solution for controlling up to 16 computers or servers from one monitor, keyboard and mouse, all from the next room, next door, or the next continent. The B022-U16-IP takes up just 1U of rack space and works with all major operating systems. Built-in IP access allows you to control computers via LAN, WAN or the Internet. Just log on to a Web browser using the Windows- or Java-based browser client, and navigate the user-friendly interface in English, Spanish, French, German or Japanese. You can also access the KVM Switch without a browser if you prefer. The advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 @ 60 Hz with 24-bit color depth at the remote console. Panel Array Mode allows you to remotely monitor multiple ports at the same time. Compatible with both USB and PS/2 connections using the included cable kits, the KVM Switch allows you to select a connected computer using on-console pushbuttons or keyboard hotkey commands. It also supports both IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol. Advanced encryption technologies, such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES, keep your important data secure. The KVM Switch supports RADIUS and LDAP/S remote authentication. Three levels of security allow you to delegate proper access to approved personnel, and you can create up to 64 separate accounts.
- Space-saving 1U rack-mount installation
- Enables up to 64 secure user accounts
- Compatible with both USB and PS/2 connections
- Works with all major operating systems
- Built-in IP access from anywhere in the world
Call for Availability
Regular price
$1,799
Shipping calculated at checkout
The B022-U16-IP NetDirector® 16-Port 1U Rack-Mount IP KVM Switch is the smart solution for controlling up to 16 computers or servers from one monitor, keyboard and mouse, all from the next room, next door, or the next continent. The B022-U16-IP takes up just 1U of rack space and works with all major operating systems. Built-in IP access allows you to control computers via LAN, WAN or the Internet. Just log on to a Web browser using the Windows- or Java-based browser client, and navigate the user-friendly interface in English, Spanish, French, German or Japanese. You can also access the KVM Switch without a browser if you prefer. The advanced on-screen display (OSD) supports high-definition video up to 2048 x 1536 at the local console and up to 1600 x 1200 @ 60 Hz with 24-bit color depth at the remote console. Panel Array Mode allows you to remotely monitor multiple ports at the same time. Compatible with both USB and PS/2 connections using the included cable kits, the KVM Switch allows you to select a connected computer using on-console pushbuttons or keyboard hotkey commands. It also supports both IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol. Advanced encryption technologies, such as 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES, keep your important data secure. The KVM Switch supports RADIUS and LDAP/S remote authentication. Three levels of security allow you to delegate proper access to approved personnel, and you can create up to 64 separate accounts.
- Space-saving 1U rack-mount installation
- Enables up to 64 secure user accounts
- Compatible with both USB and PS/2 connections
- Works with all major operating systems
- Built-in IP access from anywhere in the world
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Form Factor:
Rack-mountable
Limited Warranty:
3 Year
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Maximum Video Resolution:
2048 x 1536
Network (RJ-45):
Yes
Number of Computers Supported:
16
Number of Local Users Supported:
1
Number of Network (RJ-45) Ports:
1
Number of Remote Users Supported:
1
Number of USB Ports:
1

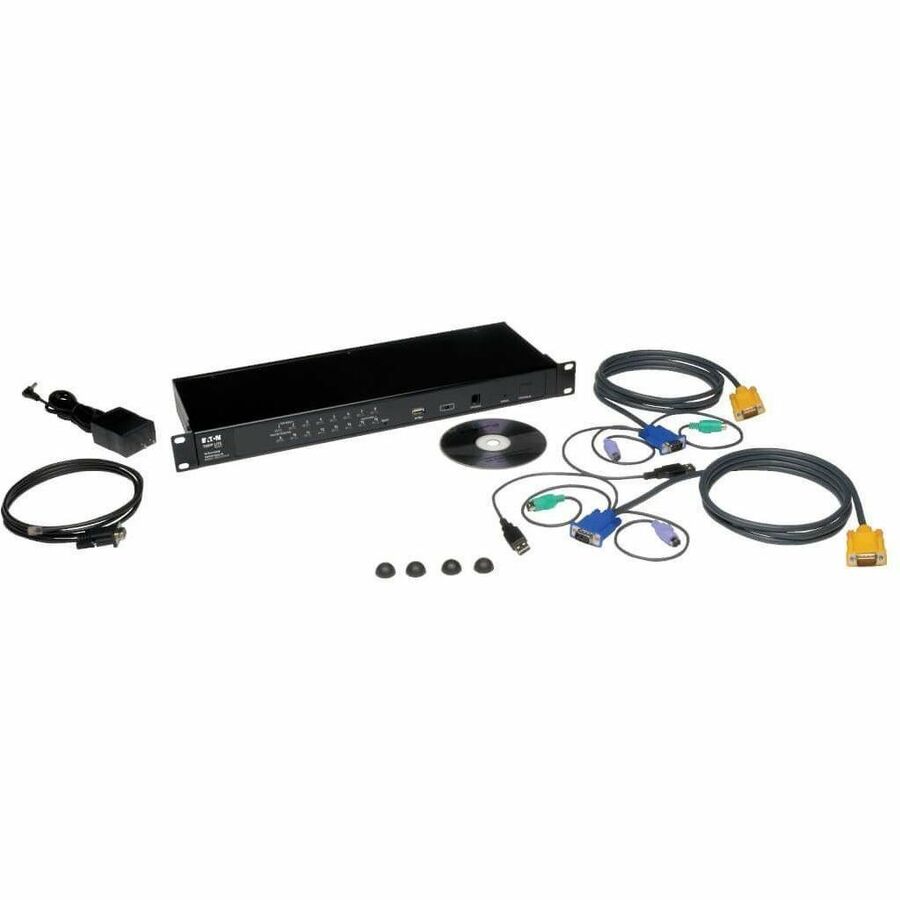

Package Contents:
- NetDirector 16-Port 1U Rack-Mount IP KVM Switch
- 2 x USB/PS2 Combo KVM Cable Kits, 6-Ft. Length
- USB/PS2 COmbo Console Cable Kit
- RJ11-to-DB9 Firmware Upgrade Cable
- Mounting Hardware
- External Power Supply
- Rubber Feet
- CD with Owner'S Manual And Device Files
- Quick Start Guide
Product Line:
NetDirector
Product Model:
B022-U16-IP
Product Type:
KVM Switchbox
Rack Height:
1U
TAA Compliant:
Yes
USB:
Yes
