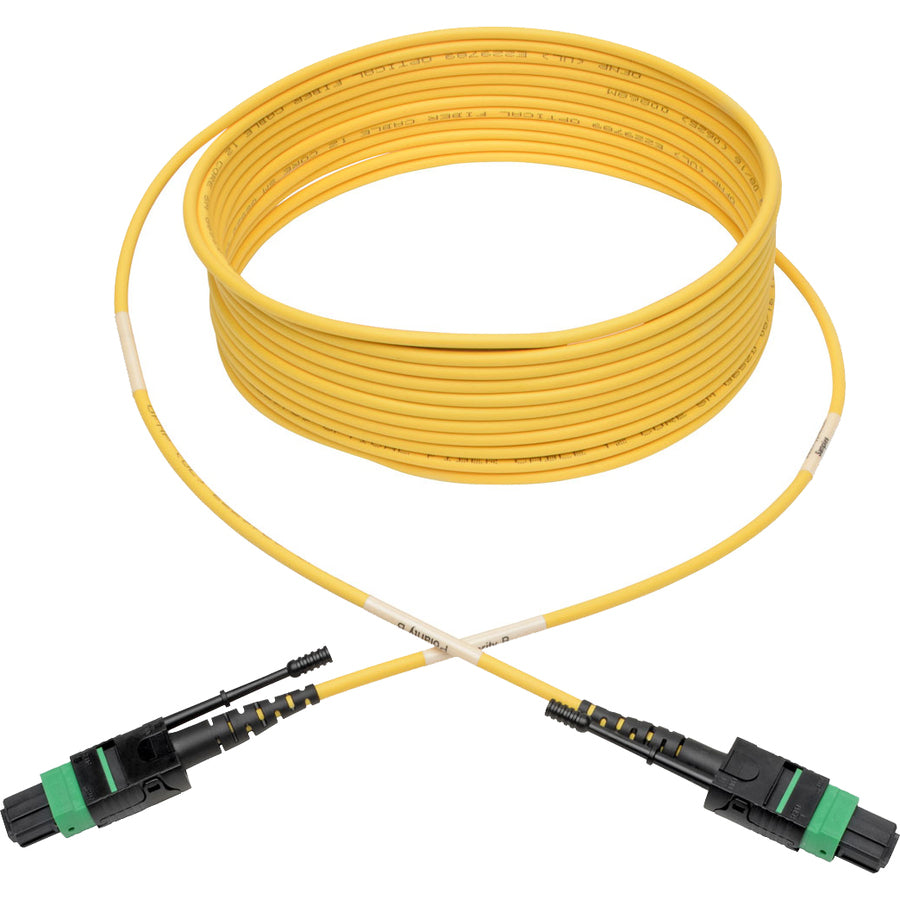

Eaton Tripp Lite Series MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow, 7 m (23 ft.)
SKU: N390-07M-12-AP
The N390-07M-12-AP MTP/MPO Singlemode Patch Cable (F/F) supports 40/100 Gb Ethernet speeds and is designed for QSFP+ applications in enterprise installations in wiring closets, telecom rooms and data centers. With two female MTP/MPO connectors, this singlemode fiber optic cable with plenum-rated jacket is recommended for connecting switches, hubs, routers and other high-speed network components in ceilings, walls and ducts.

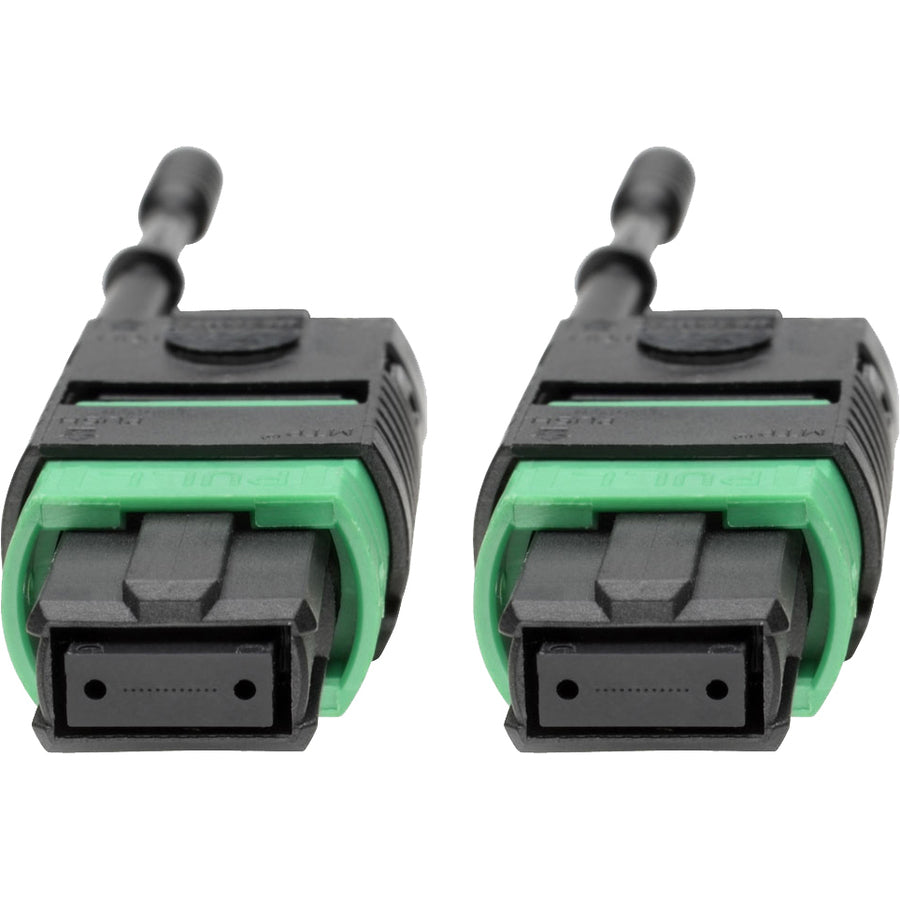

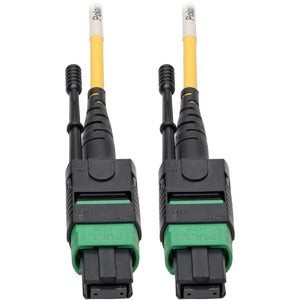

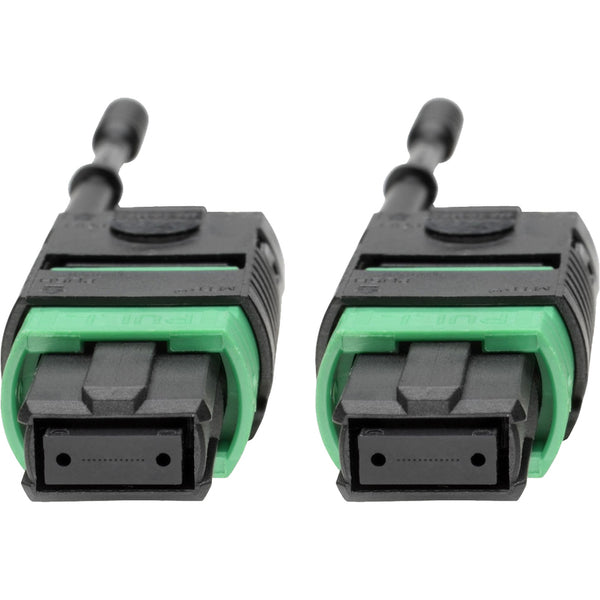

The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-07M-12-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.

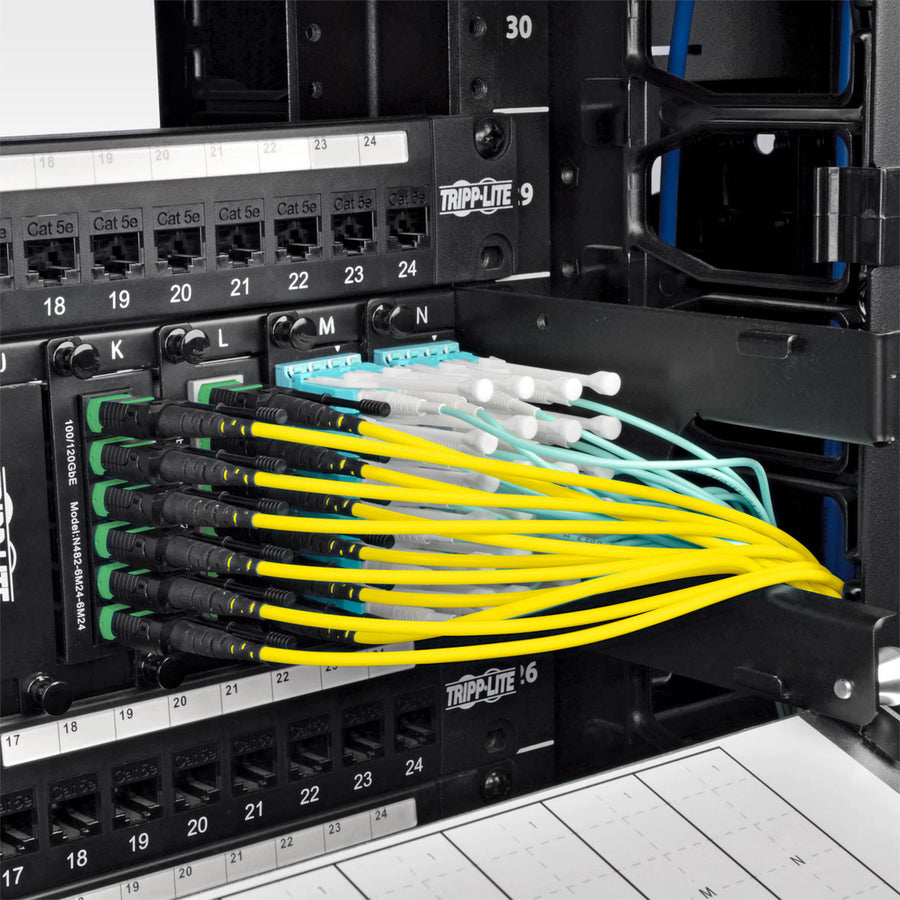

The N390-07M-12-AP is colored yellow for instant identification in a crowded switch or patch panel as a singlemode cable. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-07M-12-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.
The N390-07M-12-AP is colored yellow for instant identification in a crowded switch or patch panel as a singlemode cable. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
- Yellow color for easy singlemode identification
- Angled APC connectors protect laser against destabilization
- 100% tested for low insertion loss and back reflection
- 12-fiber MTP/MPO connectors with 12x density of SC connectors

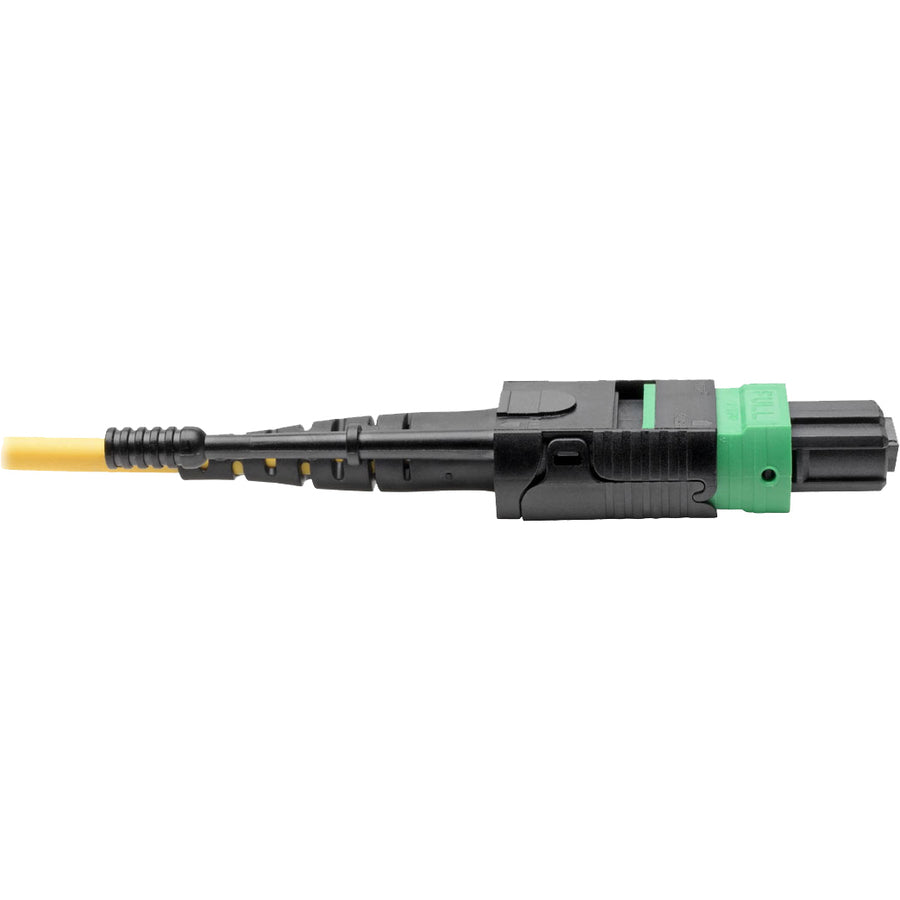

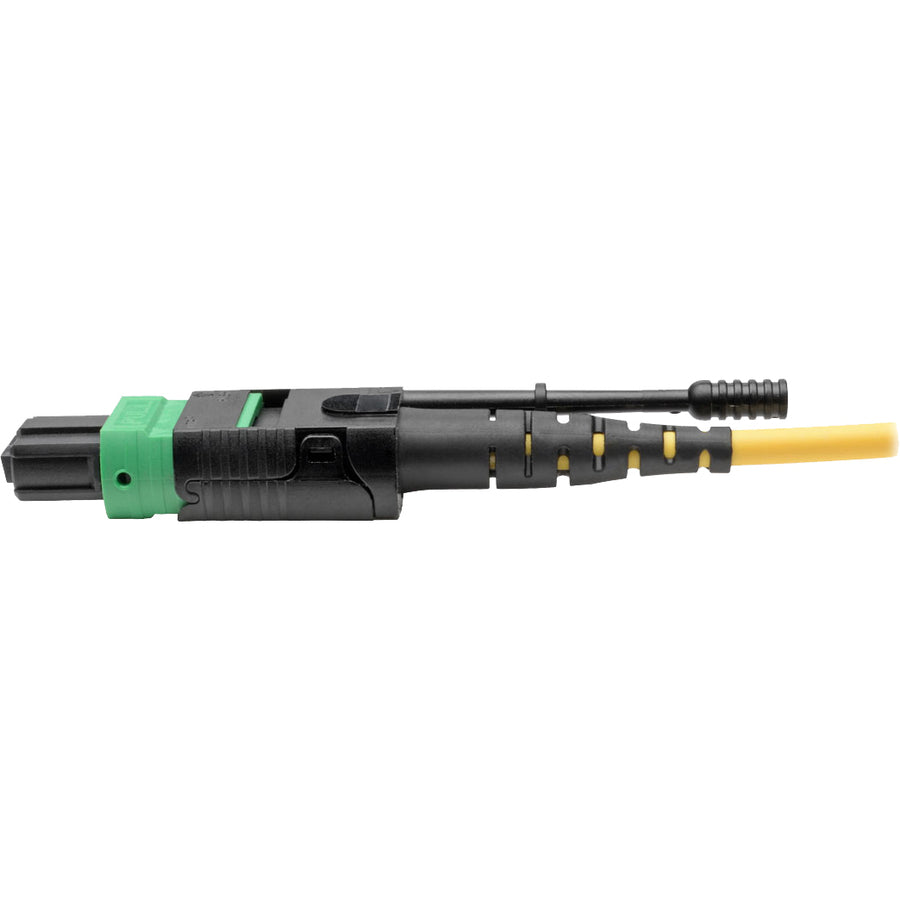

- Push/pull tab connectors easily install/remove with one hand
Call for Availability
Regular price
$376.68
Shipping calculated at checkout
The N390-07M-12-AP MTP/MPO Singlemode Patch Cable (F/F) supports 40/100 Gb Ethernet speeds and is designed for QSFP+ applications in enterprise installations in wiring closets, telecom rooms and data centers. With two female MTP/MPO connectors, this singlemode fiber optic cable with plenum-rated jacket is recommended for connecting switches, hubs, routers and other high-speed network components in ceilings, walls and ducts.
The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-07M-12-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.
The N390-07M-12-AP is colored yellow for instant identification in a crowded switch or patch panel as a singlemode cable. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser. The N390-07M-12-AP is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.
The N390-07M-12-AP is colored yellow for instant identification in a crowded switch or patch panel as a singlemode cable. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand.
- Yellow color for easy singlemode identification
- Angled APC connectors protect laser against destabilization
- 100% tested for low insertion loss and back reflection
- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- Push/pull tab connectors easily install/remove with one hand
Cable Characteristic:
Patch Cable
Cable Length:
23 ft
Cable Type:
Fiber Optic
Color Family:
Yellow
Connector on First End Details:
1 x MTP/MPO Network - Female
Connector on Second End Details:
1 x MTP/MPO Network - Female
Connector Type on First End:
MTP/MPO Network - Female
Connector Type on Second End:
MTP/MPO Network - Female
Country of Origin:
China
Data Transfer Rate:
100 Gbit/s
Device Supported:
Network Device,Switch,Hub,Router,Patch Panel
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Angled Connector
Fiber Optic Cable Core/Cladding Specification:
8.3/125 µm
Fiber Optic Mode:
Single-mode
Limited Warranty:
Lifetime
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Product Color:
Yellow
Product Model:
N390-07M-12-AP
Product Type:
Network Cable
