Eaton Tripp Lite Series Mini DisplayPort 1.2 to VGA Active Adapter Cable (M/M), 6 ft. (1.8 m), TAA

SKU: P586-006-VGA-V2

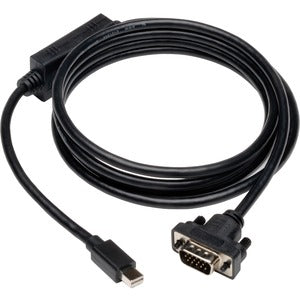

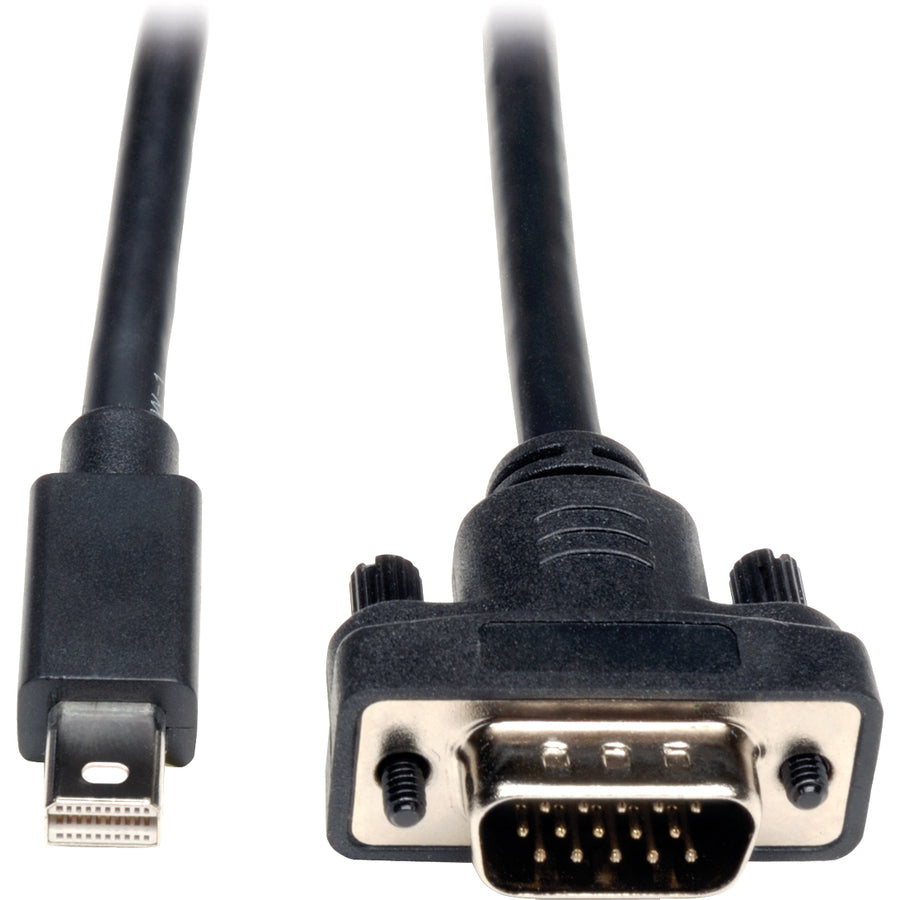

The P586-006-VGA-V2 Mini DisplayPort 1.2 to VGA Active Adapter Cable with inline signal converter connects a Mini DisplayPort (or Thunderbolt) computer to the VGA port on a monitor, projector or television. With a Mini DisplayPort male connector on one end and an HD15 male connector on the other, this cable requires no separate adapter. It features a low profile VGA connector that fits neatly into the available monitor space, without jamming between the wall and the back of the display or impeding neighboring connectors. It lets you use your existing VGA display instead of buying a new Mini DisplayPort monitor.Ideal for displaying video on a large monitor or digital sign, this cable supports computer video resolutions up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) Mini DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals.First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Nickel-plated connectors with gold-plated contacts ensure excellent conductivity. Integral strain relief ensures the cable and molded connectors last a long time.

More from the Manufacturer

  • Nickel-plated connectors with gold-plated contact
  • No separate adapter required
  • Supports HD video resolution up to 1920 x 1080 (1080p)
  • Supports computer video resolution up to 1920 x 1200
  • Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
  • Active adapter cable for use with any Mini Displayport (or Thunderbolt) port

Call for Availability

Regular price $51

Shipping calculated at checkout

Details
The P586-006-VGA-V2 Mini DisplayPort 1.2 to VGA Active Adapter Cable with inline signal converter connects a Mini DisplayPort (or Thunderbolt) computer to the VGA port on a monitor, projector or television. With a Mini DisplayPort male connector on one end and an HD15 male connector on the other, this cable requires no separate adapter. It features a low profile VGA connector that fits neatly into the available monitor space, without jamming between the wall and the back of the display or impeding neighboring connectors. It lets you use your existing VGA display instead of buying a new Mini DisplayPort monitor.Ideal for displaying video on a large monitor or digital sign, this cable supports computer video resolutions up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) Mini DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals.First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Nickel-plated connectors with gold-plated contacts ensure excellent conductivity. Integral strain relief ensures the cable and molded connectors last a long time.

More from the Manufacturer

  • Nickel-plated connectors with gold-plated contact
  • No separate adapter required
  • Supports HD video resolution up to 1920 x 1080 (1080p)
  • Supports computer video resolution up to 1920 x 1200
  • Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
  • Active adapter cable for use with any Mini Displayport (or Thunderbolt) port
Specifications
Cable Length:
6 ft
Cable Type:
DisplayPort/VGA
Color Family:
Black
Connector on First End Details:
1 x 15-pin HD-15 - Male
Connector on Second End Details:
1 x Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating:
Nickel
Connector Type on First End:
HD-15 - Male
Connector Type on Second End:
Mini DisplayPort 1.2 Digital Audio/Video - Male
Contact Plating:
Gold
Country of Origin:
Taiwan
Device Supported:
Video Device,Monitor,Projector,TV,Graphics Card
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Active,Eyefinity Technology,EMI/RF Protection,Strain Relief,Molded
Limited Warranty:
3 Year
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Product Color:
Black
Product Model:
P586-006-VGA-V2
Product Type:
Video Cable
Shielding:
Yes
Supported Resolution:
1920 x 1200
