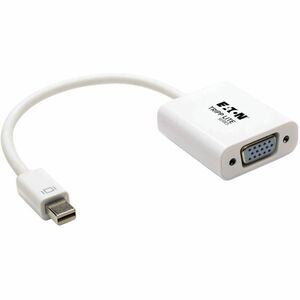

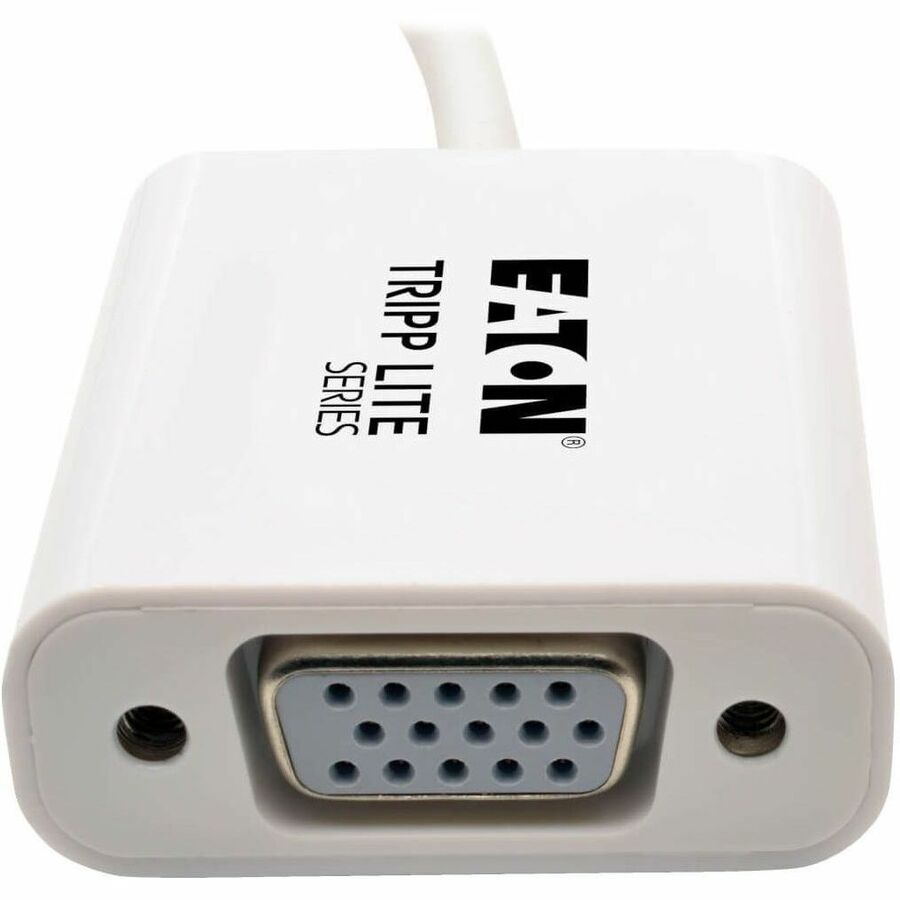

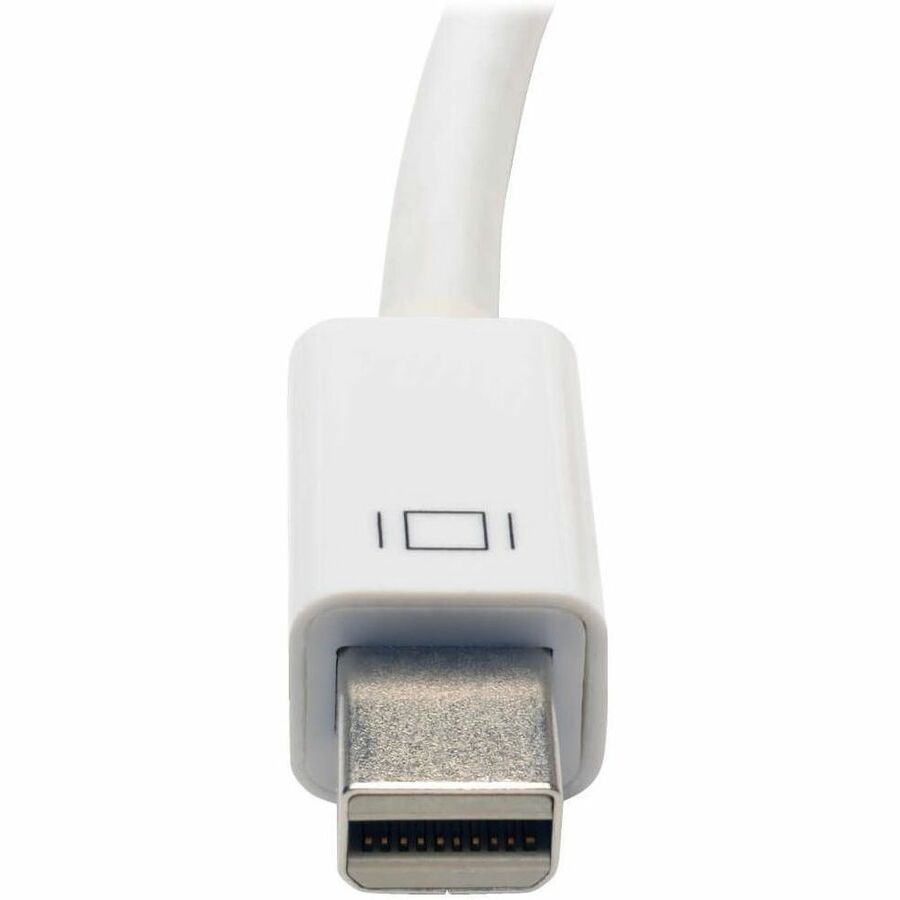

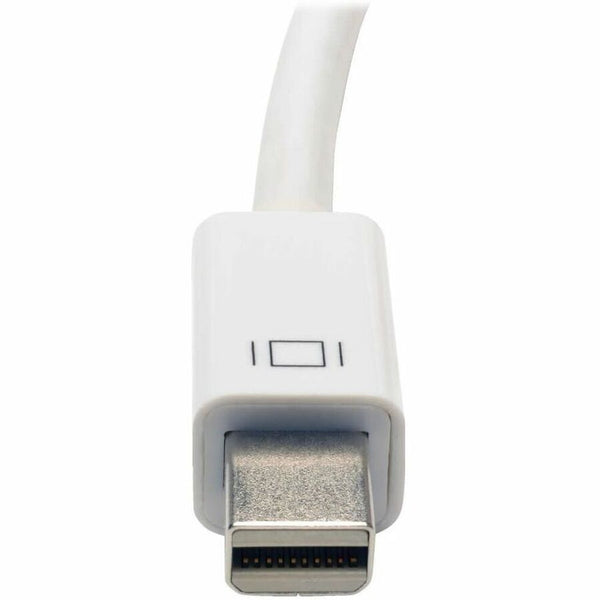

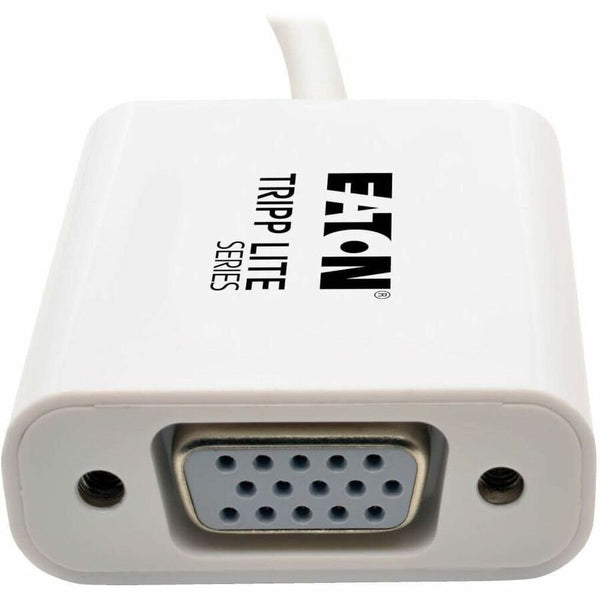

Eaton Tripp Lite Series Keyspan Mini DisplayPort to Active VGA Adapter, Video Converter, DP1.2, (M/F), White, 6-in. (15.24 cm)
SKU: P137-06N-VGA-V2
Tripp Lite's P137-06N-VGA-V2 Mini-DisplayPort v1.2 to VGA Active Adapter Converter allows you to connect a computer with a Mini-DisplayPort or Thunderbolt™ connection to a VGA monitor. Ideal for Thunderbolt™ /Mini DisplayPort equipped laptops, Chromebooks, MacBooks and Microsoft Surface. Mac 10.11, Windows 10 Compatible. DisplayPort v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Supports VGA computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p. Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort output. It is ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals.
- Converts both Single-Mode and Dual Mode (DP++) Displayport output
- Ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals
- Plug-and-play convenience; no drivers or software needed
- Connect a VGA monitor to a computer with a Mini-DisplayPort output
- Mini-DisplayPort v1.2 to VGA Active Adapter Converter (Mini-DisplayPort Male to VGA Female)
Call for Availability
Regular price
$44.75
Shipping calculated at checkout
Tripp Lite's P137-06N-VGA-V2 Mini-DisplayPort v1.2 to VGA Active Adapter Converter allows you to connect a computer with a Mini-DisplayPort or Thunderbolt™ connection to a VGA monitor. Ideal for Thunderbolt™ /Mini DisplayPort equipped laptops, Chromebooks, MacBooks and Microsoft Surface. Mac 10.11, Windows 10 Compatible. DisplayPort v1.2 doubles the previous version bandwidth of 8.64 Gbps to 17.28 Gbps in High Bit Rate (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth. Supports VGA computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p. Unlike passive adapters, Active adapters convert both Single-Mode and Dual Mode (DP++) DisplayPort output. It is ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals.
- Converts both Single-Mode and Dual Mode (DP++) Displayport output
- Ideal for use with graphics cards, such as AMD Eyefinity, that do not output Dual Mode (DP++) signals
- Plug-and-play convenience; no drivers or software needed
- Connect a VGA monitor to a computer with a Mini-DisplayPort output
- Mini-DisplayPort v1.2 to VGA Active Adapter Converter (Mini-DisplayPort Male to VGA Female)
Cable Length:
6"
Cable Type:
DisplayPort/VGA
Color Family:
Black
Connector on First End Details:
1 x Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details:
1 x 15-pin HD-15 - Female
Connector Type on First End:
Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End:
HD-15 - Female
Country of Origin:
China
Data Transfer Rate:
17.3 Gbit/s
Device Supported:
Monitor,Computer
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Limited Warranty:
3 Year
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Product Color:
Black
Product Model:
P137-06N-VGA-V2
Product Type:
A/V Cable
Supported Resolution:
1920 x 1080
