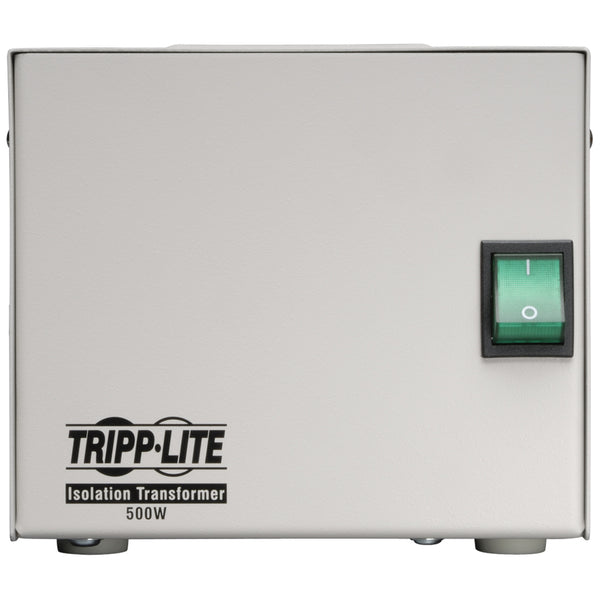

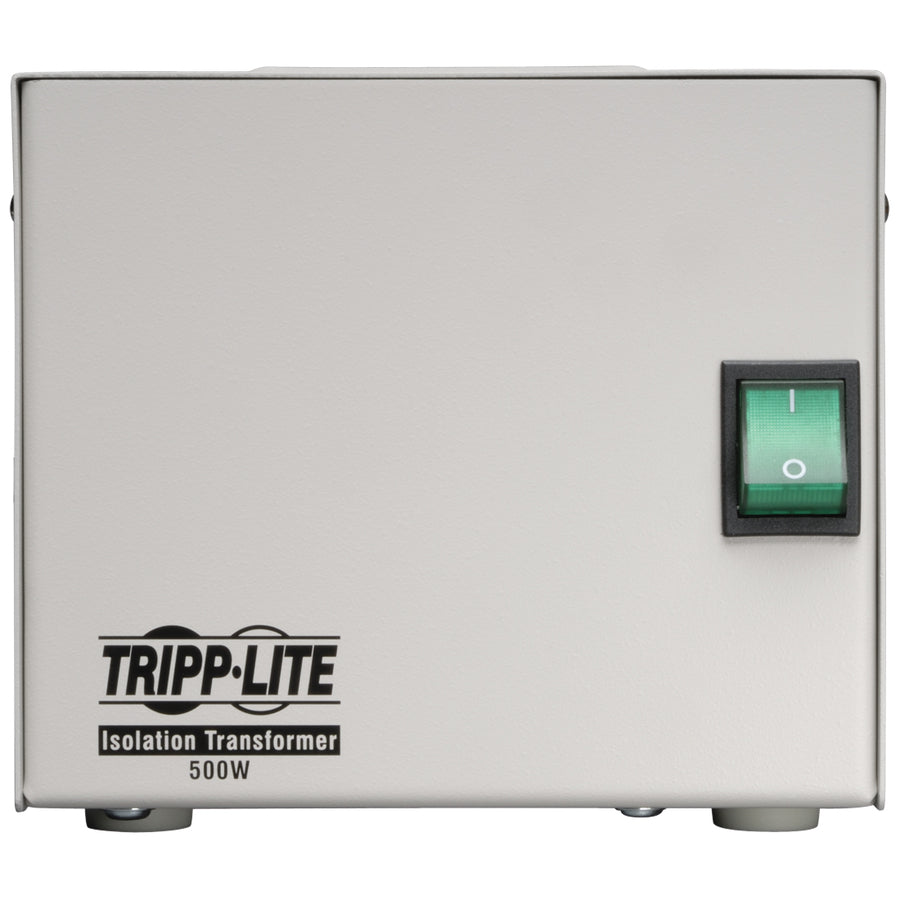

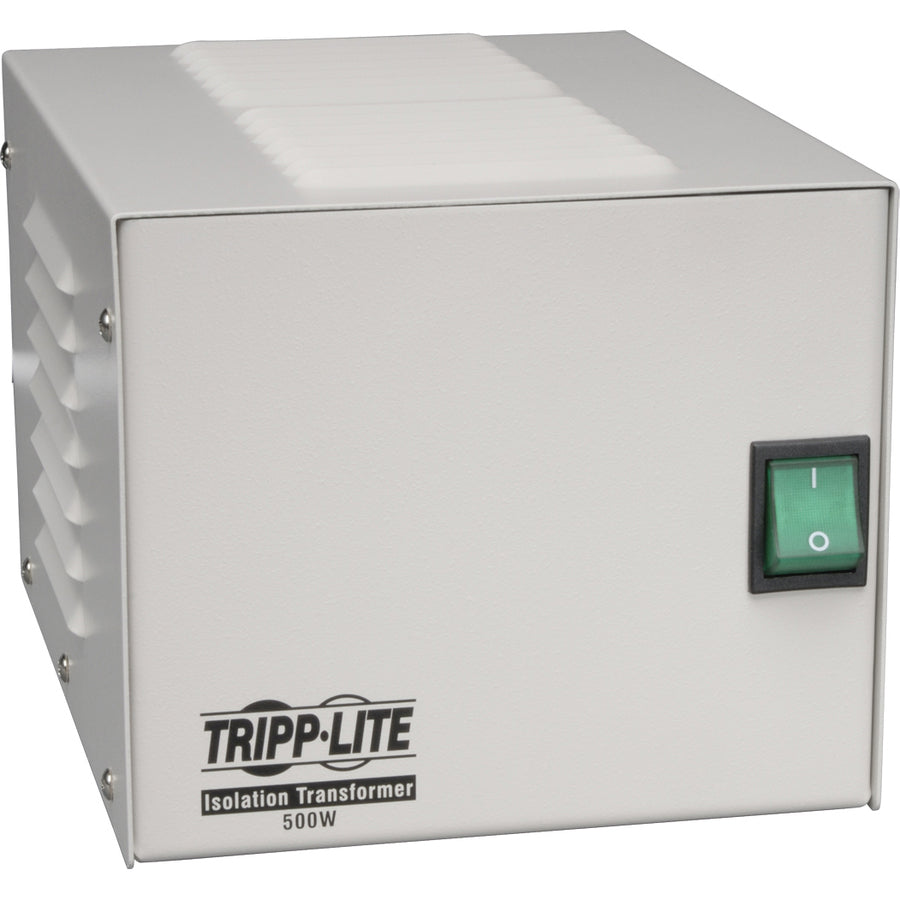

Eaton Tripp Lite Series Isolator Series 120V 500W UL 60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets, TAA
SKU: IS500HG
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Leakage current less than 100 micoramps

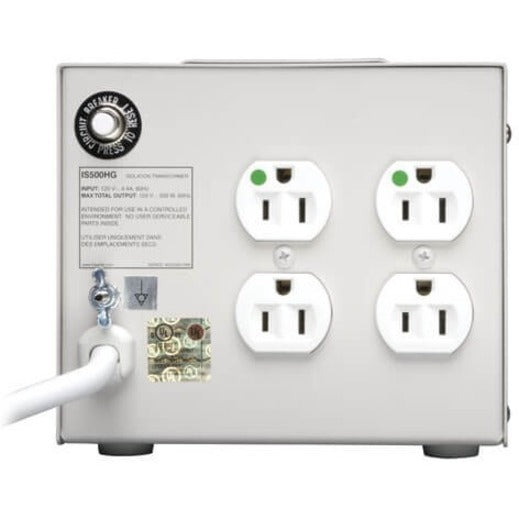

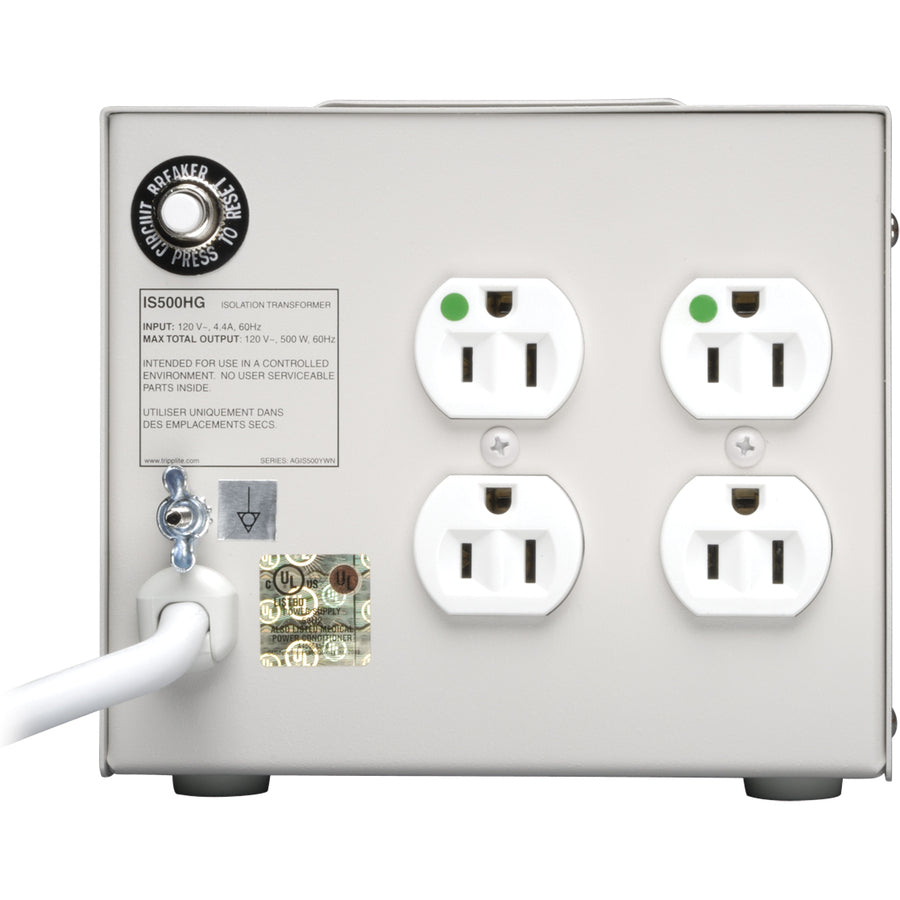

- Hospital-grade plug and receptacles
- 500 watts, 4 outlets, 10-ft. power cord
- Complete line isolation, noise filtering and surge suppression; ideal for sensitive equipment
Only 2 in stock
Regular price
$618.80
Shipping calculated at checkout
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Leakage current less than 100 micoramps
- Hospital-grade plug and receptacles
- 500 watts, 4 outlets, 10-ft. power cord
- Complete line isolation, noise filtering and surge suppression; ideal for sensitive equipment
Country of Origin:
Taiwan
Input Voltage:
120 V AC
Limited Warranty:
2 Year
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Output Voltage:
120 V AC
Package Contents:
- IS500HG Isolation Transformer
- Instruction manual with warranty information

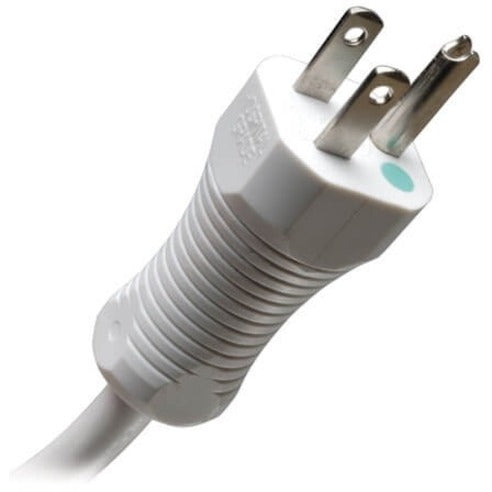

Plug/Connector Type:
NEMA 5-15P
Power Cord/Cable Length:
10 ft
Product Line:
Yes
Product Type:
Surge Suppressor/Protector
Receptacles:
4 x NEMA 5-15R
Surge Energy Rating:
680 J
TAA Compliant:
Yes
