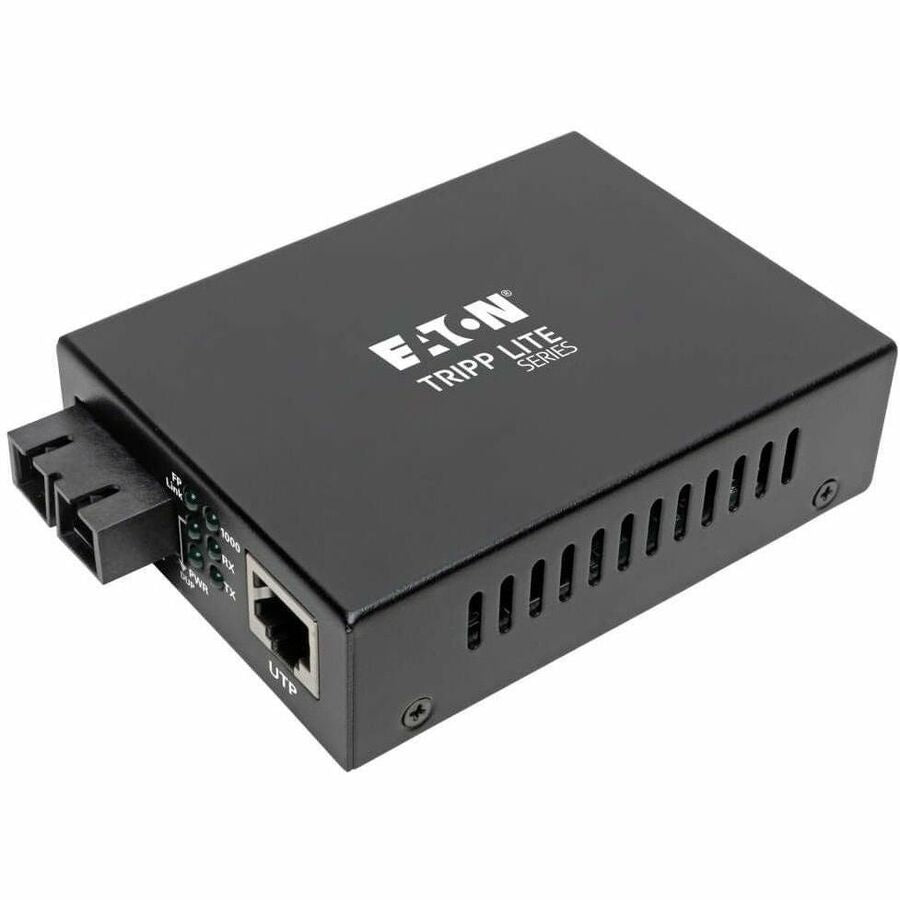

Eaton Tripp Lite Series Gigabit Singlemode Fiber to Ethernet Media Converter, SC, 1310 nm, 20 km (12.4 mi.)
SKU: N785-INT-SC-SM
Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable.

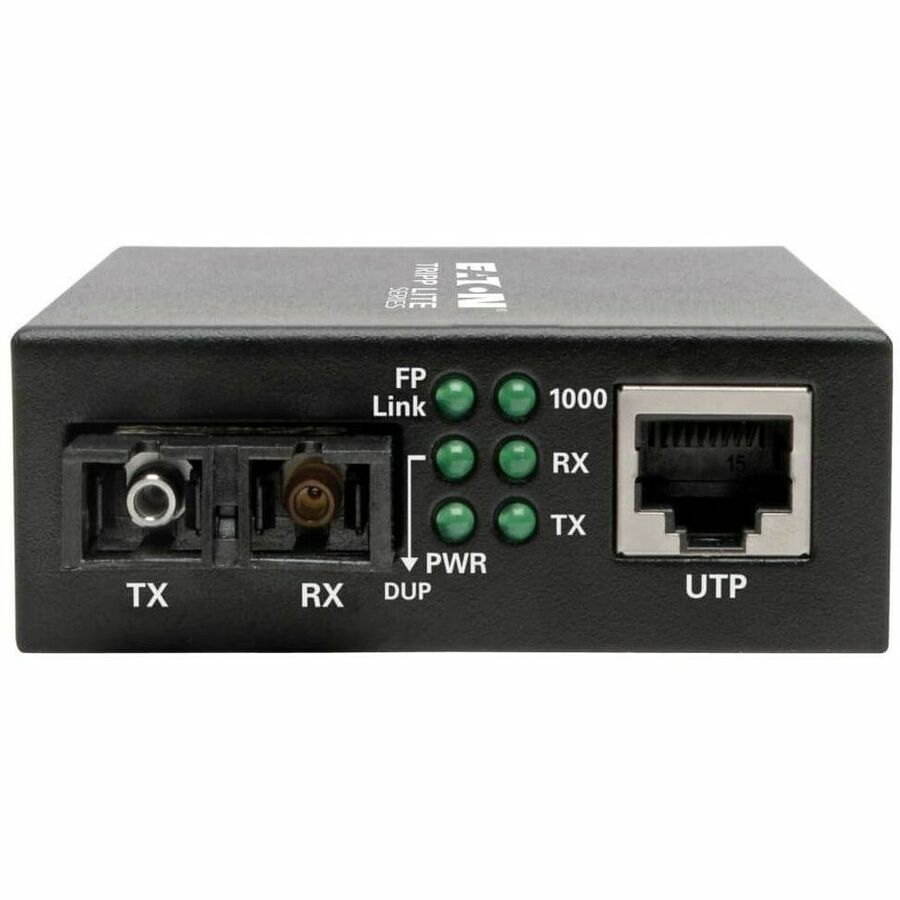

Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber CableThis economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building Supports Auto-Sensing of Network Speed and Other Advanced FunctionsMonitoring and controlling your network nodes is easy with the N785-INT-SC-SM's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance Supports Singlemode Fiber Cable with SC ConnectorsTwo N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as Tripp Lite's N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see Tripp Lite's N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch Completely Plug-and-Play with No Additional Software Required for ConnectionThe compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included- 2-year limited warranty
- Supports both full- and half-duplex operation
- Includes North America, U.K., Europe and Australia plug adapters
- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports singlemode fiber optic cable with SC connectors
- Extends your copper Gigabit Ethernet network past the standard 100 m limit
- Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable
10 in stock
Regular price
$227.76
Shipping calculated at checkout
Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable.
Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber CableThis economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building Supports Auto-Sensing of Network Speed and Other Advanced FunctionsMonitoring and controlling your network nodes is easy with the N785-INT-SC-SM's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance Supports Singlemode Fiber Cable with SC ConnectorsTwo N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as Tripp Lite's N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see Tripp Lite's N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch Completely Plug-and-Play with No Additional Software Required for ConnectionThe compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included- 2-year limited warranty
- Supports both full- and half-duplex operation
- Includes North America, U.K., Europe and Australia plug adapters
- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports singlemode fiber optic cable with SC connectors
- Extends your copper Gigabit Ethernet network past the standard 100 m limit
- Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet
Fiber Mode Supported:
Single-mode
Fiber Optic Cable Wavelength:
1310 nm
Limited Warranty:
2 Year
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Maximum Distance Supported:
20 km
Media Type Supported:
Optical Fiber,Twisted Pair
Network (RJ-45):
Yes
Network Technology:
1000Base-T,1000Base-X
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1

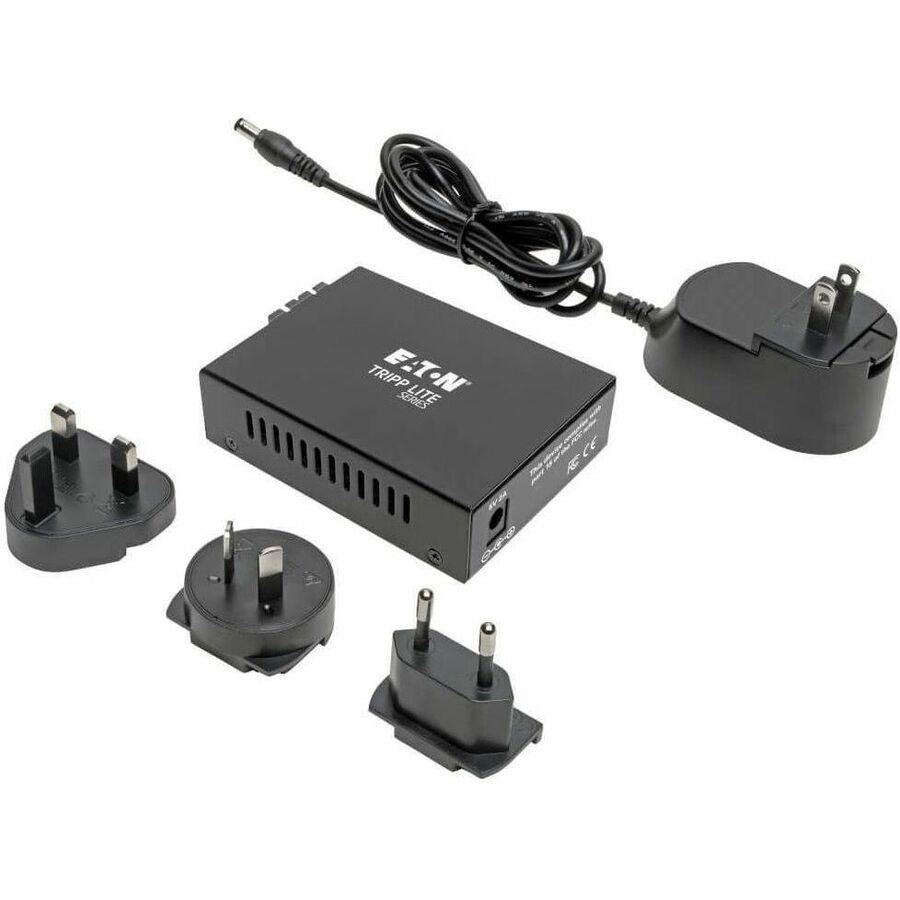

Package Contents:
- N785-INT-SC-SM Transceiver/Media Converter
- International Power Supply (Input: 100-240V)
- 4 x International Plug Adapters (North America, U.K., Europe, Australia)
- Owner's Manual
Power Source:
Power Supply
Product Model:
N785-INT-SC-SM
Product Type:
Transceiver/Media Converter
SC Port Type:
Duplex
Total Number of Ports:
2
