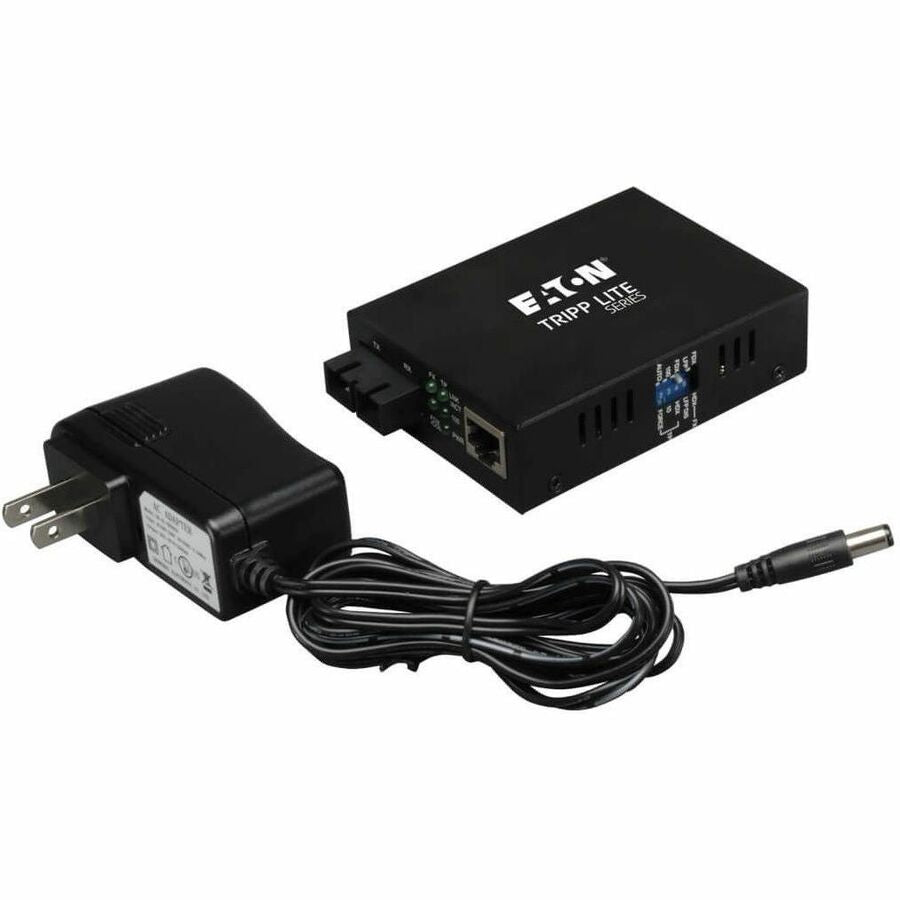

Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100BaseT to 100BaseFX-SC, 2km, 1310nm
SKU: N784-001-SC
Tripp Lite's N784-001-SC 10/100 Multimode Media Converter, is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection ( switch selectable ).
- Half or Full Duplex Operation
- Auto-Senses 10/100
- Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M
- Supports Auto MDI/MDI-X
- Convert UTP Ethernet to Fiber
Call for Availability
Regular price
$95.27
Shipping calculated at checkout
Tripp Lite's N784-001-SC 10/100 Multimode Media Converter, is an economical way to extend the distance ( up to 2Km ) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection ( switch selectable ).
- Half or Full Duplex Operation
- Auto-Senses 10/100
- Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M
- Supports Auto MDI/MDI-X
- Convert UTP Ethernet to Fiber
Country of Origin:
China
Ethernet Technology:
Fast Ethernet
Fiber Mode Supported:
Multi-mode
Limited Warranty:
2 Year
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Maximum Distance Supported:
2 km
Media Type Supported:
Twisted Pair,Optical Fiber
Network (RJ-45):
Yes
Network Technology:
10/100Base-TX,100Base-FX
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
Package Contents:
- N784-001-SC UTP to Fiber Media Converter
- 10/100 Media Converter, UTP - SC
- AC-DC Power Adapter ( 100-240V )
- Owner's Manual
Product Model:
N784-001-SC
Product Type:
Transceiver/Media Converter
SC Port Type:
Duplex
Total Number of Ports:
2
