Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, 550 m, 850 nm
SKU: N785-001-SC-MM
Tripp Lite's N785-001-SC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
- Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
- Auto detects Full/Half Duplex Transfer Mode
- Extends a Gigabit Ethernet signal up to 550M over Multimode Fiber Optic Cable
Call for Availability
Regular price
$183.96
Shipping calculated at checkout
Tripp Lite's N785-001-SC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
- Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
- Auto detects Full/Half Duplex Transfer Mode
- Extends a Gigabit Ethernet signal up to 550M over Multimode Fiber Optic Cable
Country of Origin:
China
DVI:
No
Environmentally Friendly:
Yes
Ethernet Technology:
Gigabit Ethernet
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
850 nm
Form Factor:
Desktop
Limited Warranty:
2 Year
Management Port:
No
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Maximum Distance Supported:
0.55 km
Media Type Supported:
Optical Fiber,Twisted Pair
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-T,1000Base-SX
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1

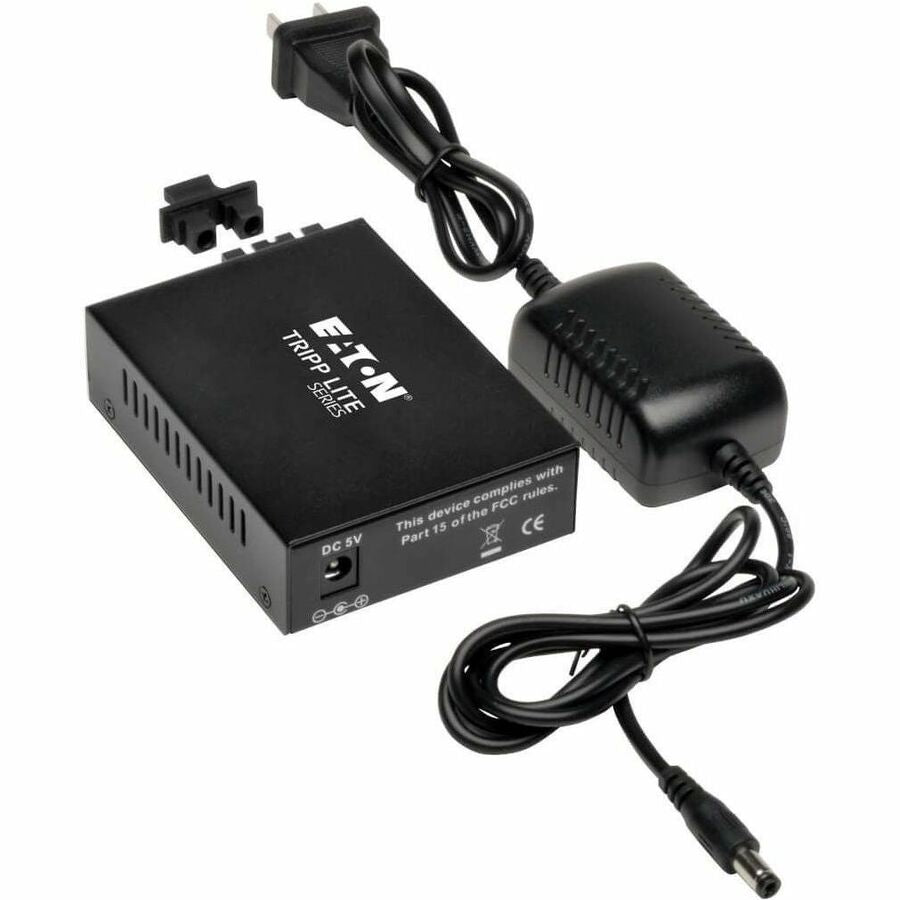

Package Contents:
- 10/100/1000 SC Multimode Media Converter, 550M, 850nm
- AC Power Adapter
- User Manual
Product Model:
N785-001-SC-MM
Product Type:
Transceiver/Media Converter
Total Number of Ports:
2
USB:
No
