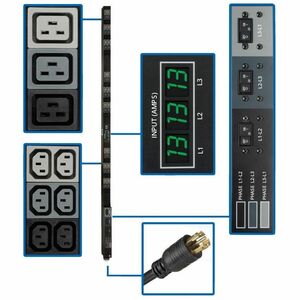

Eaton Tripp Lite Series 3-Phase Local Metered PDU, 8.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft. (1.83 m) NEMA L21-30P Input connection, TAA Compliant
SKU: PDU3MV6L2130A
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

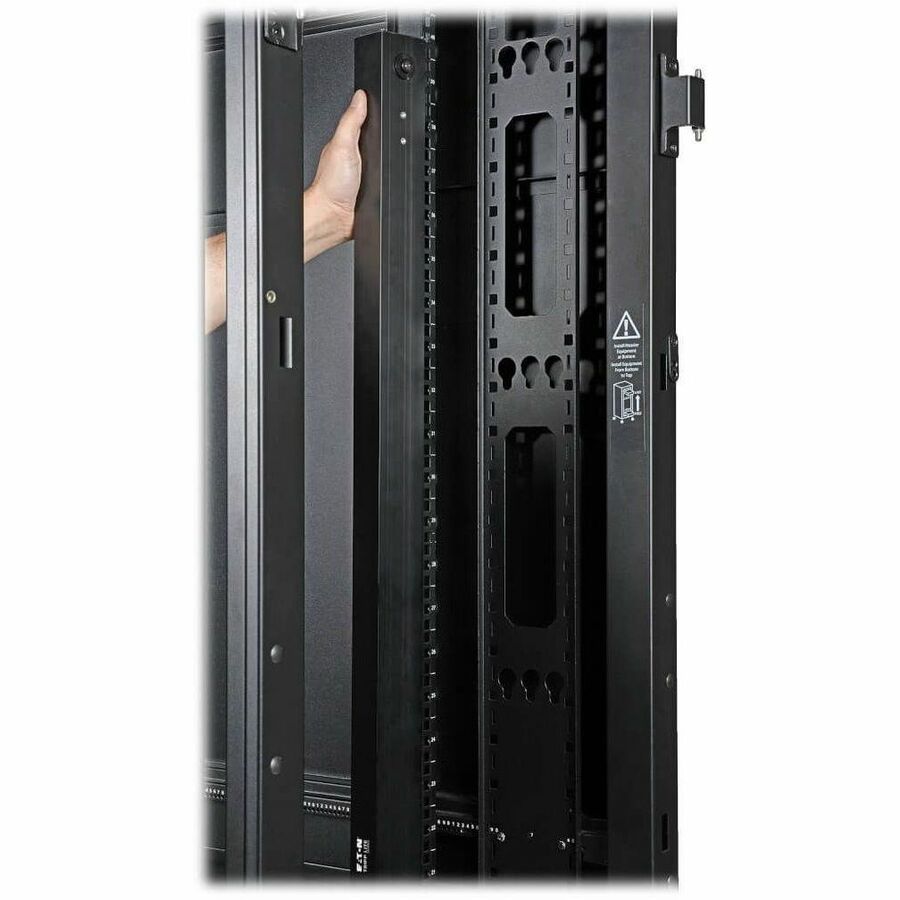

- Toolless button-mount installation, TAA Compliant

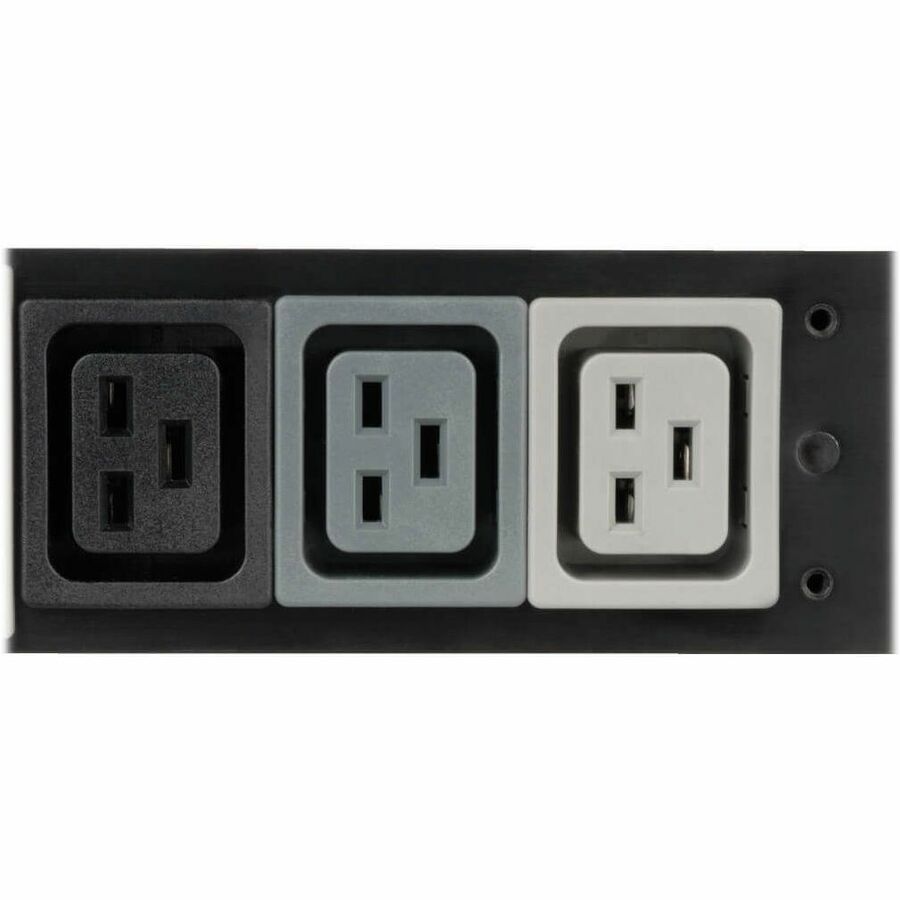

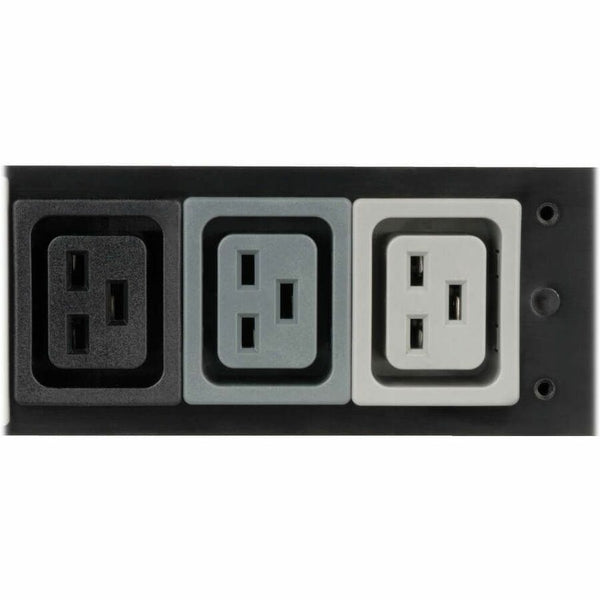

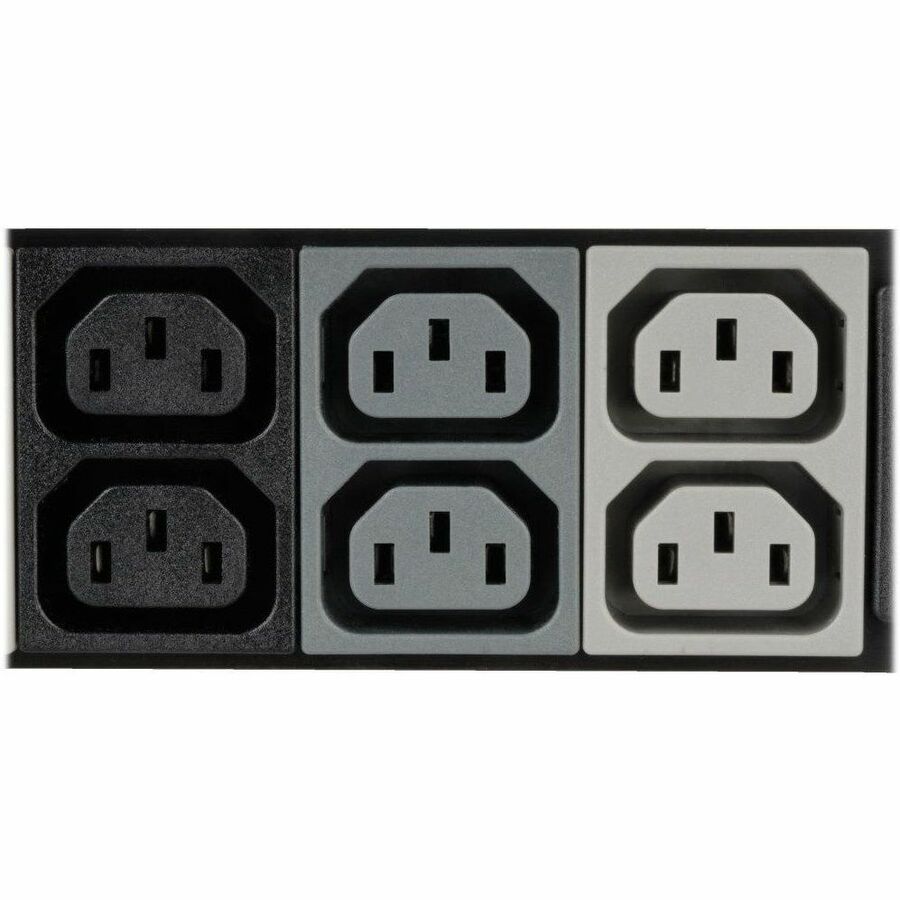

- 45 208V outlets (36 C13, 9 C19) with included plug-lock cord retention sleeves

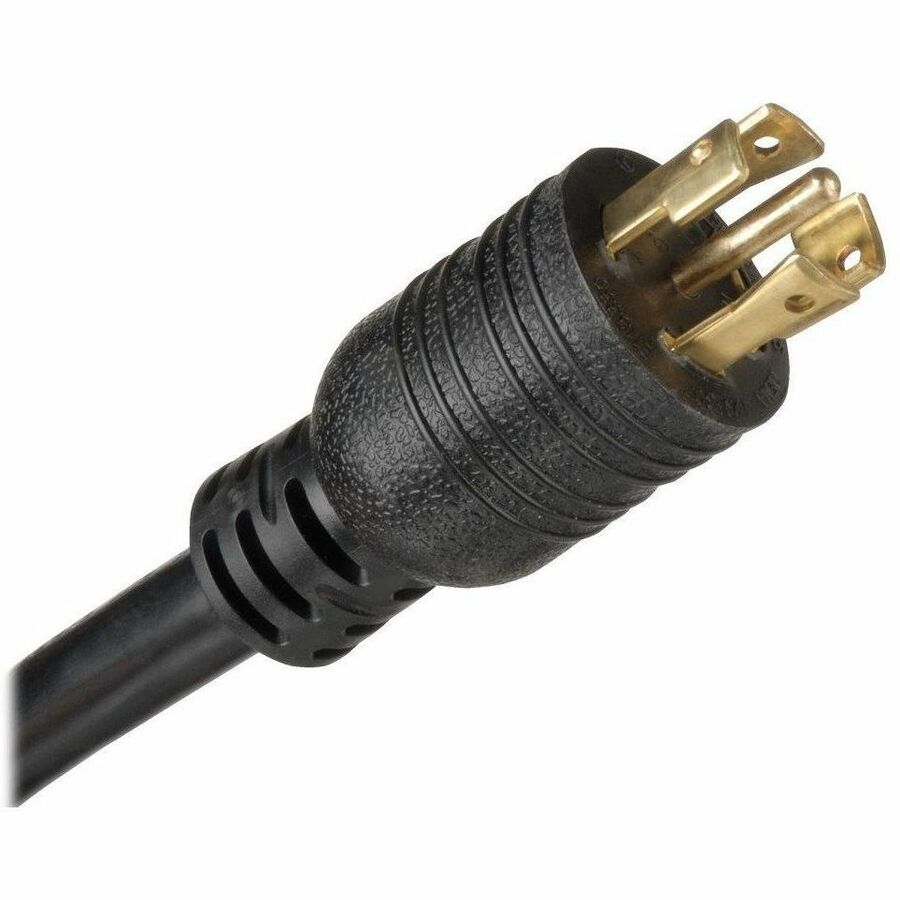

- NEMA L21-30P (3P+N+E) 208V 3 phase input, 6 ft. / 1.8m line cord

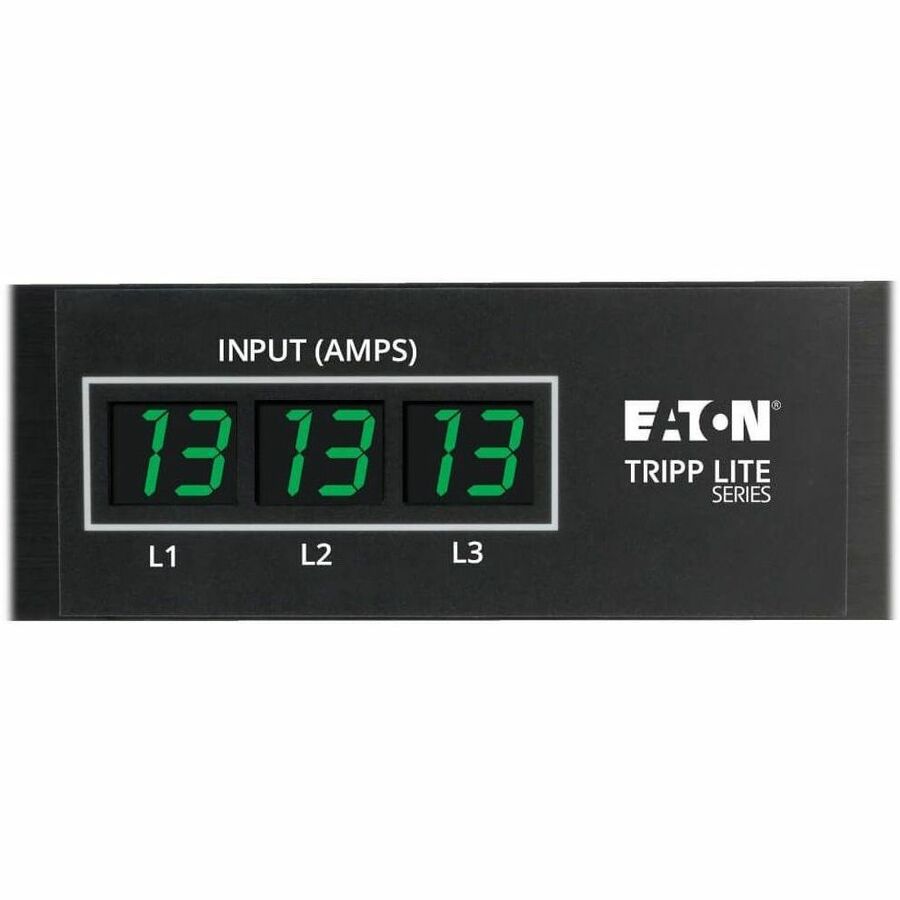

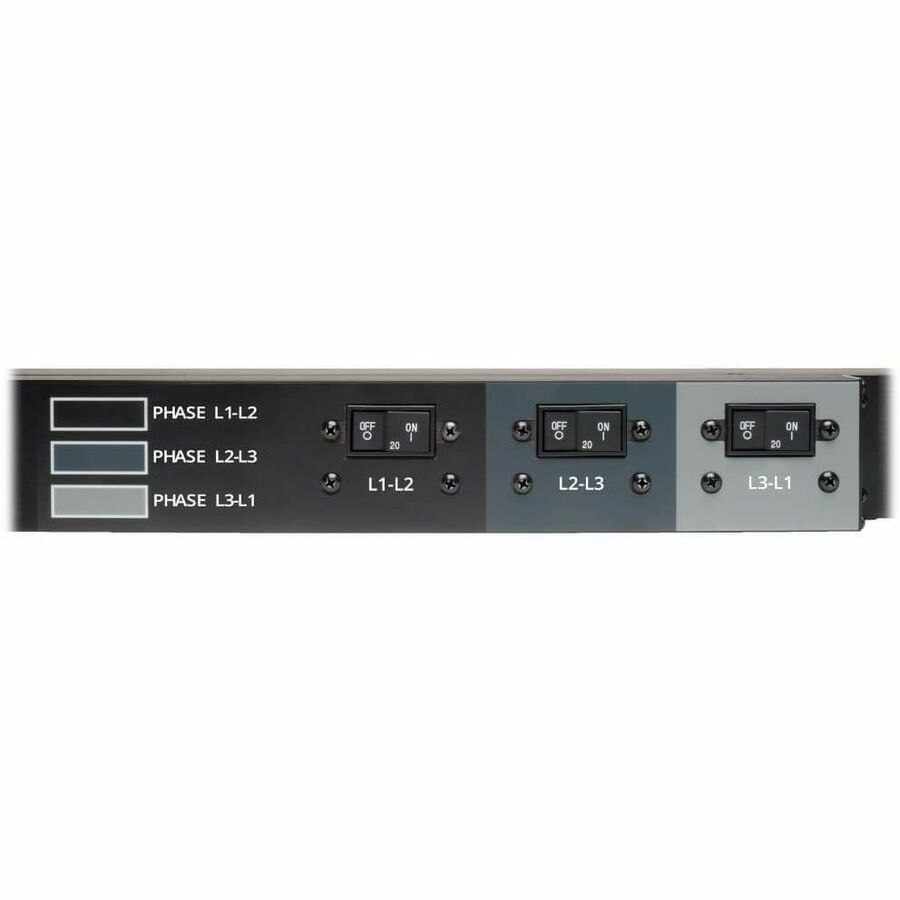

- Reports voltage and load per-phase via set of 3 digital current displays

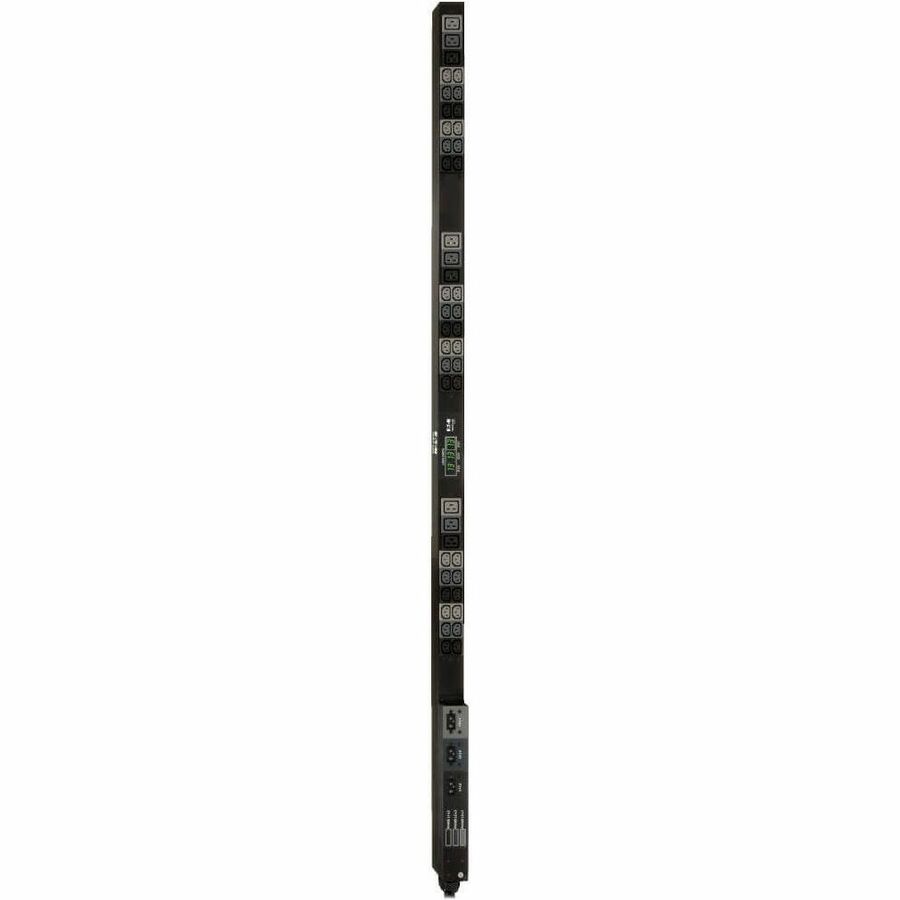

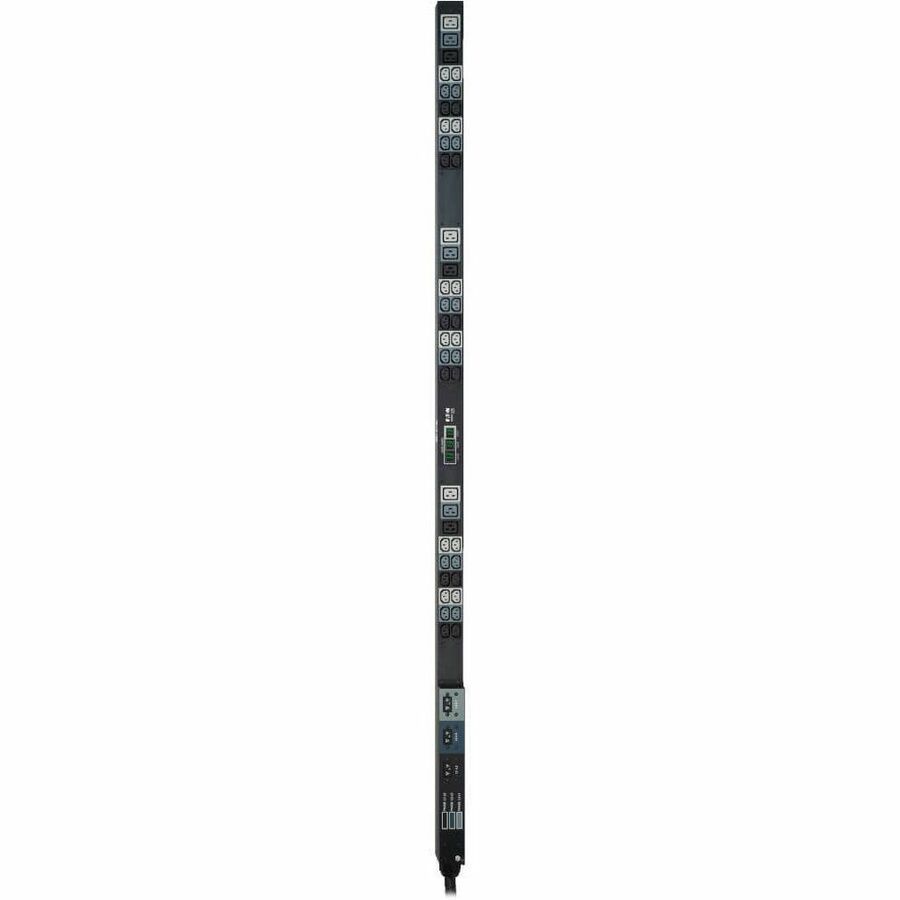

- Metered 8.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
Only 2 in stock
Regular price
$1,382
Shipping calculated at checkout
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Toolless button-mount installation, TAA Compliant
- 45 208V outlets (36 C13, 9 C19) with included plug-lock cord retention sleeves
- NEMA L21-30P (3P+N+E) 208V 3 phase input, 6 ft. / 1.8m line cord
- Reports voltage and load per-phase via set of 3 digital current displays
- Metered 8.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Input Current:
24 A
Input Voltage:
230 V AC
Limited Warranty:
2 Year
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Output Voltage:
208 V AC

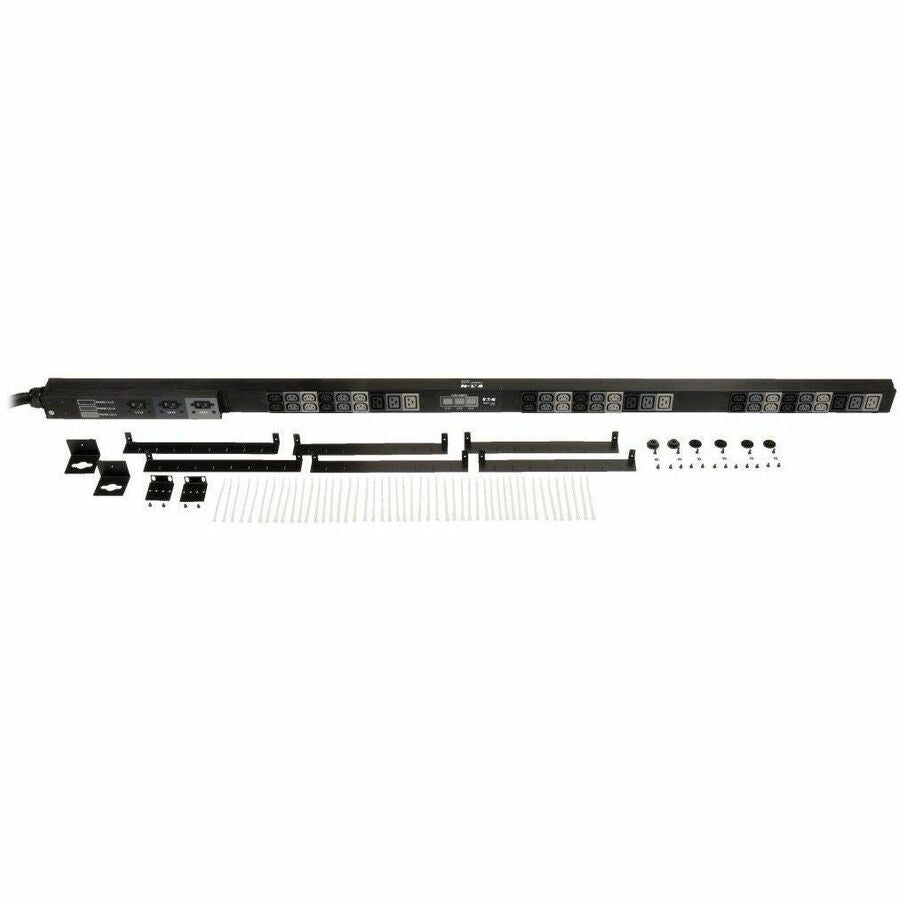

Package Contents:
- Metered PDU3MV6L2130A 45-Outlets PDU
- Cord Retention Sleeves (36 C14, 9 C19)
- Spare Installation Buttons (2 9mm / 4 6mm)
- Rack Mounting Brackets
- Owner's Manual
Plug/Connector Type:
NEMA L21-30P
Power Rating (Watt):
8600 W
Product Model:
PDU3MV6L2130A
Product Series:
Metered
Product Type:
PDU
Protection Type:

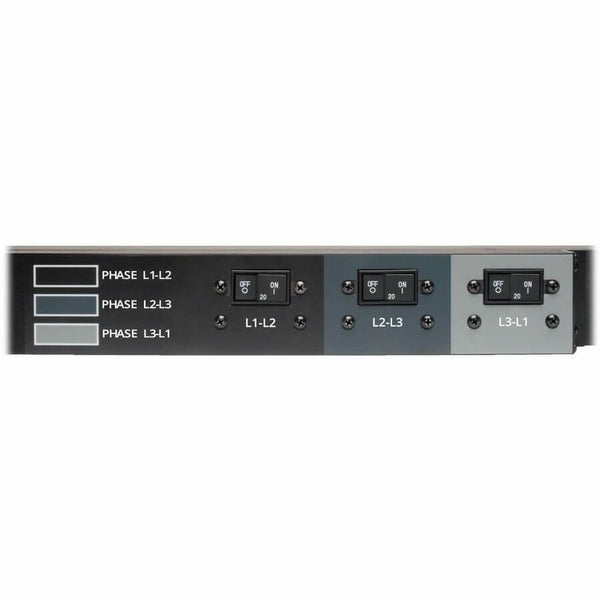

Overload Protection
Rack Height:
0U
Receptacle Detail:
36 x IEC 60320 C13,9 x IEC 60320 C19
Receptacle Type:
IEC 60320 C13,IEC 60320 C19
TAA Compliant:
Yes
