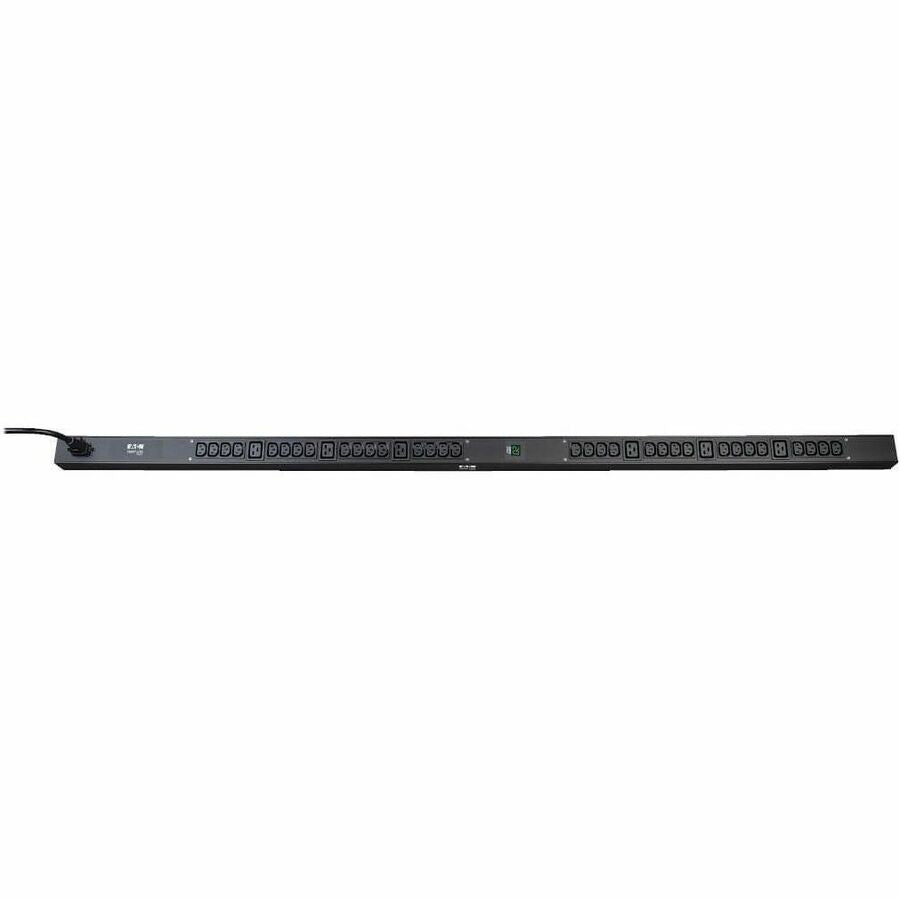

Eaton Tripp Lite Series 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10 ft. (3.05 m) Cord, 0U Vertical
Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUMV20HV 63.75 in. vertical 0U metered rack PDU supports 20A maximum capacity at 208/230/240V (agency derated to 16A). Includes 10 ft. detachable line cord with L6-20P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in a single unbreakered load bank. Built-in 2 character displays offer continuous information on PDU power consumption.
- 10ft / 3m detachable input cable with NEMA L6-20P plug
- C20 inlet accepts a variety of 16A international cordsets
- Two-digit meter reports output current in amps
- Metered single phase 16/20A 200-240V 0U 63.75in / 162cm vertical rackmount PDU
12 in stock
Shipping calculated at checkout
Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUMV20HV 63.75 in. vertical 0U metered rack PDU supports 20A maximum capacity at 208/230/240V (agency derated to 16A). Includes 10 ft. detachable line cord with L6-20P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in a single unbreakered load bank. Built-in 2 character displays offer continuous information on PDU power consumption.
- 10ft / 3m detachable input cable with NEMA L6-20P plug
- C20 inlet accepts a variety of 16A international cordsets
- Two-digit meter reports output current in amps
- Metered single phase 16/20A 200-240V 0U 63.75in / 162cm vertical rackmount PDU

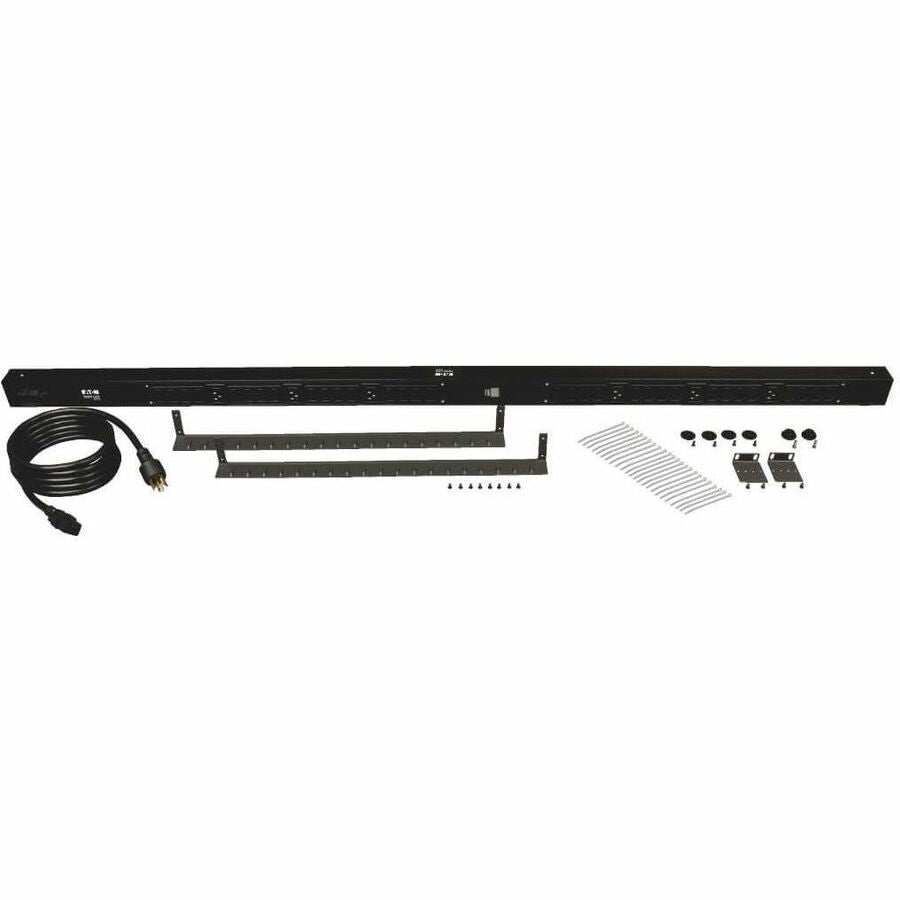

- PDUMV20HV PDU Metered 208V - 240V 20A 38 Outlet
- PDUMV20HV 63.75 inch basic PDU with owner's manual
- Set of 2 bolt-on plug retention brackets and installation hardware
- Set of mounting brackets and installation hardware
