Eaton Tripp Lite Series 2-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)
Connects Up to Two 9-Pin Serial Devices to Your Computer, Laptop or Tablet's USB-A Port

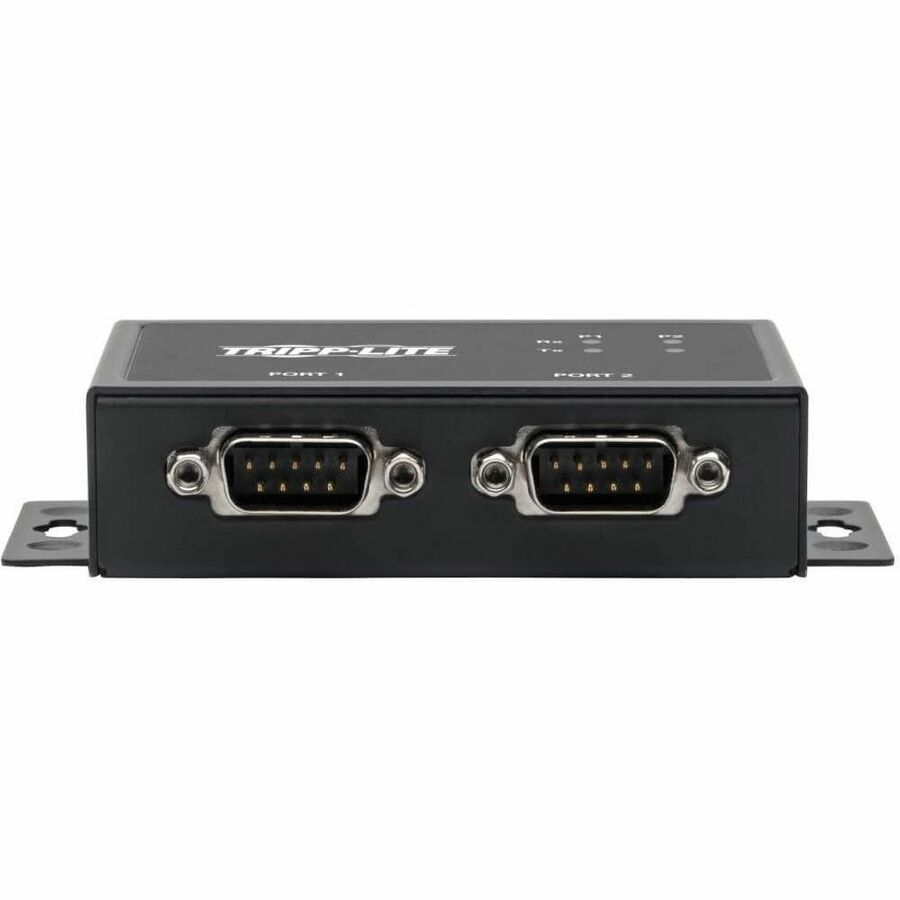

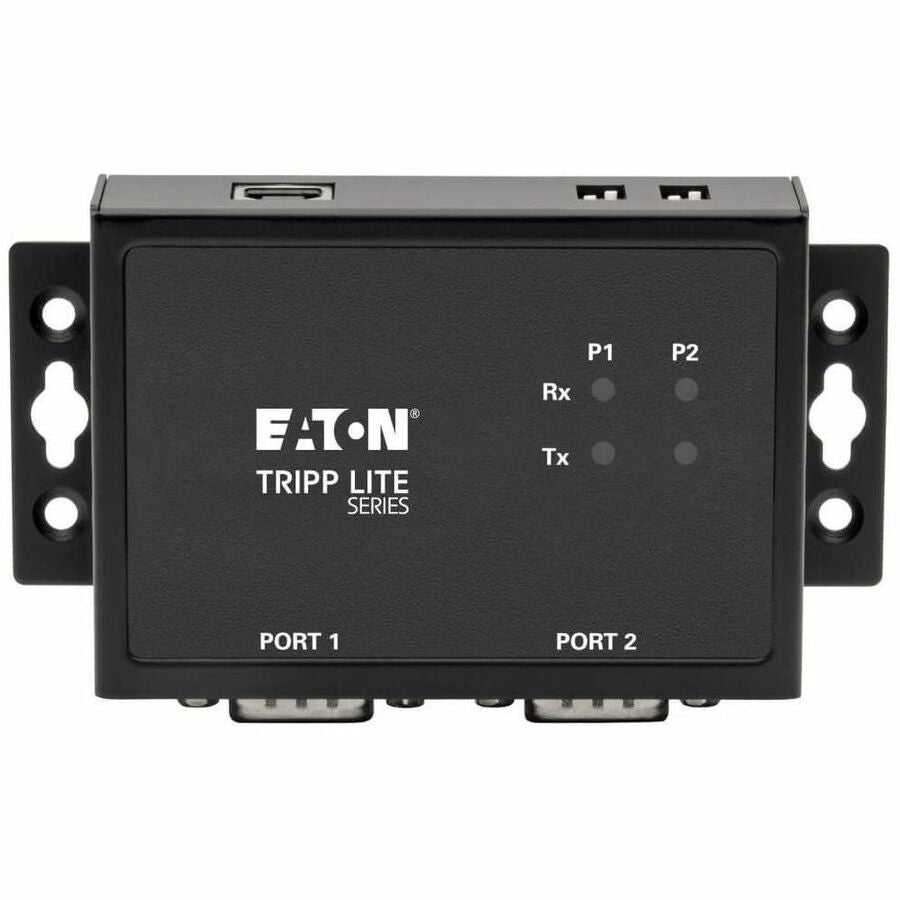

This USB to serial converter turns your computer's USB port into two DB9 ports capable of connecting RS-422 and RS-485 serial devices, such as modems, handheld scanners and GPS systems. No external power source is needed. Just connect the included USB cable between the U208-002-IND and your computer, and insert the included CD into your computer's CD drive in order to launch the driver. You'll be able to configure and share data among point-of-sale equipment and other serial devices. LEDs indicate when serial data is being sent or received.
Independent DIP Switches for Easy Port Configuration

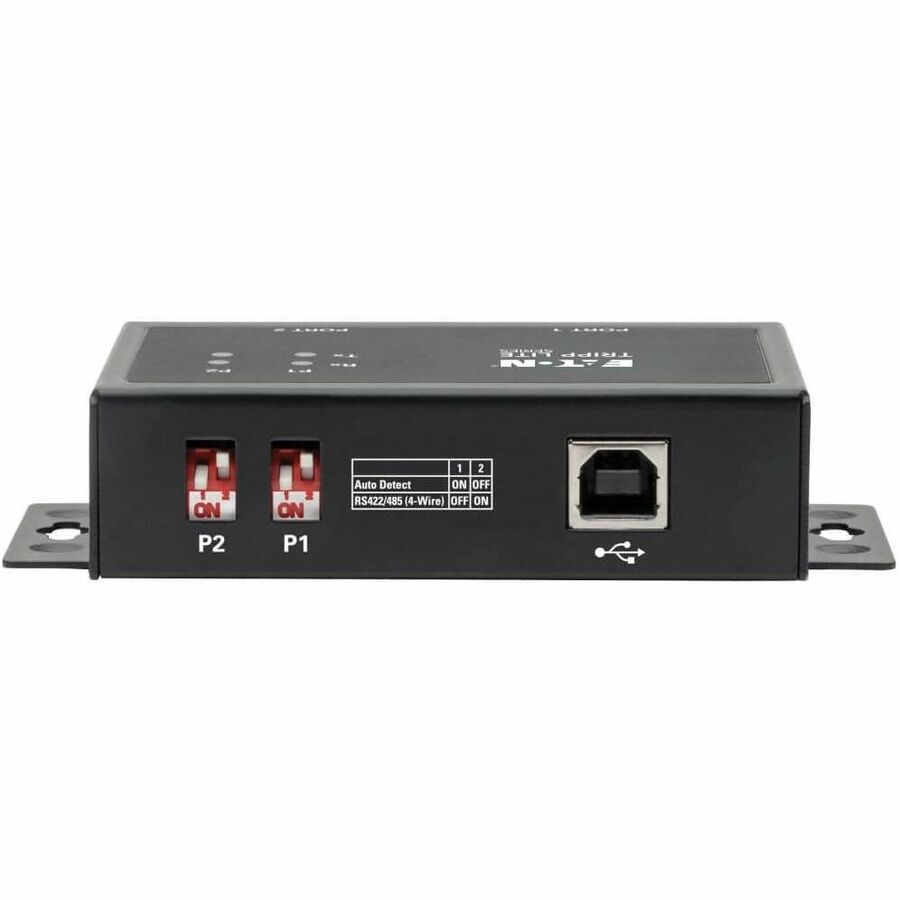

The U208-002-IND's serial ports can be set to automatically detect an RS-422 or RS-485 device by adjusting their DIP switch settings. The ports can also be set specifically for use in 4-wire mode.
COM Retention Feature for Convenient Reassigning of COM Values to Ports
This USB to RS-485 adapter with built-in FTDI chipset offers COM retention. It automatically reassigns the same COM port values to each port, so when the cable is disconnected or the system is rebooted, no additional configuration is needed. The cable auto-detects and auto-switches RS-422 and RS-485 devices. It also supports RS-485 auto-transceiver turn around with unique featured ATTA hardware.
Rugged All-Metal Housing Designed to Last in Harsh Industrial Applications
The wall-mountable USB to serial converter with an industrial-grade steel enclosure offers electrostatic discharge (ESD) protection to ±15kV. It supports serial communications speeds up to one Mbps and USB 2.0 specifications, though it is backward compatible with USB 1.1 devices.
2-Year Warranty
The U208-002-IND is backed by a 2-year warranty, ensuring reliability and performance.
- 2-year limited warranty
- Compatible with Windows, Mac and Linux-works with most computers
- USB-powered, so no bulky or obtrusive external power supply is required
- Automatically reassigns COM values to each port to avoid additional configuration
- Independent DIP switch controls provide easy port configuration
- Auto-detects and -switches RS-422 and RS-485 serial devices
- USB to serial converter lets you connect two 9-pin serial devices to your computer or laptop's USB-A port.
Call for Availability
Shipping calculated at checkout
Connects Up to Two 9-Pin Serial Devices to Your Computer, Laptop or Tablet's USB-A Port
This USB to serial converter turns your computer's USB port into two DB9 ports capable of connecting RS-422 and RS-485 serial devices, such as modems, handheld scanners and GPS systems. No external power source is needed. Just connect the included USB cable between the U208-002-IND and your computer, and insert the included CD into your computer's CD drive in order to launch the driver. You'll be able to configure and share data among point-of-sale equipment and other serial devices. LEDs indicate when serial data is being sent or received.
Independent DIP Switches for Easy Port Configuration
The U208-002-IND's serial ports can be set to automatically detect an RS-422 or RS-485 device by adjusting their DIP switch settings. The ports can also be set specifically for use in 4-wire mode.
COM Retention Feature for Convenient Reassigning of COM Values to Ports
This USB to RS-485 adapter with built-in FTDI chipset offers COM retention. It automatically reassigns the same COM port values to each port, so when the cable is disconnected or the system is rebooted, no additional configuration is needed. The cable auto-detects and auto-switches RS-422 and RS-485 devices. It also supports RS-485 auto-transceiver turn around with unique featured ATTA hardware.
Rugged All-Metal Housing Designed to Last in Harsh Industrial Applications
The wall-mountable USB to serial converter with an industrial-grade steel enclosure offers electrostatic discharge (ESD) protection to ±15kV. It supports serial communications speeds up to one Mbps and USB 2.0 specifications, though it is backward compatible with USB 1.1 devices.
2-Year Warranty
The U208-002-IND is backed by a 2-year warranty, ensuring reliability and performance.
- 2-year limited warranty
- Compatible with Windows, Mac and Linux-works with most computers
- USB-powered, so no bulky or obtrusive external power supply is required
- Automatically reassigns COM values to each port to avoid additional configuration
- Independent DIP switch controls provide easy port configuration
- Auto-detects and -switches RS-422 and RS-485 serial devices
- USB to serial converter lets you connect two 9-pin serial devices to your computer or laptop's USB-A port.

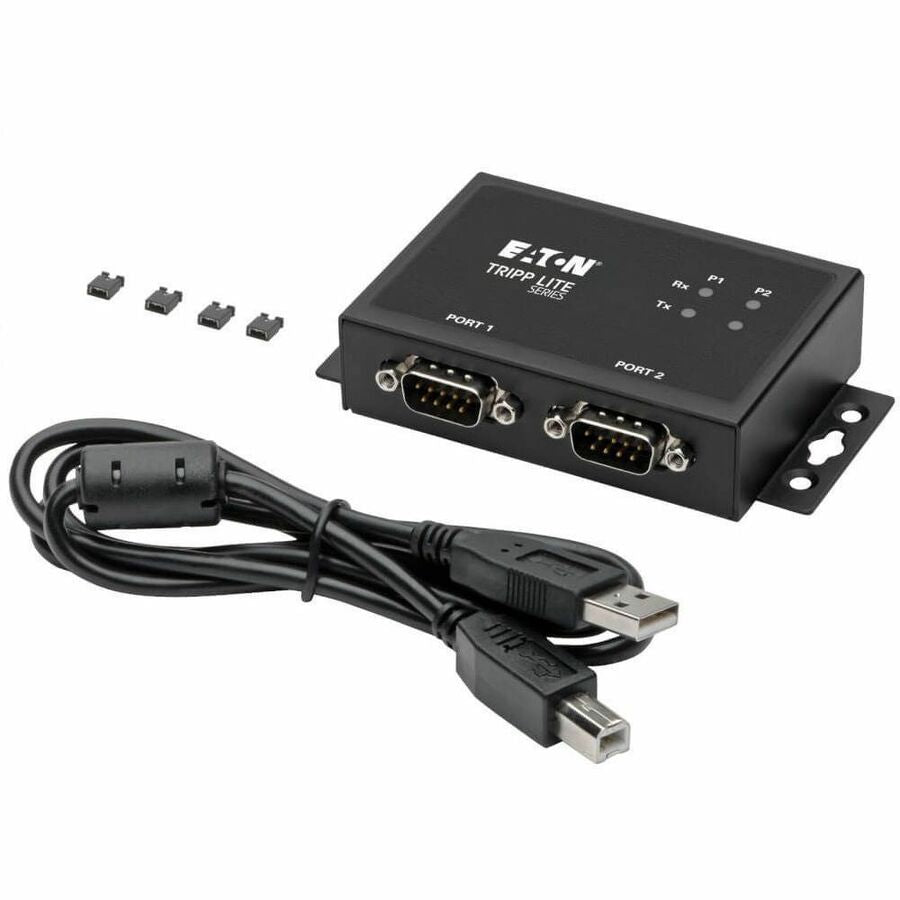

- U208-002-IND RS422/485 USB to Serial FTDI Adapter
- USB-A to USB-B Cable (M/M), 3 ft
- 4 x 2-pin Jumpers
- Driver CD
- Owner's Manual
