Eaton Tripp Lite Series 2-Port HDMI Splitter - HDCP 2.2, 4K @ 60 Hz, HDR, TAA
SKU: B118-002-UHD-2
Two-Port HDMI splitter transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to two HDMI displays at the same time. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Using standard 28 AWG HDMI cabling, this splitter can transmit full 3D and a 4K x 2K (3840 x 2160) signal up to 15'. It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound as well as 36-bit Deep Color (12 bits per channel). Splitter also supports HDMI 2.0 and HDCP 2.2 to ensure its compatibility with the latest audio/video hardware.
- 3-year limited warranty
- Plug and play-no software or drivers required
- Expand the number of connected displays, up to 32, by cascading up to 3 levels of splitters together
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Compatible with HDCP 2.2, 3D, EDID and HDMI 2.0
- Supports DTS-HD, Dolby® TrueHD and Dolby Digital Plus™
- Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
- Transmits UHD video resolutions up to 4K x 2K @ 60 Hz
Only 3 in stock
Regular price
$155.82
Shipping calculated at checkout
Two-Port HDMI splitter transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to two HDMI displays at the same time. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Using standard 28 AWG HDMI cabling, this splitter can transmit full 3D and a 4K x 2K (3840 x 2160) signal up to 15'. It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound as well as 36-bit Deep Color (12 bits per channel). Splitter also supports HDMI 2.0 and HDCP 2.2 to ensure its compatibility with the latest audio/video hardware.
- 3-year limited warranty
- Plug and play-no software or drivers required
- Expand the number of connected displays, up to 32, by cascading up to 3 levels of splitters together
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Compatible with HDCP 2.2, 3D, EDID and HDMI 2.0
- Supports DTS-HD, Dolby® TrueHD and Dolby Digital Plus™
- Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
- Transmits UHD video resolutions up to 4K x 2K @ 60 Hz
Additional Warranty Information:
3 year limited warranty
Country of Origin:
Taiwan
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
HDMI In:
Yes
HDMI Out:
Yes
Input Voltage:
5 V DC,120 V AC,230 V AC
Limited Warranty:
3 Year
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Maximum Operating Distance:
22.97 ft
Maximum Video Resolution:
3840 � 2160
Number of HDMI Inputs:
1
Number of HDMI Outputs:
2
Packaged Quantity:
1 Each

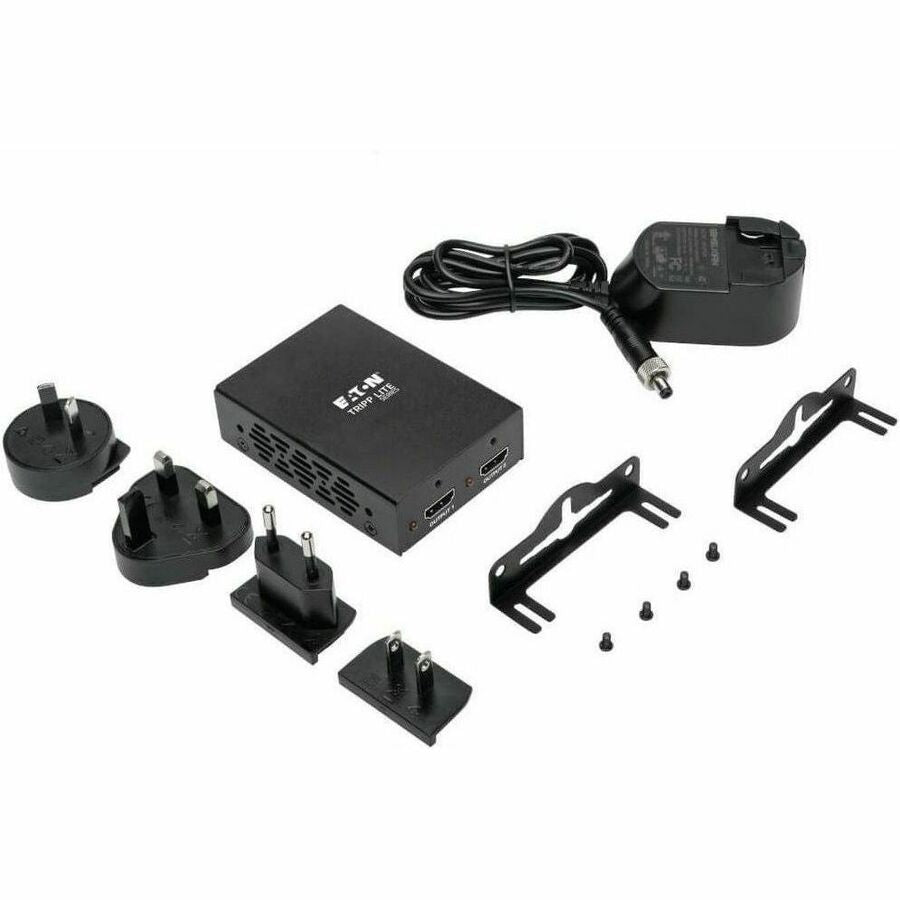

Package Contents:
- B118-002-UHD-2 2-Port 4K 3D HDMI Splitter
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
- International Plug Adapters (North America, Europe, U.K. and Australia)
- Mounting Hardware
- Owner's Manual
Product Material:
Metal
Product Model:
B118-002-UHD-2
Product Type:
Signal Splitter
TAA Compliant:
Yes
