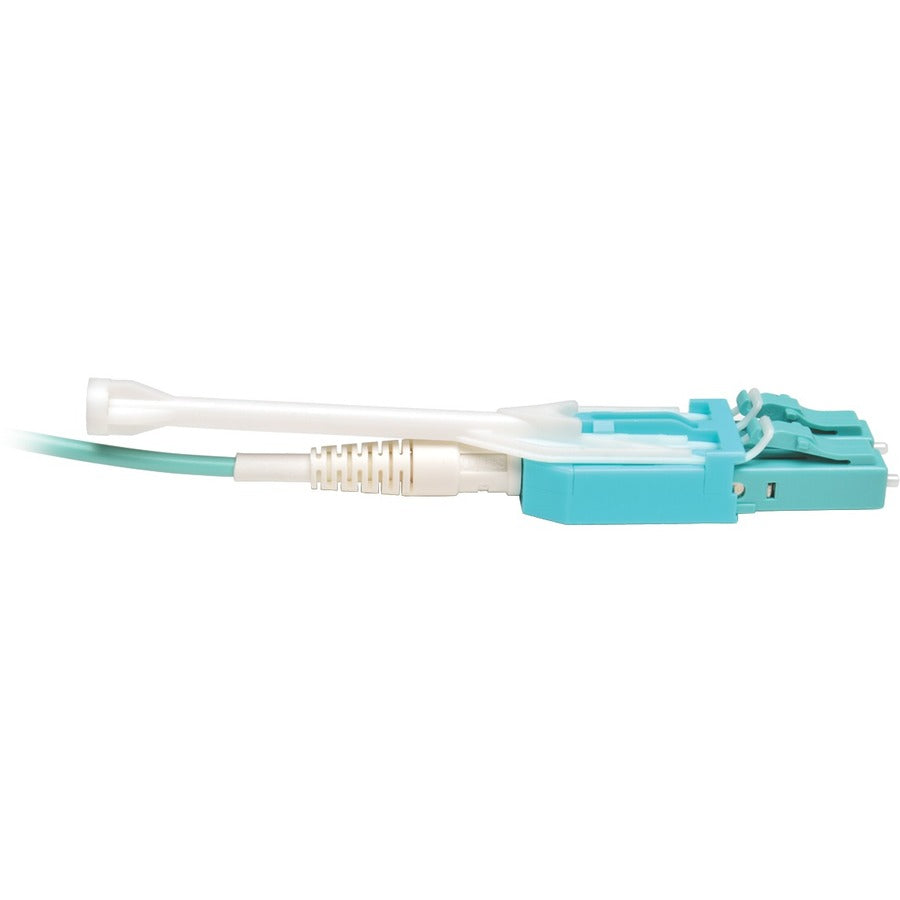

Eaton Tripp Lite Series 10Gb/40Gb/100Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable with Push/Pull Tab Connectors (LC/LC), Aqua, 3M (9.8 ft.)

SKU: N820-03M-T
Tripp Lite's N820-03M-T is a Premium OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10GbE applications. This 50/125um, LC/LC Fiber Optic cable provides nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. Each LC/LC connector features a push/pull tab, providing maximum accessibility in high density installations; install or remove the cable with one hand without needing additional tools. LOMMF cable allows 10GbE serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. A slim, uniboot design provides space savings, while premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Sturdy plastic housing for long lasting durability

More from the Manufacturer

  • Max 10GbE distance of 300 meters @850nm
  • Low-Smoke, Zero Halogen (LSZH) Aqua jacket
  • Backward compatible with existing 50/125 fiber
  • Sturdy plastic housing for long-lasting durability
  • Premium-grade ceramic ferrules designed specifically for 10GbE and faster applications
  • Slim uniboot design saves space and makes cables easier to manage
  • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools

Call for Availability

Regular price $53.66

Shipping calculated at checkout

Details
Tripp Lite's N820-03M-T is a Premium OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10GbE applications. This 50/125um, LC/LC Fiber Optic cable provides nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. Each LC/LC connector features a push/pull tab, providing maximum accessibility in high density installations; install or remove the cable with one hand without needing additional tools. LOMMF cable allows 10GbE serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. A slim, uniboot design provides space savings, while premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Sturdy plastic housing for long lasting durability

More from the Manufacturer

  • Max 10GbE distance of 300 meters @850nm
  • Low-Smoke, Zero Halogen (LSZH) Aqua jacket
  • Backward compatible with existing 50/125 fiber
  • Sturdy plastic housing for long-lasting durability
  • Premium-grade ceramic ferrules designed specifically for 10GbE and faster applications
  • Slim uniboot design saves space and makes cables easier to manage
  • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
Specifications
Cable Characteristic:
Patch Cable
Cable Length:
10 ft
Cable Type:
Fiber Optic
Color Family:
Green
Connector on First End Details:
2 x LC Network - Male
Connector on Second End Details:
2 x LC Network - Male
Connector Type on First End:
LC Network - Male
Connector Type on Second End:
LC Network - Male
Country of Origin:
China
Device Supported:
Network Device
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Fiber Optic Cable Core/Cladding Specification:
50/125 µm
Fiber Optic Mode:
Multi-mode
Jacket Type:
LSZH
Limited Warranty:
Lifetime
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Product Color:
Aqua
Product Model:
N820-03M-T
Product Type:
Network Cable
