Eaton 1.9kW Single-Phase Switched PDU - LX Interface, 120V Outlets (16 5-15/20R), L5-20P/5-20P Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA
SKU: PDUMH20NET
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
- TAA Compliant
- Temperature, humidity and contact closure monitoring options
- 16 NEMA 5-15/20R switched outlets with cord retention brackets
- NEMA L5-20P input with 5-20P plug adapter, 12 ft. / 3.6m line cord
- Visual current meter, Reversible housing
- Reports voltage, frequency & load level via ethernet interface
- Switched 20A 120V PDU, 1U horizontal rackmount format
Only 2 in stock
Regular price
$914.62
Sale price
$1,134
On Sale
Shipping calculated at checkout
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
- TAA Compliant
- Temperature, humidity and contact closure monitoring options
- 16 NEMA 5-15/20R switched outlets with cord retention brackets
- NEMA L5-20P input with 5-20P plug adapter, 12 ft. / 3.6m line cord
- Visual current meter, Reversible housing
- Reports voltage, frequency & load level via ethernet interface
- Switched 20A 120V PDU, 1U horizontal rackmount format
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Input Voltage:
120 V AC
Limited Warranty:
2 Year
Management:
Protocols:
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- FTP
- DHCP
- BOOTP
- NTP
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable,Wall-mountable
Output Voltage:
120 V AC

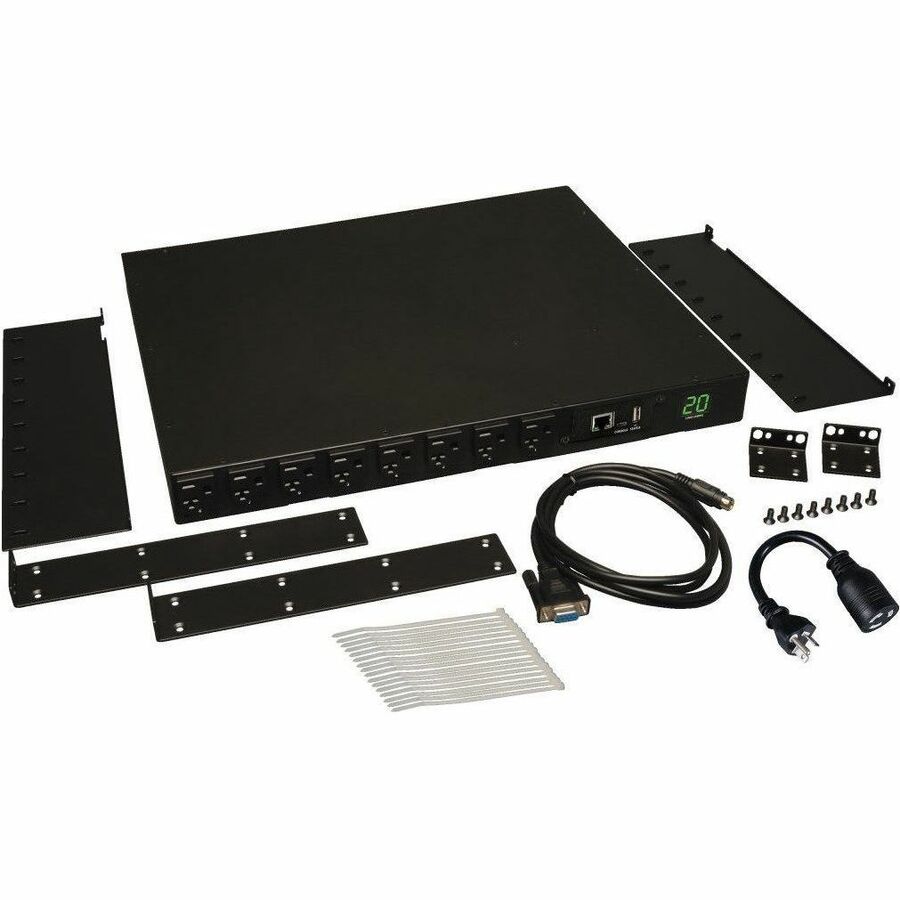

Package Contents:
- Switched Metered PDUMH20NET 16-Outlets PDU
- L5-20P Input Power Cord
- 5-20P Plug Adapter
- Installable 1U Mounting Brackets
- PowerAlert Software
- User Manual
PDU Type:
Switched
Plug/Connector Type:
NEMA L5-20P
Product Model:
PDUMH20NET
Product Series:
Switched Metered
Product Type:
PDU
Rack Height:
1U
Receptacle Detail:
16 x NEMA 5-15/20R
Receptacle Type:
NEMA 5-15/20R
TAA Compliant:
Yes
