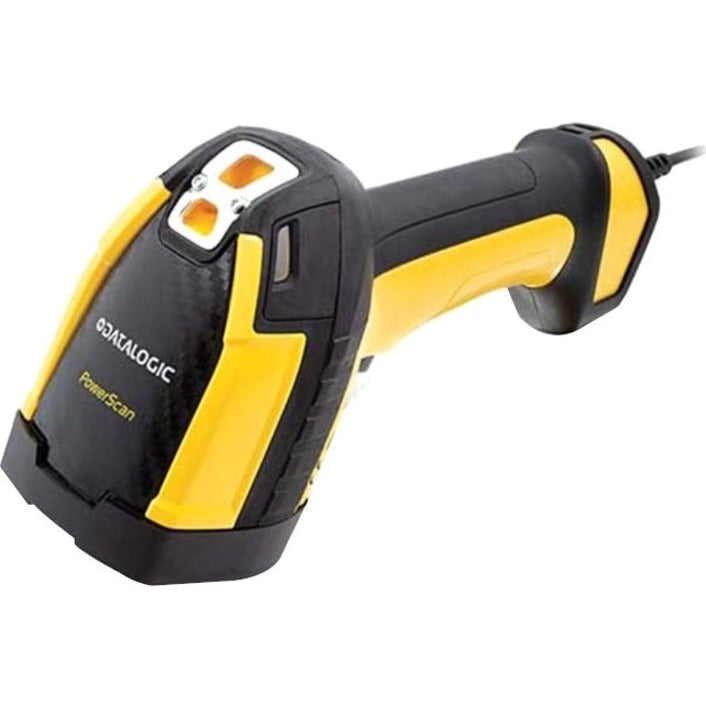

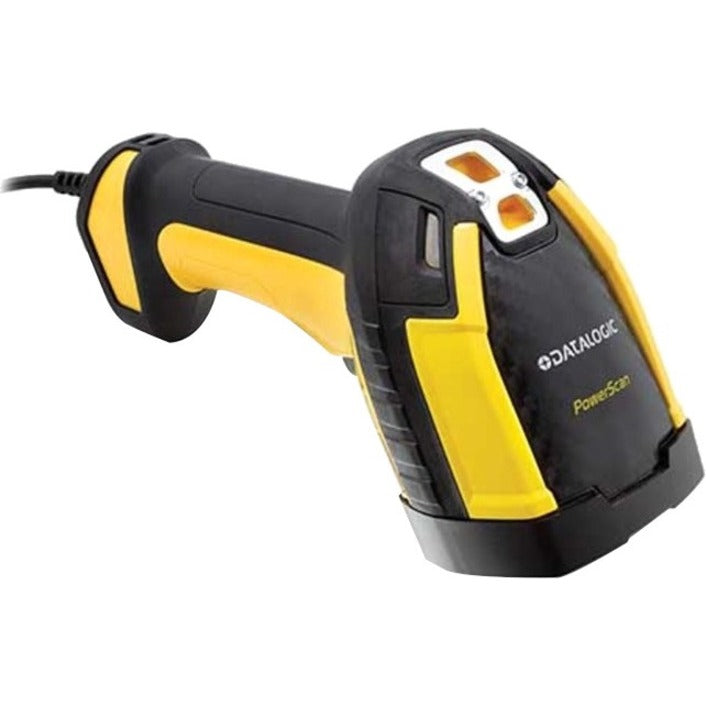

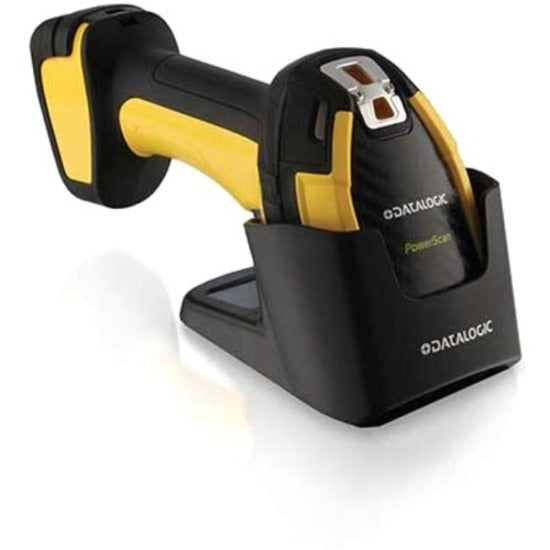

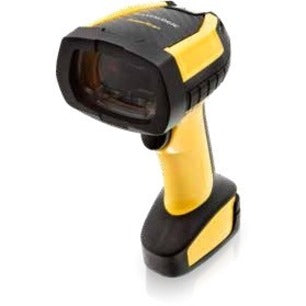

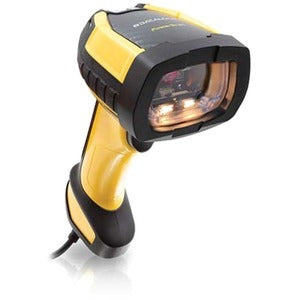

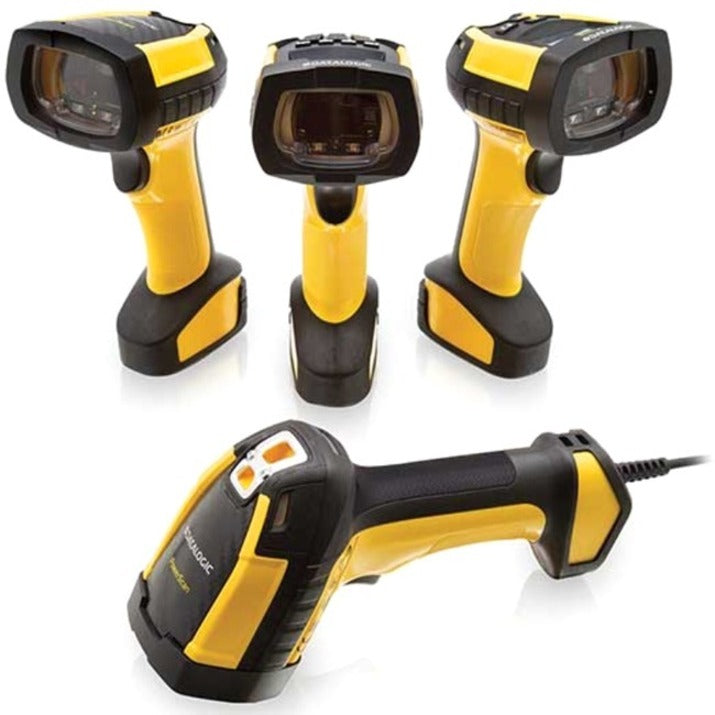

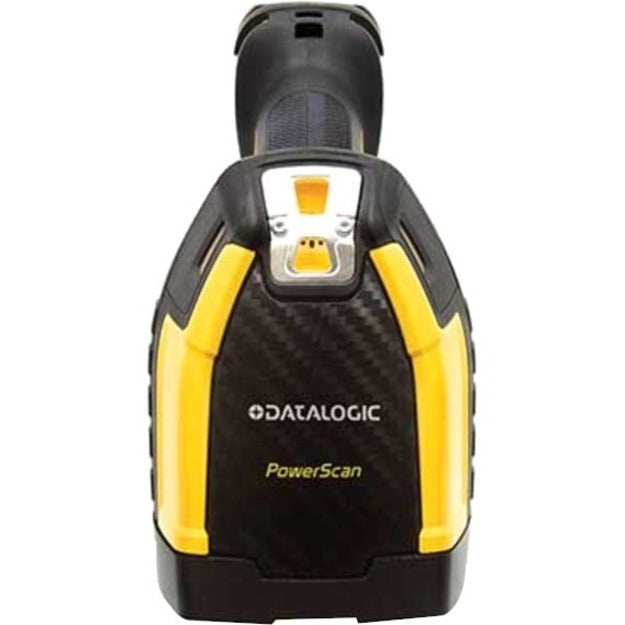

Datalogic POWERSCAN 9600 PD9630 Barcode Scanner Kit

SKU: PD9630-ARK1

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

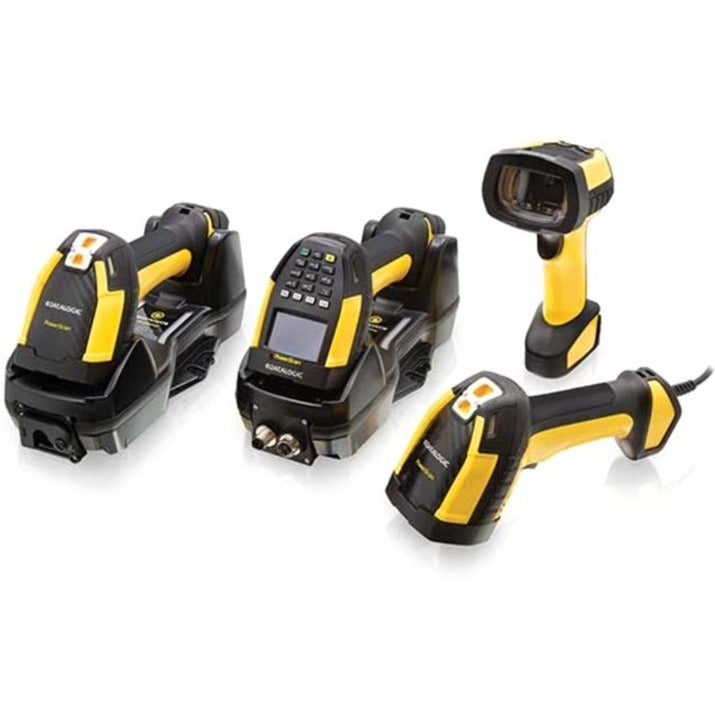

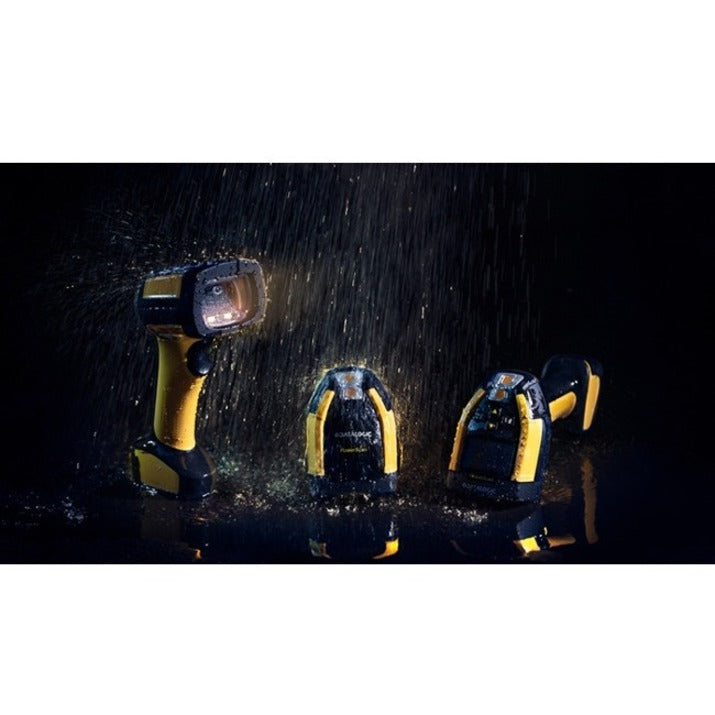

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

THE BEST FEEDBACK TO THE OPERATOR

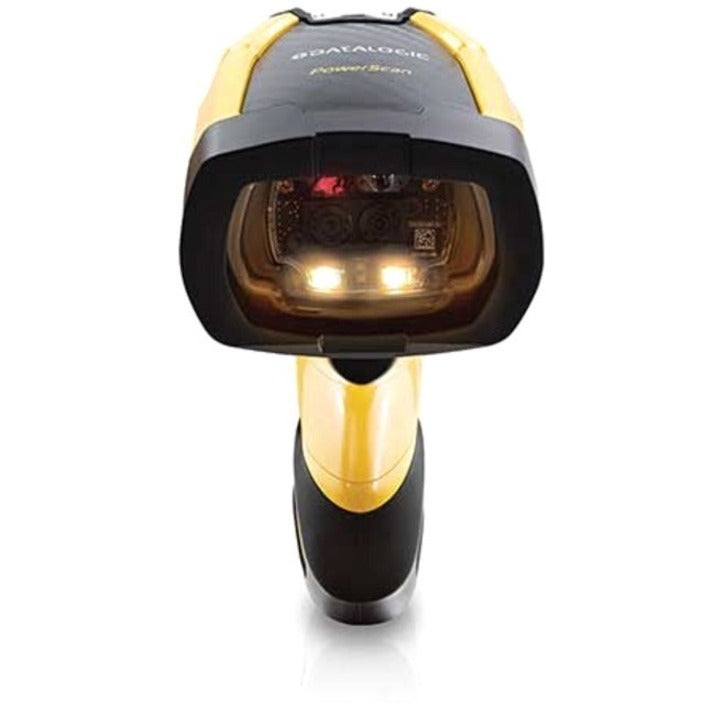

The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.

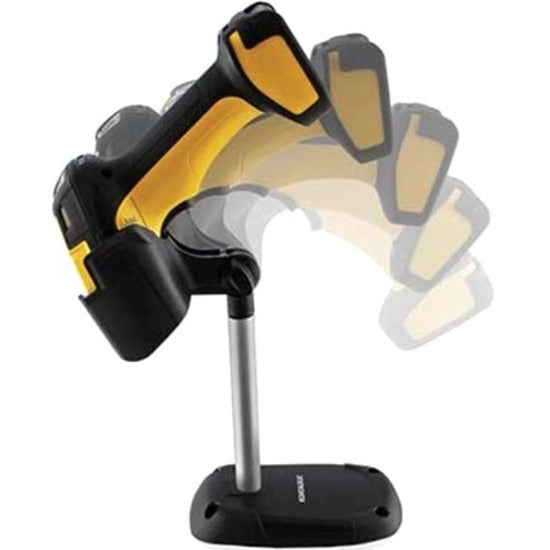

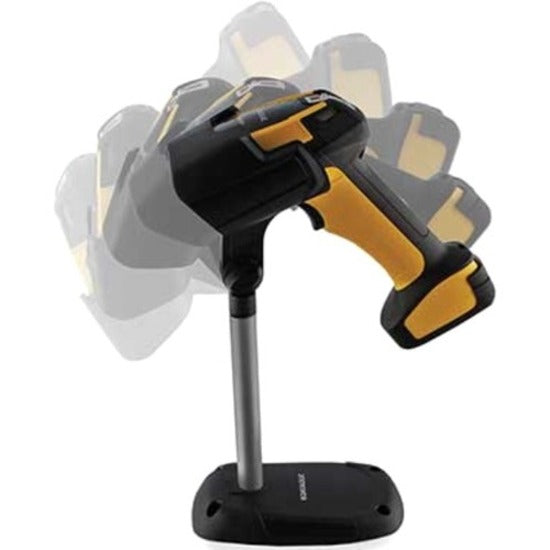

Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).

  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Wired connectivity makes this scanner ideal for retail and desktop applications

Call for Availability

Regular price $886

Shipping calculated at checkout

Details

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

THE BEST FEEDBACK TO THE OPERATOR

The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.

Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).

  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Specifications
Air Electrostatic Discharge (+/-):
20kV
Application/Usage:
Manufacturing,Assembly Line,Component Tracking,Inventory,Warehouse,Logistics,Picking,Packing,Sorting,Industrial
Cable Type Included:
USB
Color Family:
Dual Color
Connectivity Technology:
Cable
Durability:
Water Resistant,Dust Resistant
Features:
Beep,Vibration,Notification LED
Form Factor:
Handheld
Host Interface:
USB,Serial
Humidity (Non-condensing):
0% to 95%
Illumination Color:
White
Illumination Type:
LED
Image Sensor Type:
Imager
Ingress Protection (IP) Rating:
IP67,IP65
Length:
5.5"
Light Source:
LED
Manufacturer:
Datalogic S.p.A
Manufacturer Website Address:
http://www.datalogic.com
Maximum Ambient Light:
100000 lux
Minimum Print Contrast:
15%
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Product Color:
Yellow,Black
Product Line:
PowerScan
Product Model:
PD9630
Product Series:
9600
Product Type:
Barcode Scanner Kit
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Reading Angle (Skew):
52°
Rugged:
Yes
Scanner Range:
Auto Range
Scanning Capability:
1D,2D
Scan Mode:
Trigger
Scan Pattern:
Area,Omni-directional
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
