CyberPower OR1500LCDRM1U Smart App LCD UPS Systems

SKU: OR1500LCDRM1U

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.

More from the Manufacturer

  • Warranty: 3 year
  • Remote management: Yes, with optional RMCARD205
  • Management software: PowerPanel® Business

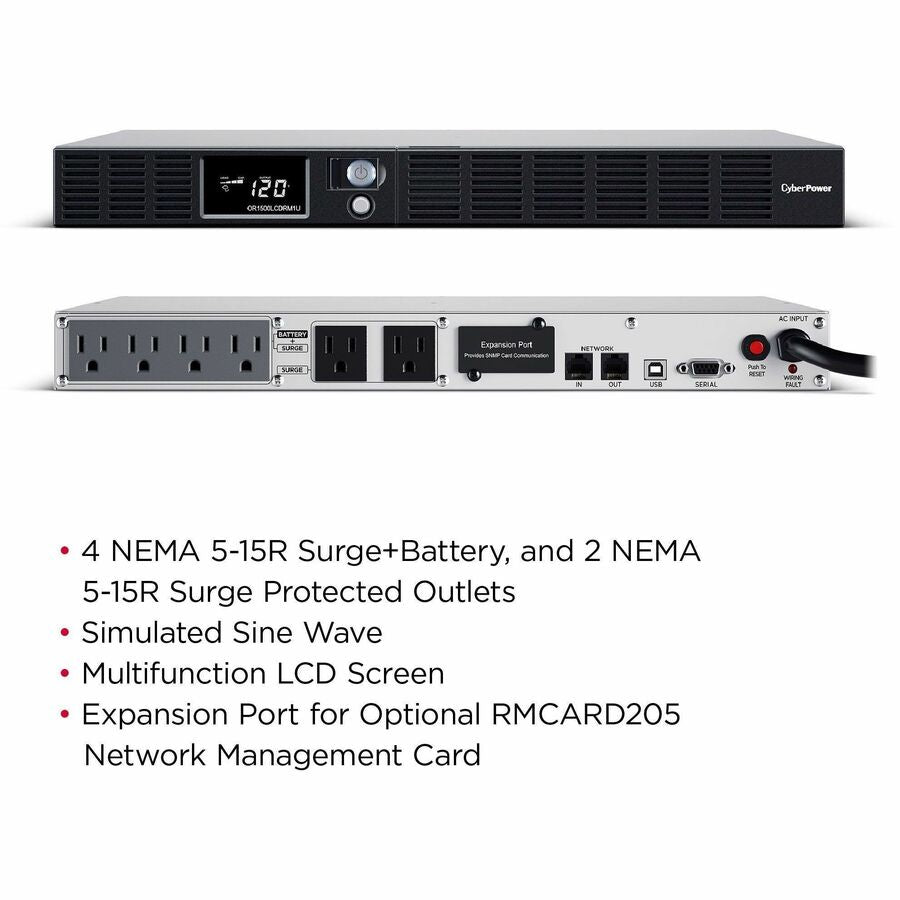

  • Outlet types: 6 � NEMA 5-15R
  • Communication: USB, Relay, SNMP
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Capacity: 1500 VA / 900 W

69 in stock

Regular price $811.28

Shipping calculated at checkout

Details

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.

More from the Manufacturer

  • Warranty: 3 year
  • Remote management: Yes, with optional RMCARD205
  • Management software: PowerPanel® Business
  • Outlet types: 6 � NEMA 5-15R
  • Communication: USB, Relay, SNMP
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Capacity: 1500 VA / 900 W
Specifications
Alarm:
Battery Mode
AVR:
Yes

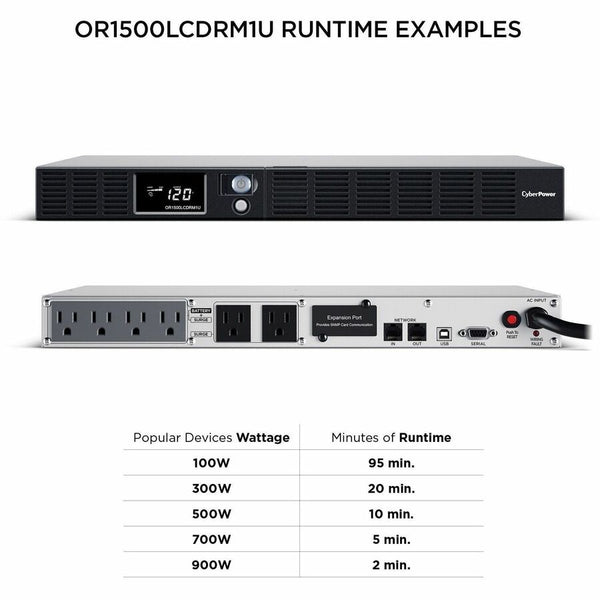

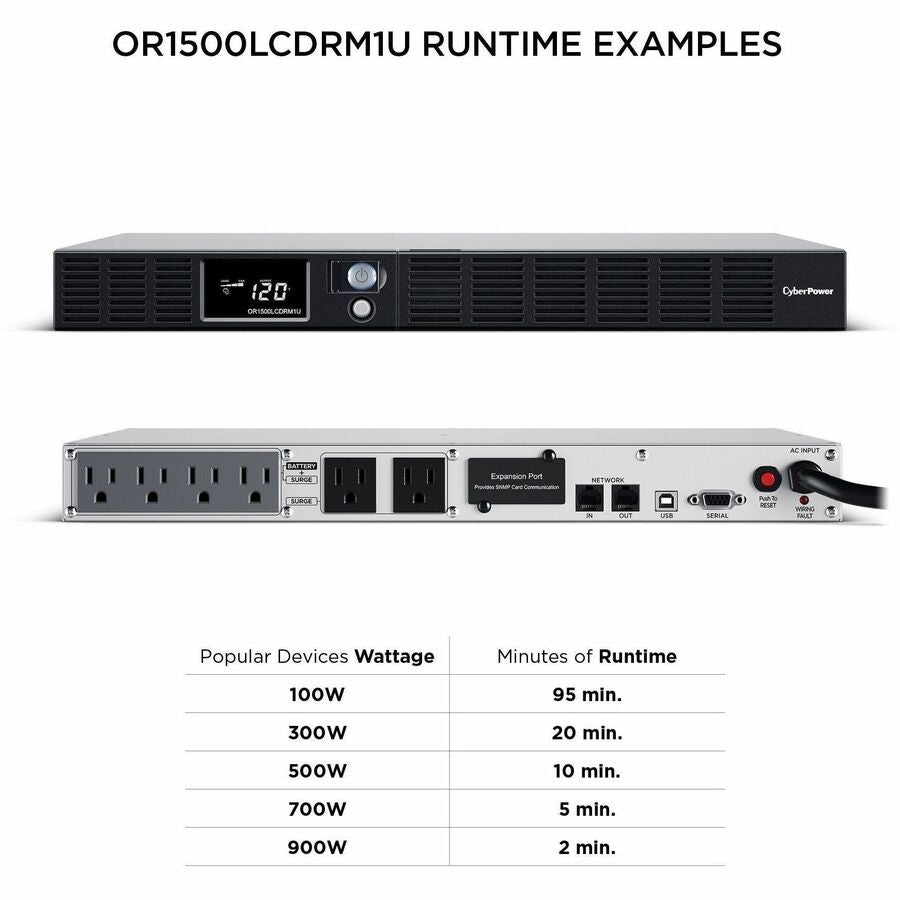

Backup/Run Time (Full Load):
2 Minute
Backup/Run Time (Half Load):
11 Minute
Battery Capacity:
9000 mAh
Battery Chemistry:
Lead Acid
Battery Size:
6V
Dataline Protection:
RJ-45,RJ-11
DC System Voltage:
6 V DC
EMI/RFI Noise Filter:
Yes
Energy Saving:
GreenPower UPS™ Bypass Design
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Rack-mountable
Input Frequency:
63 Hz
Input Voltage:
120 V AC
Input Voltage Range:
90 V AC - 140 V AC
Limited Warranty:
3 Year
Load Capacity (VA):
1500 VA
Manufacturer:
CyberPower Systems, Inc
Manufacturer Website Address:
https://www.cyberpowersystems.com/
Maximum Operating Elevation:
10000 ft
Maximum Operating Temperature:
104°F (40°C)
Maximum Storage Elevation:
50000 ft
Network Management:
SNMP Manageable
Number of Batteries:
4
Number of Battery & Surge Outlets:
4
Number of Surge-only Outlets:
2
Output Frequency:
60 Hz
Output Voltage:
120 V AC
Overload Protection:
Yes
Plug/Connector Type:
NEMA 5-15P
Product Model:
OR1500LCDRM1U
Product Series:
Smart App LCD UPS
Product Type:
Line-interactive UPS
Rack Height:
1U
Receptacle Detail:
6 x NEMA 5-15R
Receptacle Type:
NEMA 5-15R
Replaceable Battery:
Yes
Serial Port:
Yes
Software Included:
PowerPanel® Business
Status Indicators:
  • Power On
  • Multifunction LCD
Surge Energy Rating:
1150 J
Transfer Time:
8 ms
Typical Battery Recharge Time:
8 Hour
USB:
Yes
USB (HID Compliant) Port:
Yes
Waveform Type:
Simulated Sine Wave
