Crestron DM Lite HD-TXU-4KZ-111-2G-B Audio Extender Transmitter
The HD-TXU-4KZ-111-2G is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite HD-RXU-4KZ Seriesreceiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-2G to the DM Lite receiver.1
The HD-TXU-4KZ-111-2G is available in two models: HD-TXU-4KZ-111-2G-B (black) and HD-TXU-4KZ-111-2G-W (white).
Interoperability with a DM Lite HD-RXU-4KZ Series Receiver

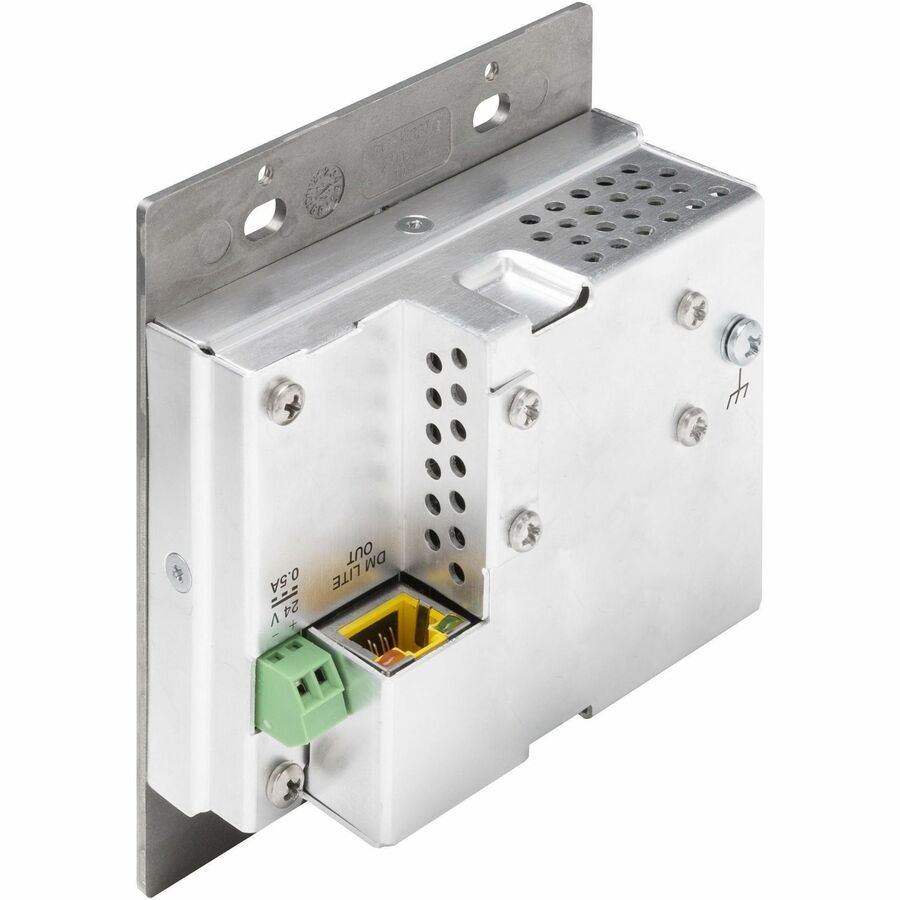

For interoperability between the HD-TXU-4KZ-111-2G and an HD-RXU-4KZ Series receiver, the DM Lite output port of the HD-TXU-4KZ-111-2G must be connected to the DM Lite input port of the HD-RXU-4KZ Series receiver.
NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-2G is paired with a DM Lite receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Lite™ switcher (HD-PS Series or HD-RX-4K-210-C-E[-POE]).
4K60 4:4:4 and HDR Support
The HD-TXU-4KZ-111-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
USB 2.0 Data Extension

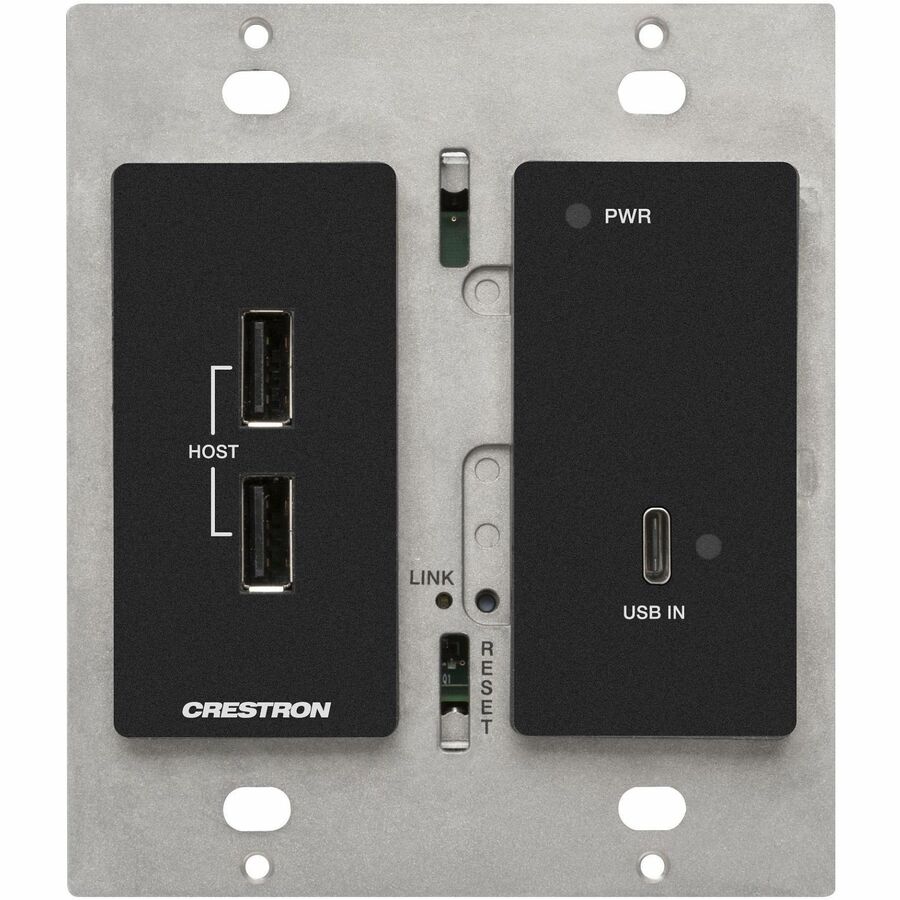

Two USB 2.0 host ports are provided on the HD-TXU-4KZ-111-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.3

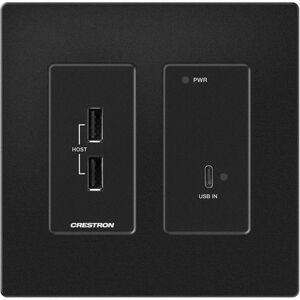

Two-Gang Wall Plate Design
The HD-TXU-4KZ-111-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-TXU-4KZ-111-2G can receive power from the remote DM Lite receiver (surface mountable only).4
Key Features- DM Lite® transmitter functionality designed to interoperate with a DM Lite HD-RXU-4KZ Series receiver
- Point-to-point extension of a USB-C® DisplayPort™ AV signal and USB 2.0 data signals over a CAT5e or higher cable
- USB-C input with DisplayPort Alt Mode capability and USB 2.0 support
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- EDID pass-through capability
- Two-gang-wall plate design with black finish
- Decorator style faceplate required (FP-G2-DM Series sold separately)
- Power from the remote DM Lite receiver (surface mountable only)
- Video Extender Transmitter is a reliable audio/video transmission extending solution
- 1080p supported video mode for optimal viewing brilliance and efficiency
- 4096 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
- Download media from your memory card with the built-in USB along with adequate power supply
- The HD-TXU-4KZ-111-2G-B video extender transmitter provides plenty of freedom with wired connectivity
- 230 ft maximum operating distance for reliable coverage and maximum portability
- 4K UHD graphics mode provides optimal video output with remarkable picture clarity
- Wall Plate form factor for added reliability and dependability
- Video Extender Transmitter with display application/usage to ensure maximum dependability and optimal performance
Call for Availability
Shipping calculated at checkout
