Crestron DM Lite 4K60 4:4:4 Receiver for HDMI, USB 2.0, and Ethernet Signal Extension over CATx Cable
The HD-RXU-4KZ-101-E is a DM Lite® 4K60 4:4:4 receiver designed to interoperate with a DM Lite HD-TXU-4KZ Seriestransmitter. The paired transmitter and receiver enable the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-RXU-4KZ-101-E to the DM Lite transmitter.1
Interoperability with a DM Lite HD-TXU-4KZ Series Transmitter
For interoperability between the HD-RXU-4KZ-101-E and an HD-TXU-4KZ Series transmitter, the DM Lite input port of the HD-RXU-4KZ-101-E must be connected to the DM Lite output port of the HD-TXU-4KZ Series transmitter
NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-E is paired with a DM Lite transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Lite™ HD-PS Series switcher.
4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
USB 2.0 Data Extension

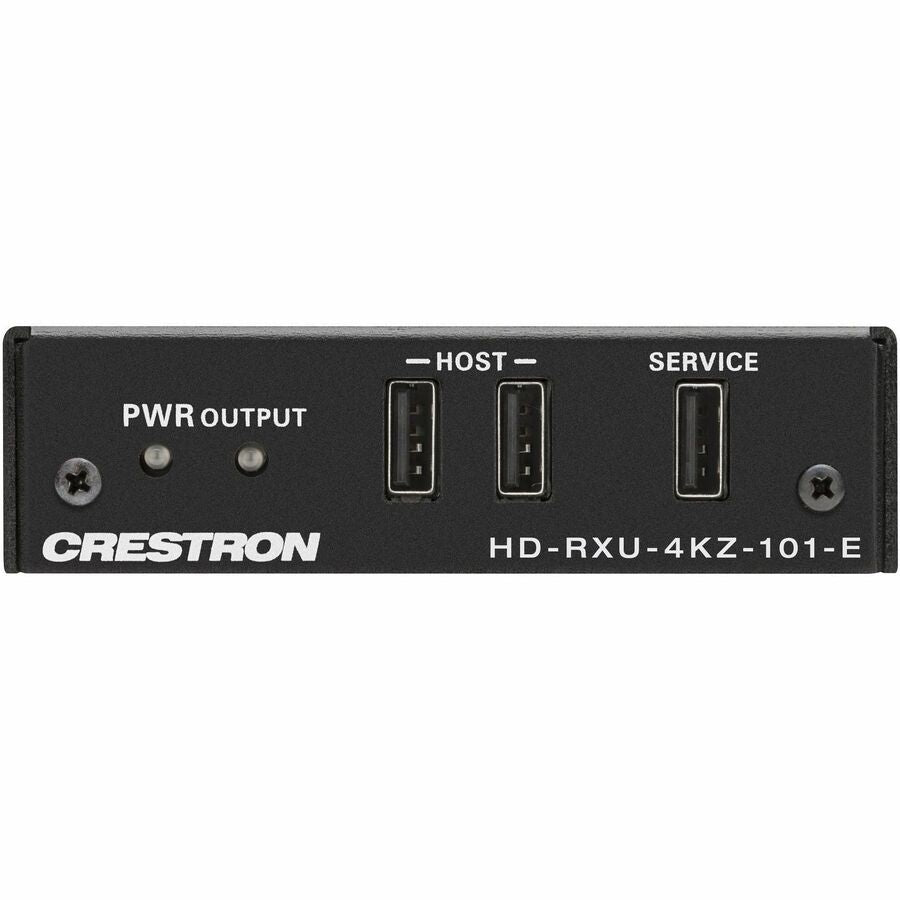

Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-E, enabling connection to a wide variety of supported USB 2.0 peripheral devices.3
Ethernet Pass-Through Capability

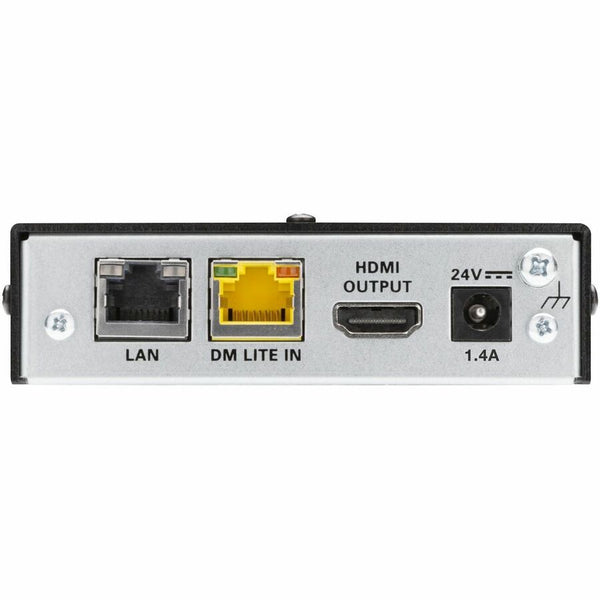

The HD-RXU-4KZ-101-E is equipped with a 100/1000 Mbps LAN port that receives an Ethernet signal transmitted over the DM Lite connection from the transmitting endpoint. The LAN port of one endpoint can be connected to an Ethernet network, while the LAN port of the other endpoint can be connected directly to an Ethernet-enabled device such as a PC.
Compact, Surface-Mountable Design

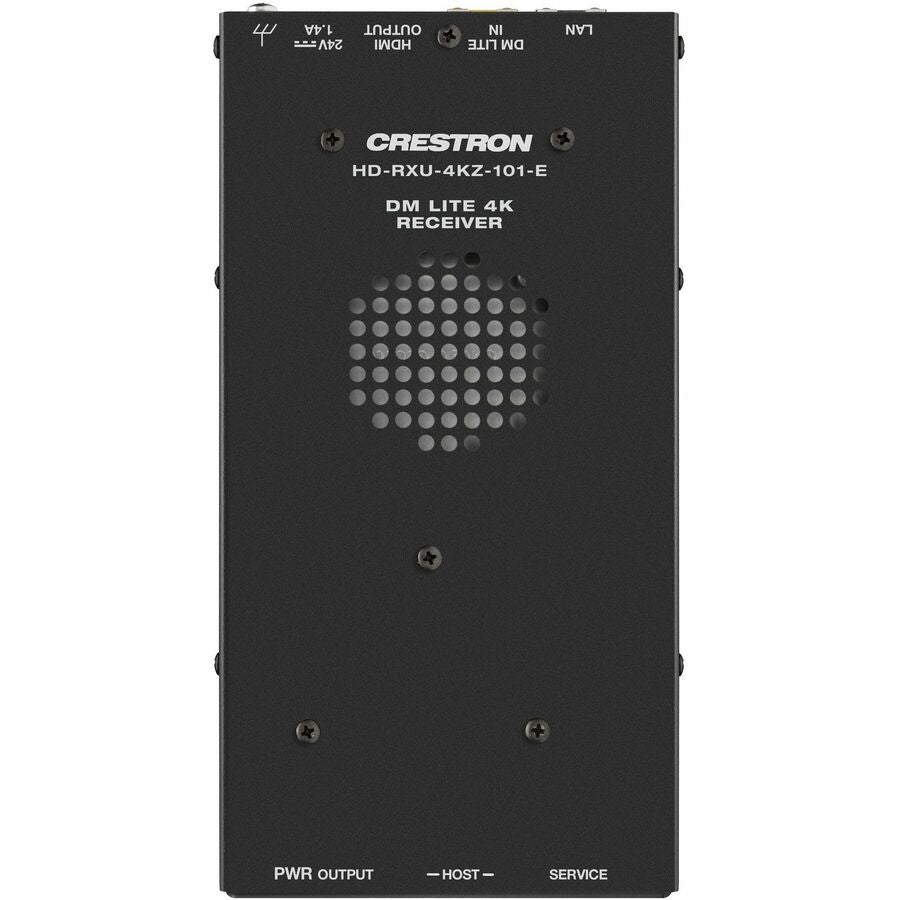

Compact in design, the HD-RXU-4KZ-101-E can be mounted onto a flat surface such as a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXU-4KZ-101-E can receive power from the included power pack or from the remote DM Lite transmitter.4
Key Features
- DM Lite® receiver functionality designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter
- Point-to-point extension of an HDMI® AV signal, USB 2.0 data signals, and Ethernet signal over a CAT5e or higher cable
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Ethernet pass-through capability
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- EDID pass-through capability
- Compact, surface-mountable design
- Power from 24VDC power pack (included) or from remote DM Lite transmitter
- Video Extender Receiver is all you need for dependable and productive audio/video transmission
- 1080p supported video mode for maximum viewing feasibility and adaptability
- 4096 x 2160 maximum video resolution for a spectacular, sharp display with added reliability
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- Download media from your memory card with the built-in USB along with adequate power supply
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The HD-RXU-4KZ-101-E video extender receiver provides plenty of freedom with wired connectivity
- 230 ft maximum operating distance to allow efficient coverage and maximum usability
- WQXGA graphics mode for an immersive and sharp viewing experience
- Surface-mountable form factor for added reliability and dependability
