Club 3D Docking Station
SKU: CSV-1595

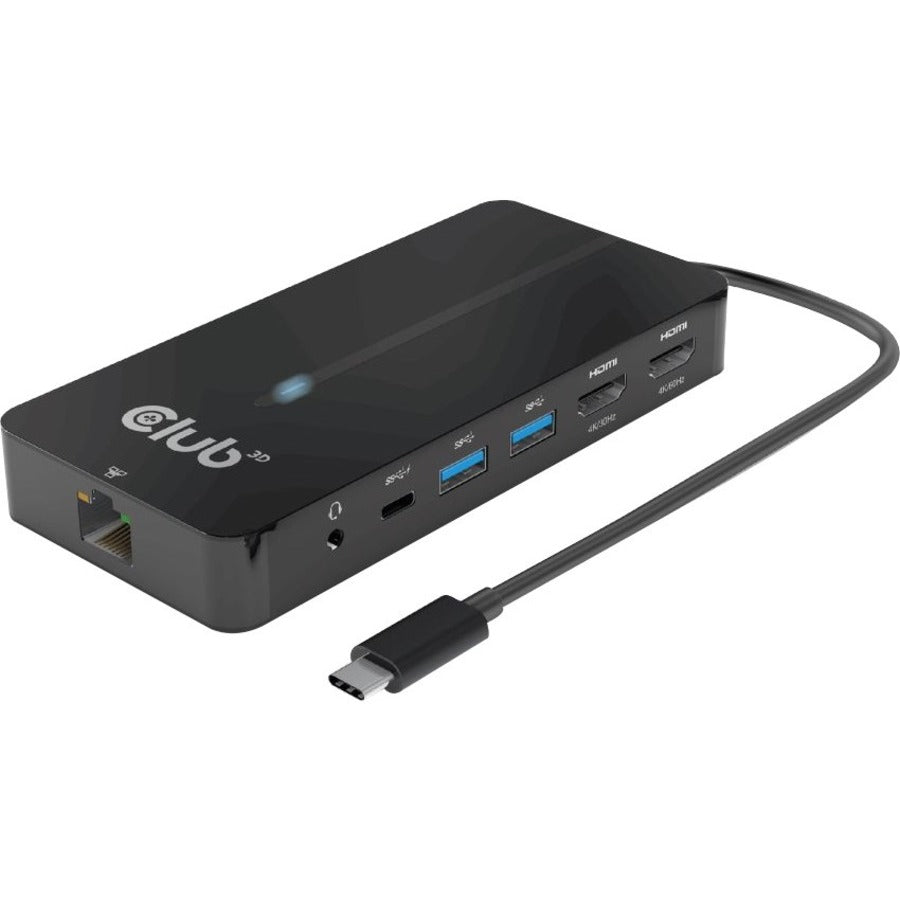

The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts
- Support DP™1.4 Alt mode
- Support HDMI™ max 4K@60Hz from the USB Type-C Display Alternate Mode function
- Support HDMI™ max 4K@30Hz from the integrated chipset in the dock
- Support HDCP1.4, HDCP 2.2 ( on the HDMI with AltMode Function only)
- Support dual displays for Mac M1 users.
- Max 5Gbps data transmission per USB Gen1 Type-A port
- Support max 7.5W(5V/1.5A) downstream charging,
- 2 USB Gen1 Type-A BC 1.2
- Support Gigabit Ethernet 10M/100M/1000M, RJ45
- Support Audio output
Call for Availability
Regular price
$149
Shipping calculated at checkout
The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts
- Support DP™1.4 Alt mode
- Support HDMI™ max 4K@60Hz from the USB Type-C Display Alternate Mode function
- Support HDMI™ max 4K@30Hz from the integrated chipset in the dock
- Support HDCP1.4, HDCP 2.2 ( on the HDMI with AltMode Function only)
- Support dual displays for Mac M1 users.
- Max 5Gbps data transmission per USB Gen1 Type-A port
- Support max 7.5W(5V/1.5A) downstream charging,
- 2 USB Gen1 Type-A BC 1.2
- Support Gigabit Ethernet 10M/100M/1000M, RJ45
- Support Audio output
Connectivity Technology:
Wired
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet
HDMI:
Yes
Headphone/Microphone Combo Port:
Yes
Host Interface:
USB Type C
Manufacturer:
Club 3D
Manufacturer Website Address:
http://www.club-3d.nl
Maximum Power Supply Wattage:
100 W
Network (RJ-45):
Yes
Number of Displays Supported:
2
Number of HDMI Ports:
2
Number of RJ-45 Ports:
1
Number of USB Type-A Ports:
2
Number of USB Type-C Ports:
1
Packaged Quantity:
1
Package Contents:
- Docking Station
- 1x Quick Install Guide (QIG)
Product Color:
Black
Product Type:
Docking Station
Screen Mode Supported:
4K
Supported Resolutions:
3840 x 2160
USB Type-A:
Yes
USB Type-C:
Yes
USB Type-C Detail:
1 x USB Gen1 Type-C 100W Female port
