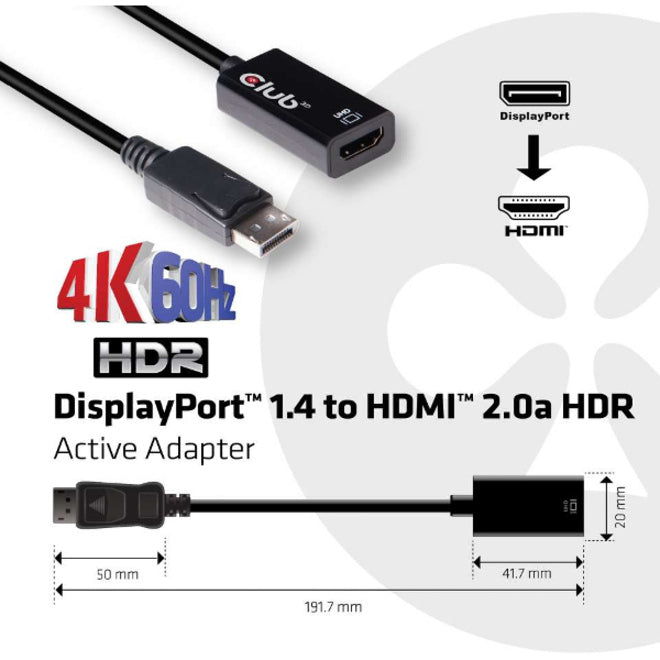

Club 3D DisplayPort 1.4 to HDMI 2.0a HDR

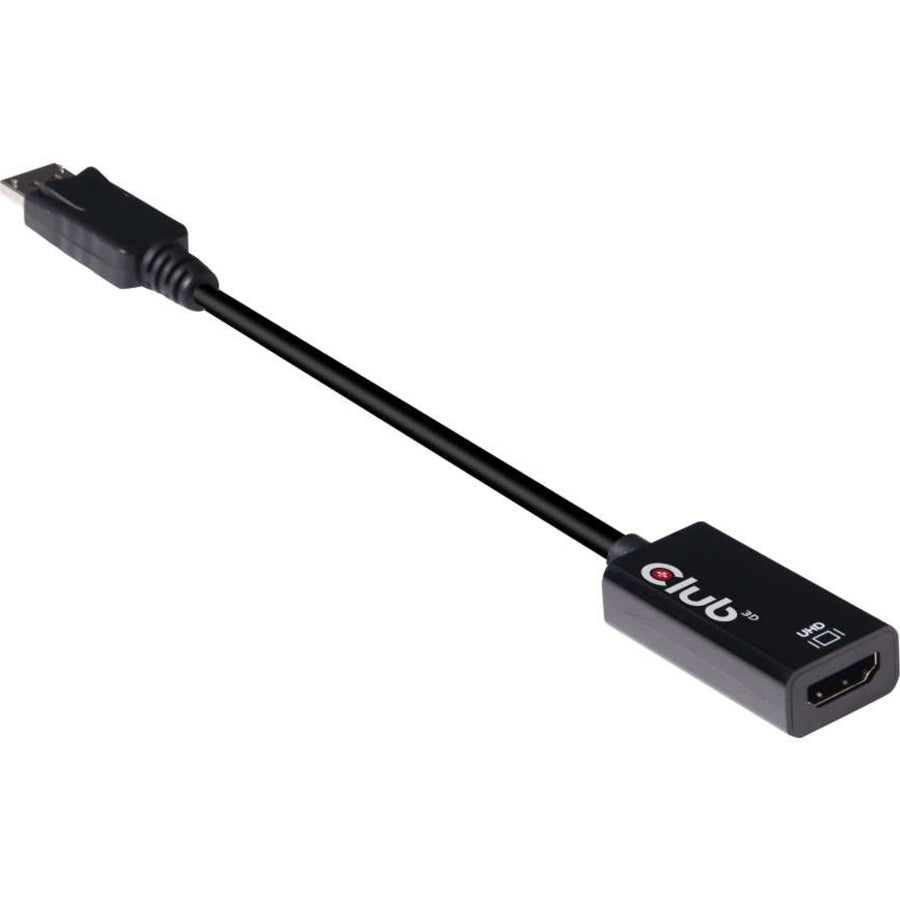

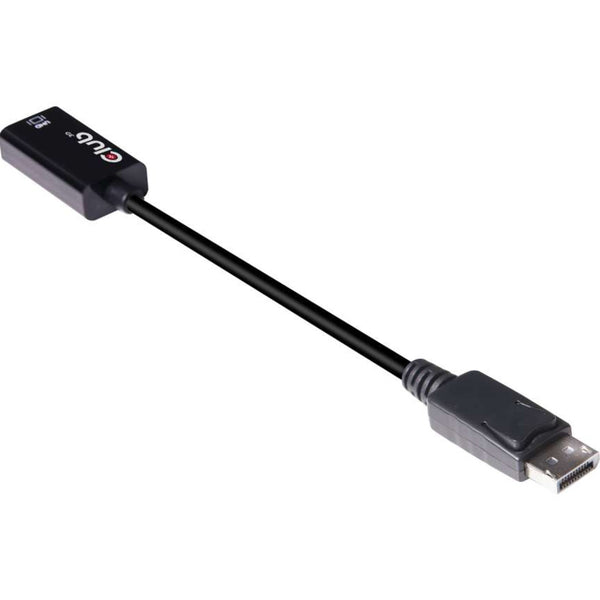

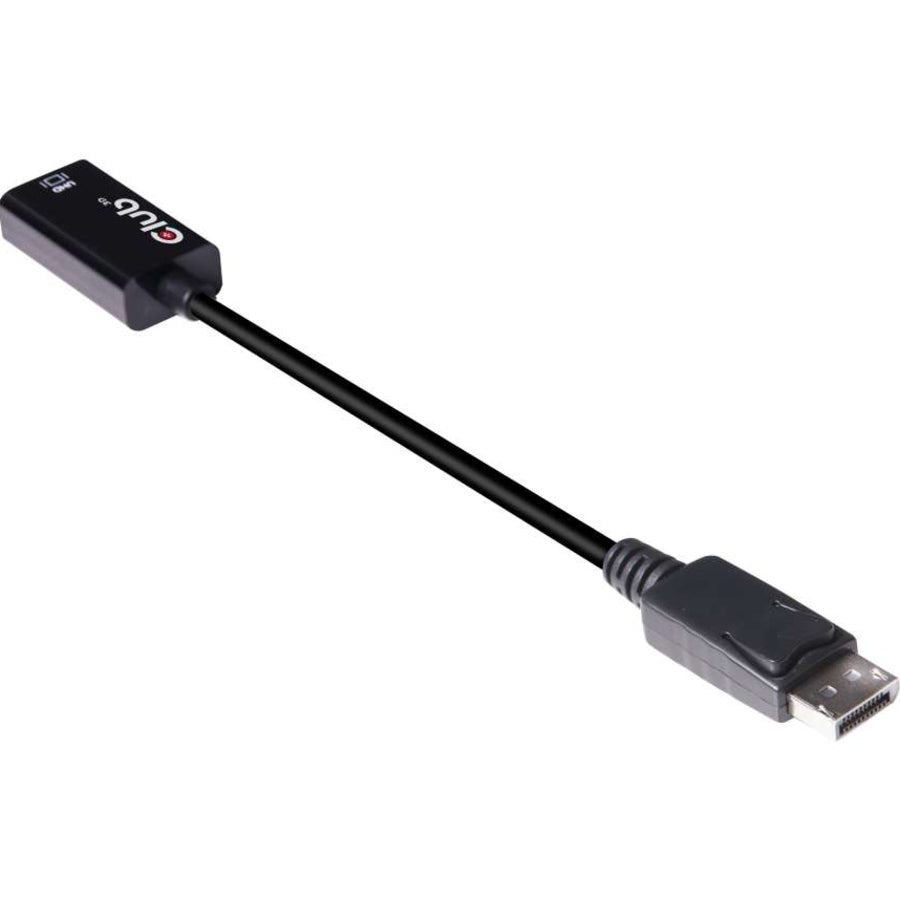

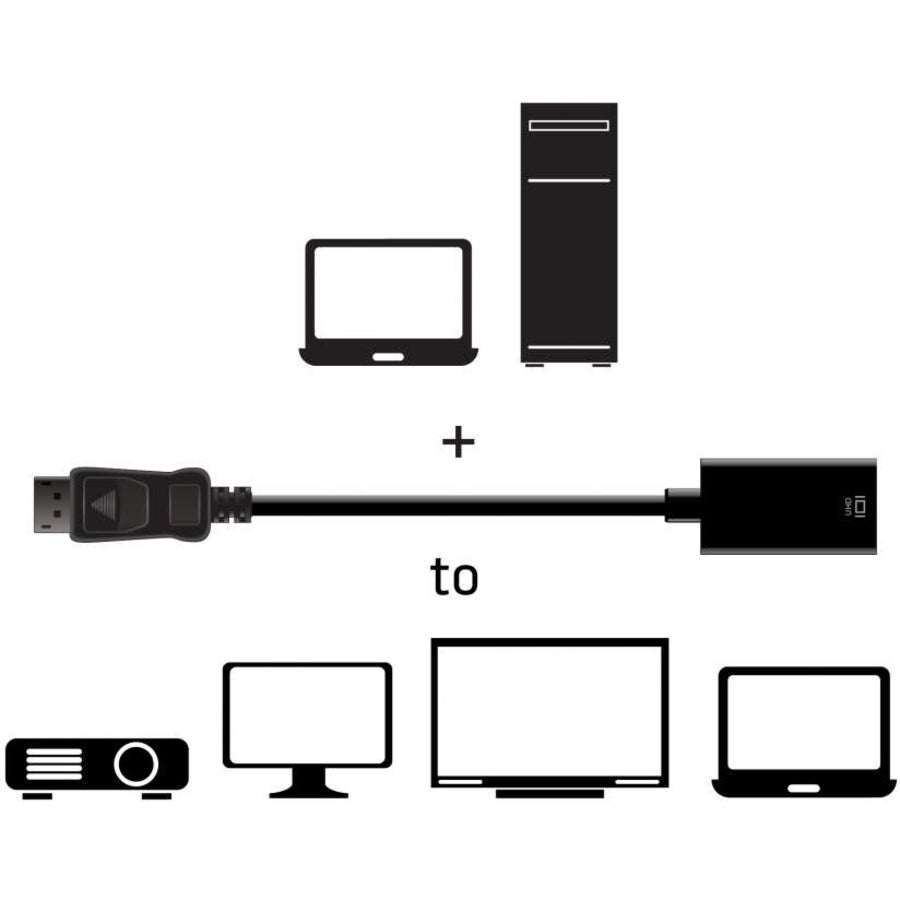

CAC-1080 - The Club3D CAC-1080 is a DisplayPort™ 1.4 to HDMI™ 2.0a active signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0a. The CAC-1080 is downwards compatible to earlier Displayport™ and HDMI™ versions, but this can influence the functionality and/or supported features such as HDR.
Resolution Support

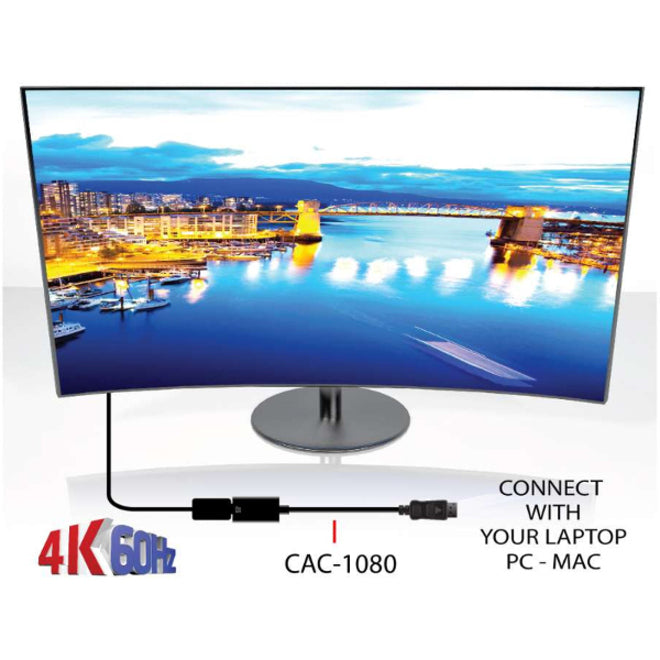

The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
- LPCM and compressed Audio encoding formats
- Audio Stream Handling
- Pass-trough of ther 3D Formats
- Frame Sequential to Stacked Top-Bottom Conversion
- DisplayPort™ to HDMI™ Stereoscopic 3D Transport
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec)
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format
- Video Stream Handling
- DisplayPort™ 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
107 in stock
Shipping calculated at checkout
CAC-1080 - The Club3D CAC-1080 is a DisplayPort™ 1.4 to HDMI™ 2.0a active signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0a. The CAC-1080 is downwards compatible to earlier Displayport™ and HDMI™ versions, but this can influence the functionality and/or supported features such as HDR.
Resolution Support
The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
- LPCM and compressed Audio encoding formats
- Audio Stream Handling
- Pass-trough of ther 3D Formats
- Frame Sequential to Stacked Top-Bottom Conversion
- DisplayPort™ to HDMI™ Stereoscopic 3D Transport
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec)
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format
- Video Stream Handling
- DisplayPort™ 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
