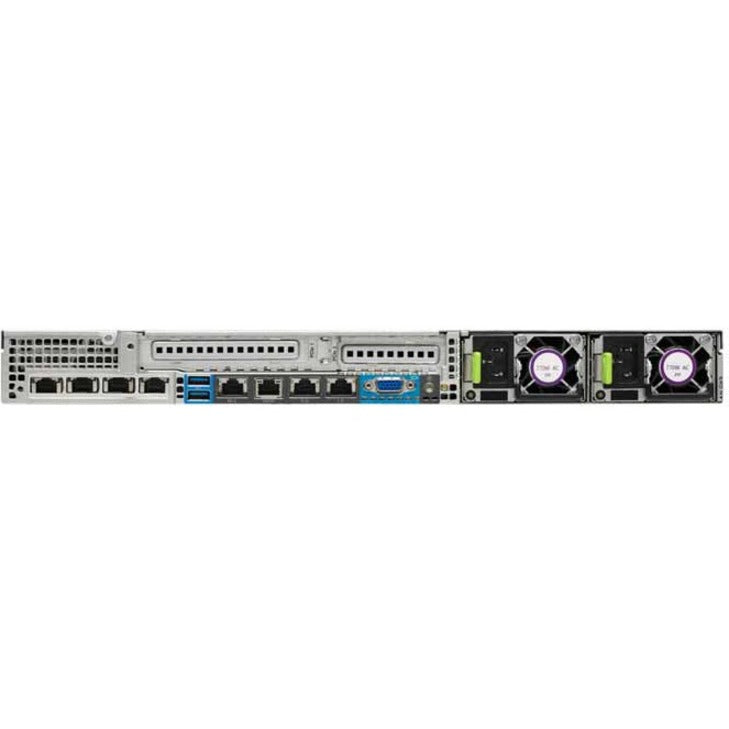

Cisco HyperFlex Server Barebone System - 1U Rack-mountable - 2 x Processor Support
SKU: HXAF220C-M4S
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Can connect up to 2 USB peripherals
- 12Gb/s SAS interface for high speed and reliability
9999 in stock
Regular price
$3,533
Shipping calculated at checkout
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
- Can connect up to 2 USB peripherals
- 12Gb/s SAS interface for high speed and reliability
Chipset Manufacturer:
Intel
Chipset Model:
C610
Controller Type:
12Gb/s SAS
Ethernet Technology:
Gigabit Ethernet
Form Factor:
Rack-mountable
Graphics Controller Model:
G200e
Graphics Memory Capacity:
8 MB
Input Voltage:
120 V AC,230 V AC
Limited Warranty:
3 Year
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com
Maximum Memory Supported:
1.50 TB
Maximum Power Supply Wattage:
770 W
Memory Standard:
DDR4-2400/PC4-19200
Memory Technology:
DDR4 SDRAM
Number of Nodes:
1
Number of PCI Express x16 Slots:
2
Number of Power Supplies Installed:
2
Number of Processors Supported:
2
Number of Total Expansion Bays:
8
Number of USB 3.0 Ports:
2
Processor Supported:
Xeon
Product Line:
HyperFlex
Product Series:
HXAF220c M4
Product Type:
Server Barebone System
Rack Height:
1U
RAID Supported:
No
Total Number of Expansion Slots:
2
Total Number of Memory Slots:
24
Total Number of USB Ports:
2
