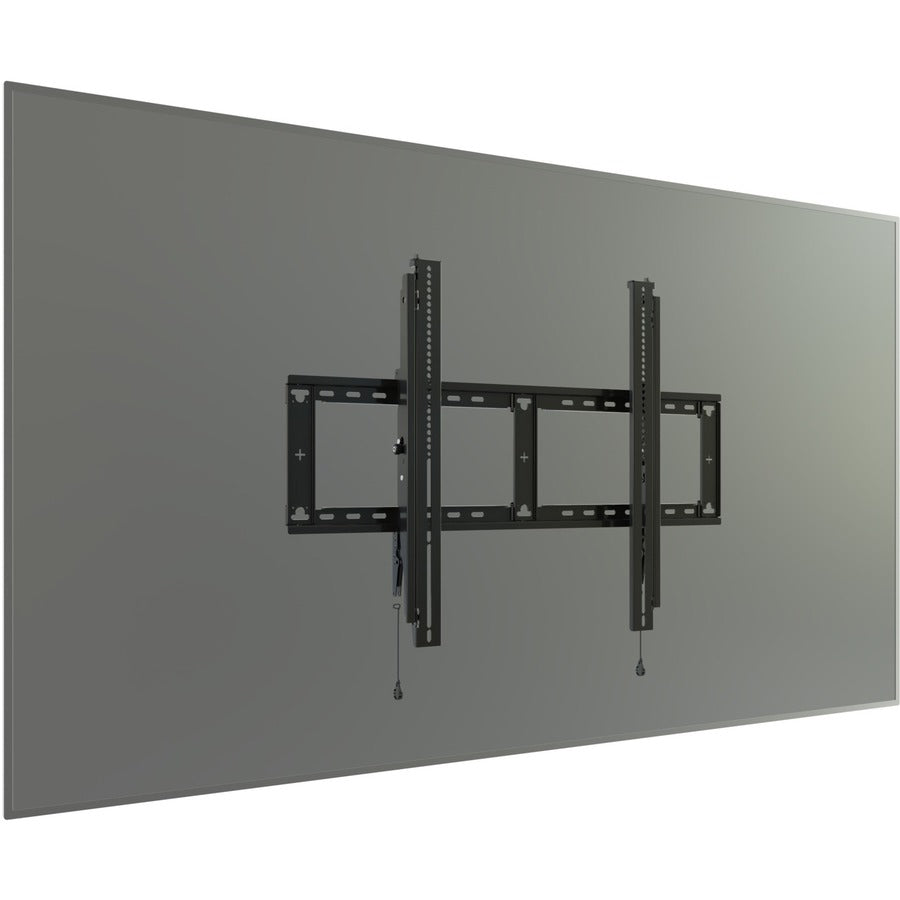

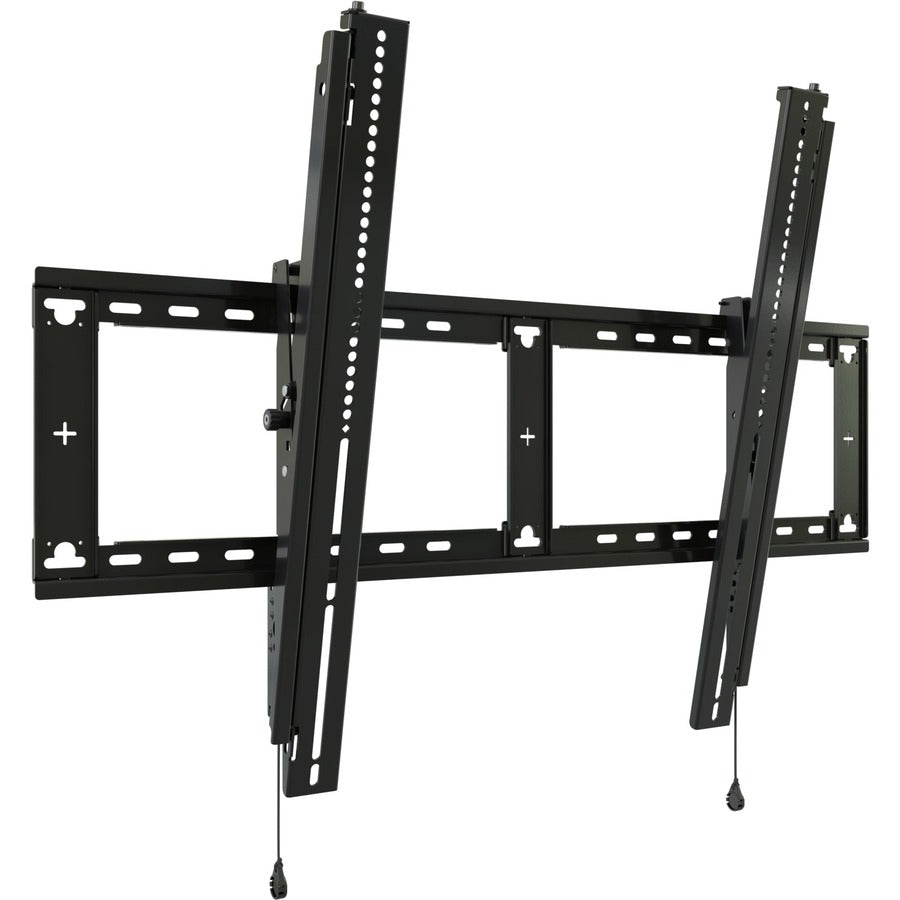

Chief Fit X-Large Tilt Display Wall Mount - For 49-98 inch Displays - Tilt TV Mount - VESA Wall Mount
SKU: RXT3
The Fit series RXT3 is an extra-large tilt display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5" (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 650 mm
- Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
32 in stock
Regular price
$260
Shipping calculated at checkout
The Fit series RXT3 is an extra-large tilt display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5" (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 650 mm
- Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
Application/Usage:
Wall
Device Supported:
Display,Wall Plate
Features:
12° Tilt,Landscape Mounting,Adjustable Tilt,Lateral Adjustment,Quick Release Mechanism
Height Adjustable:
Yes
Limited Warranty:
10 Year
Manufacturer:
Legrand Group
Manufacturer Website Address:
http://www.legrand.us
Maximum Load Capacity:
250 lb
Maximum Screen Size Supported:
98"
Minimum Extended Height:
0.75"
Minimum Screen Size Supported:
49"
Mount Profile:
Low Profile
Package Contents:
- Extra-Large Fit™ Tilt Display Wall Mount
- 0.75" (19 mm) Post-Installation Leveling Screw
- 10" (254 mm) Ball
Product Color:
Black
Product Line:
Extra-Large Fit
Product Type:
Wall Mount
