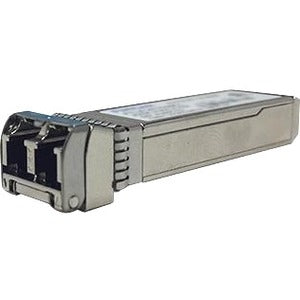

Chelsio 10G long reach SFP + Optic Module
SKU: SM10G-LR
Chelsio's SM10G-LR 10Gb/s 1310nm Single Mode SFP+ optical transceivers are designed and certified for use with Chelsio 10-Gigabit Ethernet links up to 10km. The Chelsio SM10G-LR Transceiver is compatible with Chelsio's T5-based Unified Wire Adapters.
The T5 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other data center applications. The fifth-generation T5 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE and iWARP RDMA processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.
The T5 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other data center applications. The fifth-generation T5 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE and iWARP RDMA processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.
- Duplex LC connector
- Built-in digital diagnostic functions
- Uncooled 1310nm DFB laser
- Receiver limiting electrical interface
- Maximum link length of 10km
- Improved pluggable form factor
- Supports 9.95 to 10.5 Gb/s bit rates
- Hot-pluggable SFP+ footprint
Call for Availability
Regular price
$48.58
Sale price
$62
On Sale
Shipping calculated at checkout
Chelsio's SM10G-LR 10Gb/s 1310nm Single Mode SFP+ optical transceivers are designed and certified for use with Chelsio 10-Gigabit Ethernet links up to 10km. The Chelsio SM10G-LR Transceiver is compatible with Chelsio's T5-based Unified Wire Adapters.
The T5 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other data center applications. The fifth-generation T5 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE and iWARP RDMA processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.
The T5 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other data center applications. The fifth-generation T5 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE and iWARP RDMA processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.
- Duplex LC connector
- Built-in digital diagnostic functions
- Uncooled 1310nm DFB laser
- Receiver limiting electrical interface
- Maximum link length of 10km
- Improved pluggable form factor
- Supports 9.95 to 10.5 Gb/s bit rates
- Hot-pluggable SFP+ footprint
Application/Usage:
Data Networking
Compatibility:
- T520-CR
- T520-LL-CR
- T520-SO-CR
- T540-CR
- T520-OCP-SO
- T580-CR (QSA Mode)
- T580-LP-CR (QSA Mode)
- T580-SO-CR (QSA Mode)
Environmentally Friendly:
Yes
Ethernet Technology:
10 Gigabit Ethernet
Fiber Mode Supported:
Single-mode
Form Factor:
Hot-pluggable
Interfaces/Ports Details:
1 x 10GBase-LR
Manufacturer:
Chelsio Communications
Manufacturer Website Address:
http://www.chelsio.com
Media Type Supported:
Optical Fiber
Network Technology:
10GBase-LR
Product Model:
SM10G-LR
Product Type:
SFP+
Total Number of Ports:
1
