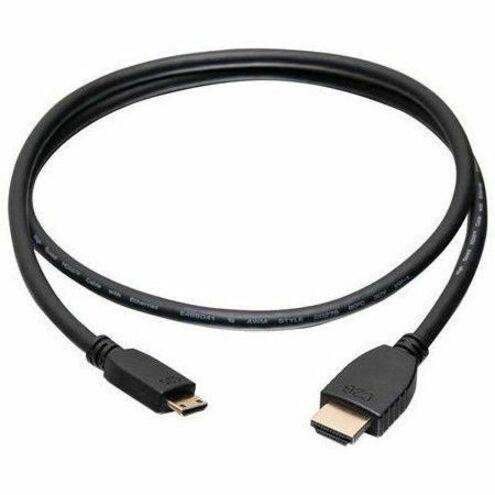

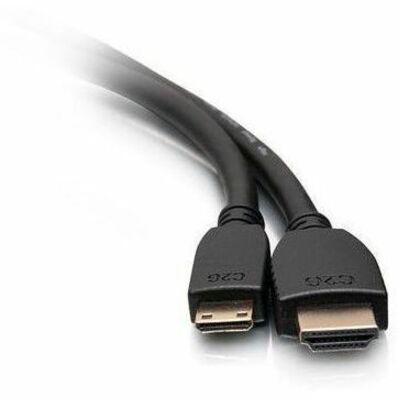

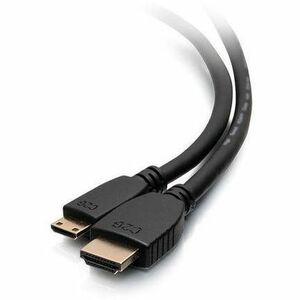

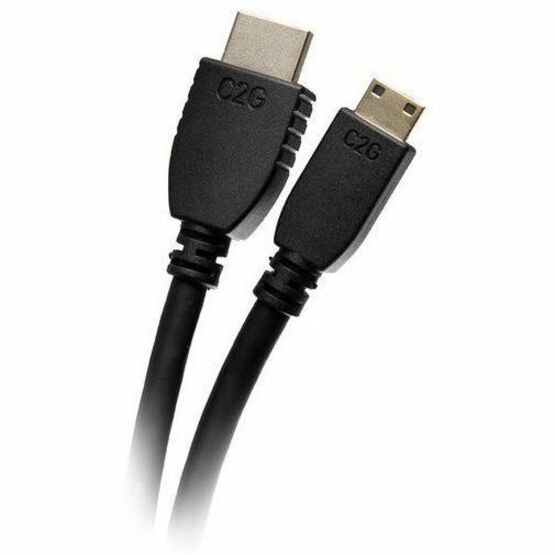

C2G 6ft High Speed HDMI® to Mini HDMI Cable with Ethernet - Black
This High Speed HDMI to Mini HDMI Cable with Ethernet supports all HDMI 2.0 features and is perfect for connecting a smartphone, tablet or other mobile device to an HD display for home theater or desktop applications. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.
Electrical Characteristics
Nominal Impedance - 100 ± 10
Nominal Velocity of Propagation - > 1.78ns
DC Resistance - 376/km
Dielectric Strength - AC 500V - 1 minute
Insulation Resistance - 100
Physical Characteristics
Voltage Rating - 30V
Minimum Bend Radius - 70mm
Temperature Rating - 80°C
Approvals - RoHS Compliant
Warranty - Lifetime
Package Type - Polybag
Conductor 1 (5 pair)
Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.8mm
Drain Wire - 30AWG (7/0.10), Tinned Copper
Shield - Aluminum Foil, 100% Coverage
Conductor 2 (4 conductors)
Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.6mm
Connector
Connector Type - HDMI® - Type A
Pin Construction - Phosphor Copper
Plating - 3m Gold
Insulation - Black LCP
Hood - 45P™ PVC, Black
Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm
Connector
Connector Type - HDMI® - Type C
Pin Construction - Phosphor Copper
Plating - 3m Gold
Insulation - Black LCP
Hood - 45P™ PVC, Black
Dimensions (HxWxL) - 8.3 x 14.0 x 32.7mm
Overall Cable
Drain Wire - 30AWG (7/0.10), Tinned Copper
Foil Shield - Aluminum Foil, 100% Coverage
Braided Shield - 16/4/0.12, Aluminum/Magnesium, 50% Coverage
Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm
- 6ft High Speed HDMI to Mini HDMI Cable with Ethernet
- HDMI M to HDMI Mini M Cable
- Supports resolutions up to 4K (4096 X 2160) at 60Hz
- Audio / Video Cable
- Supports 32 audio channels for an immersive audio experience
- 6 ft / 6 foot / 6' / 6 Feet
- C2G Lifetime Warranty
- Connector 1: (1) HDMI Male
- Connector 2: (1) HDMI Mini Male
- Certifications: NDAA 889, Prop 65, REACH, RoHS, TSCA
14 in stock
Shipping calculated at checkout
This High Speed HDMI to Mini HDMI Cable with Ethernet supports all HDMI 2.0 features and is perfect for connecting a smartphone, tablet or other mobile device to an HD display for home theater or desktop applications. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.
Electrical Characteristics
Nominal Impedance - 100 ± 10
Nominal Velocity of Propagation - > 1.78ns
DC Resistance - 376/km
Dielectric Strength - AC 500V - 1 minute
Insulation Resistance - 100
Physical Characteristics
Voltage Rating - 30V
Minimum Bend Radius - 70mm
Temperature Rating - 80°C
Approvals - RoHS Compliant
Warranty - Lifetime
Package Type - Polybag
Conductor 1 (5 pair)
Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.8mm
Drain Wire - 30AWG (7/0.10), Tinned Copper
Shield - Aluminum Foil, 100% Coverage
Conductor 2 (4 conductors)
Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.6mm
Connector
Connector Type - HDMI® - Type A
Pin Construction - Phosphor Copper
Plating - 3m Gold
Insulation - Black LCP
Hood - 45P™ PVC, Black
Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm
Connector
Connector Type - HDMI® - Type C
Pin Construction - Phosphor Copper
Plating - 3m Gold
Insulation - Black LCP
Hood - 45P™ PVC, Black
Dimensions (HxWxL) - 8.3 x 14.0 x 32.7mm
Overall Cable
Drain Wire - 30AWG (7/0.10), Tinned Copper
Foil Shield - Aluminum Foil, 100% Coverage
Braided Shield - 16/4/0.12, Aluminum/Magnesium, 50% Coverage
Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm
- 6ft High Speed HDMI to Mini HDMI Cable with Ethernet
- HDMI M to HDMI Mini M Cable
- Supports resolutions up to 4K (4096 X 2160) at 60Hz
- Audio / Video Cable
- Supports 32 audio channels for an immersive audio experience
- 6 ft / 6 foot / 6' / 6 Feet
- C2G Lifetime Warranty
- Connector 1: (1) HDMI Male
- Connector 2: (1) HDMI Mini Male
- Certifications: NDAA 889, Prop 65, REACH, RoHS, TSCA
