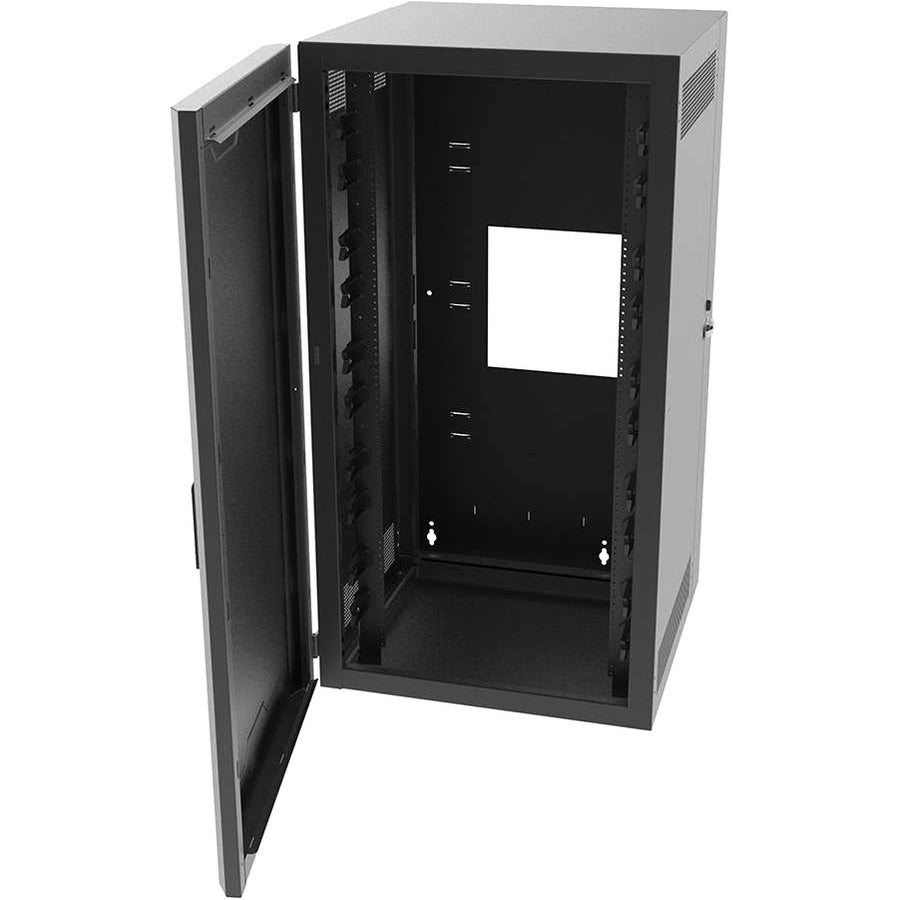

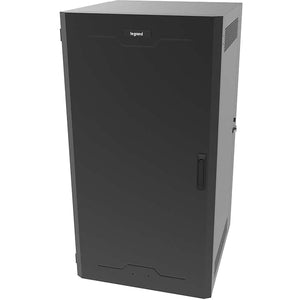

C2G 26RU Swing-Out Wall-Mount Cabinet with Solid Door - Black - TAA
The Legrand SWM Series wall mount cabinets provide a convenient and easy to use solution, perfect for secure networks, small data closets, retail, educational, edge computing, and all areas where floor space is limited.
The SWM Series wall mount cabinets ship completely assembled which speeds installation time. The hinged, swing out middle section provides easy accessibility to the front and the rear of the equipment while mounted to the wall.
The SWM cabinets are made of rugged welded steel and have a UL 2416 certified load rating of 275 lbs. The small form factor cabinets are PCI compliant, have a 23.5" equipment mounting depth and feature a solid locking door that provides security for the installed equipment.
- Certified load rating of 275 lbs per UL2416
- Full swing handle
- Reversible hinged perforated front locking door
- Vented sides with mounting locations for optional cooling fans
- 12-24 threaded mounting holes
- Universal mounting pattern for industry standard PDUs
- Cable knockouts at top and bottom of fixed rear pan
- Large cutout in rear pan for access to wall
- Included Cable Rings: Includes front cable management rings
- Rear Cable Entry:Large cable cut-out at rear of cabinet for large cable bundles through the wall and several smaller cable egress knockouts on rear panel
- Deep Footprint: Mount up to 23.5" deep equipment in the cabinet
- Bonding and Grounding: UL2416 bonding and grounding
- Adjustable Rack Space: Inside 26 RU EIA rack rails are adjustable
- Rugged Construction: Welded steel construction with 300lb load rating per UL2416
- Secure: Features a locking solid front, reversible hinged door
- Wall-Mounted: Perfect for applications and areas where floor space is at a premium
Call for Availability
Shipping calculated at checkout
The Legrand SWM Series wall mount cabinets provide a convenient and easy to use solution, perfect for secure networks, small data closets, retail, educational, edge computing, and all areas where floor space is limited.
The SWM Series wall mount cabinets ship completely assembled which speeds installation time. The hinged, swing out middle section provides easy accessibility to the front and the rear of the equipment while mounted to the wall.
The SWM cabinets are made of rugged welded steel and have a UL 2416 certified load rating of 275 lbs. The small form factor cabinets are PCI compliant, have a 23.5" equipment mounting depth and feature a solid locking door that provides security for the installed equipment.
- Certified load rating of 275 lbs per UL2416
- Full swing handle
- Reversible hinged perforated front locking door
- Vented sides with mounting locations for optional cooling fans
- 12-24 threaded mounting holes
- Universal mounting pattern for industry standard PDUs
- Cable knockouts at top and bottom of fixed rear pan
- Large cutout in rear pan for access to wall
- Included Cable Rings: Includes front cable management rings
- Rear Cable Entry:Large cable cut-out at rear of cabinet for large cable bundles through the wall and several smaller cable egress knockouts on rear panel
- Deep Footprint: Mount up to 23.5" deep equipment in the cabinet
- Bonding and Grounding: UL2416 bonding and grounding
- Adjustable Rack Space: Inside 26 RU EIA rack rails are adjustable
- Rugged Construction: Welded steel construction with 300lb load rating per UL2416
- Secure: Features a locking solid front, reversible hinged door
- Wall-Mounted: Perfect for applications and areas where floor space is at a premium
- 26RU Swing-Out Wall-Mount Cabinet with Solid Door - Black - TAA
- 2 x Front Mounting Rails
- 2 x Front Door Lock Keys
- 8 x Cable Management Rings
- Owner's Manual
