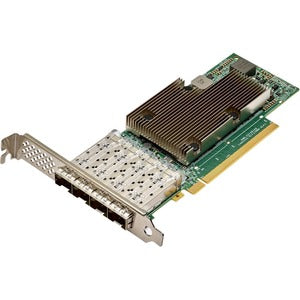

Broadcom Quad-Port 25 Gb/s SFP28 Ethernet PCI Express 4.0 x16 Network Interface Card
SKU: BCM957504-P425G
The Broadcom BCM957504-P425G is a quad-port 25 Gb/s PCI Express 4.0 x16 network interface card that supports SFP28/SFP+ optical modules and copper directattach cables. The card uses the Broadcom BCM57504 100GbE MAC controller with an integrated quad-channel 25GbE SFI transceiver.
Features
Quad-port 25-Gigabit SFP28 Ethernet network interface card for data centers or cloud computing.
Features
- Quad-port pluggable media interface, which is compatible with an SFP28/SFP+ optical transceiver or a copper direct-attach cable.
- Industry's most secure PCIe adapter solution leveraging Broadcom's BroadSAFE® technology
- Multi-Host Support: Dual-Host x8 mode.
- Fully compliant with the SFF-8402 standard.
- x16 PCI Express 4.0 compliant.
- SR-IOV with up to 1k virtual functions (VFs).
- Function-Level Reset (FLR) support.
- TruFlow™ flow processing engine.
- Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap.
- vSwitch Acceleration.
- Tunnel-aware stateless offloads.
- DCB support - PFC, ETS, QCN, DCBx.
- RDMA over Converged Ethernet (RoCE)
- Network Controller Sideband Interface (NC-SI).
- SMBus 2.0.
- MCTP over SMBus.
- Jumbo frames up to 9 KB.
- Advanced congestion avoidance.
- Multiqueue, NetQueue, and VMQ.
- IPv4 and IPv6 offloads.
- TCP, UDP, and IP checksum offloads.
- Large send offload (LSO).
- Large receive offload (LRO).
- TCP segmentation offload (TSO).
- Receive-side scaling (RSS).
- Transmit-side scaling (TSS).
- VLAN insertion/removal.
- Interrupt coalescing.
- Network boot-PXE, UEFI.
- iSCSI boot.
- MSI and MSI-X.
- FRU support.
Quad-port 25-Gigabit SFP28 Ethernet network interface card for data centers or cloud computing.
- 25Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- The PCI Express 4.0 x16 interface provides smooth data transfer and outstanding performance
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- 25GBase-X network technology for convenient, easy sharing of data and information with maximum feasibility
10 in stock
Regular price
$641.53
Shipping calculated at checkout
The Broadcom BCM957504-P425G is a quad-port 25 Gb/s PCI Express 4.0 x16 network interface card that supports SFP28/SFP+ optical modules and copper directattach cables. The card uses the Broadcom BCM57504 100GbE MAC controller with an integrated quad-channel 25GbE SFI transceiver.
Features
Quad-port 25-Gigabit SFP28 Ethernet network interface card for data centers or cloud computing.
Features
- Quad-port pluggable media interface, which is compatible with an SFP28/SFP+ optical transceiver or a copper direct-attach cable.
- Industry's most secure PCIe adapter solution leveraging Broadcom's BroadSAFE® technology
- Multi-Host Support: Dual-Host x8 mode.
- Fully compliant with the SFF-8402 standard.
- x16 PCI Express 4.0 compliant.
- SR-IOV with up to 1k virtual functions (VFs).
- Function-Level Reset (FLR) support.
- TruFlow™ flow processing engine.
- Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap.
- vSwitch Acceleration.
- Tunnel-aware stateless offloads.
- DCB support - PFC, ETS, QCN, DCBx.
- RDMA over Converged Ethernet (RoCE)
- Network Controller Sideband Interface (NC-SI).
- SMBus 2.0.
- MCTP over SMBus.
- Jumbo frames up to 9 KB.
- Advanced congestion avoidance.
- Multiqueue, NetQueue, and VMQ.
- IPv4 and IPv6 offloads.
- TCP, UDP, and IP checksum offloads.
- Large send offload (LSO).
- Large receive offload (LRO).
- TCP segmentation offload (TSO).
- Receive-side scaling (RSS).
- Transmit-side scaling (TSS).
- VLAN insertion/removal.
- Interrupt coalescing.
- Network boot-PXE, UEFI.
- iSCSI boot.
- MSI and MSI-X.
- FRU support.
Quad-port 25-Gigabit SFP28 Ethernet network interface card for data centers or cloud computing.
- 25Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- The PCI Express 4.0 x16 interface provides smooth data transfer and outstanding performance
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- 25GBase-X network technology for convenient, easy sharing of data and information with maximum feasibility
Expansion Slot Type:
SFP28
Form Factor:
Plug-in Card
Host Interface:
PCI Express 4.0 x16
Manufacturer:
Broadcom Corporation
Manufacturer Website Address:
https://www.broadcom.com
Media Type Supported:
Optical Fiber
Network Technology:
25GBase-X
Product Line:
NetXtreme
Product Model:
BCM957504-P425G
Product Series:
E
Product Type:
25Gigabit Ethernet Card
Total Number of Ports:
4
