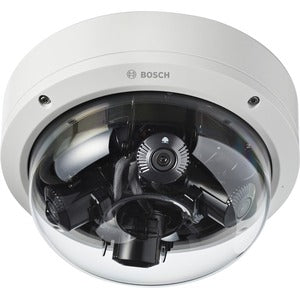

Bosch FlexiDome NDM-7703-A 20 Megapixel Indoor/Outdoor Network Camera - Color, Monochrome - 1 - Dome - White - TAA Compliant
SKU: NDM-7703-A
The FLEXIDOME multi 7000i camera is built for highquality performance, featuring four independent imagers with motorized zoom/focus lenses. It helps to simplify installation and lower costs while maintaining flexibility in coverage. With four scenes simultaneously in a single camera, it is perfect for wide area coverage, traffic intersections and building corners. When the lenses are tilted at the right angle, the camera can even cover an area up to full 360°. Additionally, the zoom capability allows the camera to obtain detailed coverage for more distant areas.
Functions
20-megapixel multi-directional overviews
Four independent 5-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 20 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.
Intelligent Video Analytics
The camera uses the latest generation of Bosch Intelligent Video Analytics (IVA). Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. By using the zoom function of the lens, the camera can provide automatic person detection over distances up to 130 m / 430 ft.
Functions
20-megapixel multi-directional overviews
Four independent 5-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 20 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.
Intelligent Video Analytics
The camera uses the latest generation of Bosch Intelligent Video Analytics (IVA). Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. By using the zoom function of the lens, the camera can provide automatic person detection over distances up to 130 m / 430 ft.
- For remote surveillance needs, this network camera is best suited
- Up to 2592 x 1944 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 7.70 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.9 maximum aperture for better light absorption and dependable, better-quality results
- 2.3x optical zoom ensures maximum surveillance productivity without compromising quality
- Zoom lens type provides enhanced visual resolution and effectively maintains focus when its focal length changes
- AC power source type for your network camera better reliance and maximum energy dependability
- Wall Mount mount type is reliable and allows trouble-free and easy usage
- Ingress Protection feature for maximum efficiency and convenience
Call for Availability
Regular price
$2,455
Shipping calculated at checkout
The FLEXIDOME multi 7000i camera is built for highquality performance, featuring four independent imagers with motorized zoom/focus lenses. It helps to simplify installation and lower costs while maintaining flexibility in coverage. With four scenes simultaneously in a single camera, it is perfect for wide area coverage, traffic intersections and building corners. When the lenses are tilted at the right angle, the camera can even cover an area up to full 360°. Additionally, the zoom capability allows the camera to obtain detailed coverage for more distant areas.
Functions
20-megapixel multi-directional overviews
Four independent 5-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 20 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.
Intelligent Video Analytics
The camera uses the latest generation of Bosch Intelligent Video Analytics (IVA). Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. By using the zoom function of the lens, the camera can provide automatic person detection over distances up to 130 m / 430 ft.
Functions
20-megapixel multi-directional overviews
Four independent 5-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 20 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.
Intelligent Video Analytics
The camera uses the latest generation of Bosch Intelligent Video Analytics (IVA). Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. By using the zoom function of the lens, the camera can provide automatic person detection over distances up to 130 m / 430 ft.
- For remote surveillance needs, this network camera is best suited
- Up to 2592 x 1944 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 7.70 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.9 maximum aperture for better light absorption and dependable, better-quality results
- 2.3x optical zoom ensures maximum surveillance productivity without compromising quality
- Zoom lens type provides enhanced visual resolution and effectively maintains focus when its focal length changes
- AC power source type for your network camera better reliance and maximum energy dependability
- Wall Mount mount type is reliable and allows trouble-free and easy usage
- Ingress Protection feature for maximum efficiency and convenience
Color Family:
White
Color Supported:
Color,Monochrome
Connectivity Technology:
Wired
Diameter:
8.7"
Durability:
Water Resistant,Impact Resistant,Dust Resistant,Snow Resistant,Wind Resistance,Rain Resistant
Effective Camera Resolution:
20 Megapixel
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
Ethernet
Features:
Ingress Protection,SD Card Local Storage,Region of Interest,Tamper Detection,Noise Detection,Day/Night,White Balance,Mirror,Privacy Masking,Microphone In
Field of View:
Wide: 85.1� x 62� (H x V) Tele: 38.7� x 29.0� (H x V)
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Indoor/Outdoor
Ingress Protection Rating:
IP66
Input Voltage:
24 V AC
Lens Included:
Yes
Lens Type:
Zoom
Longest Shutter Speed:
1/25 Second
Manufacturer:
The Bosch Group
Manufacturer Website Address:
http://www.bosch.com
Maximum Aperture:
f/1.9
Maximum Focal Length:
7.70 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
100%
Maximum Operating Temperature:
131°F (55°C)
Maximum Video Resolution:
2592 x 1944
Minimum Focal Length:
3.70 mm
Minimum Operating Temperature:
-58°F (-50°C)
Mount Type:
Wall Mount,Pipe Mount,Pendant Mount,Pole Mount,Ceiling Mount,Parapet Mount,Conduit Mount
Network (RJ-45):
Yes
Number of Sensors:
4
Optical Zoom:
2.3x
Packaged Quantity:
1
Power Source Type:
AC,PoE+
Product Color:
White
Product Line:
FlexiDome
Product Model:
NDM-7703-A
Product Series:
7000i
Product Type:
Network Camera
Protocols:
IPv4,IPv6,UDP,TCP,HTTP,HTTPS,RTP/RTCP,IGMP,IGMP v2,IGMP v3,ICMP,ICMPv6,RTSP,FTP,ARP,SNMPv1 (MIB2),SNMPv3 (MIB2),802.1X,DNS,DNSv6,DDNS,SOAP,LLDP,CHAP
Remote Management:
Yes
Shortest Shutter Speed:
1/15000 Second
Storage Type:
Memory Card
TAA Compliant:
Yes
Video Formats:
H.265,H.265 (HEVC),H.264,MJPEG
