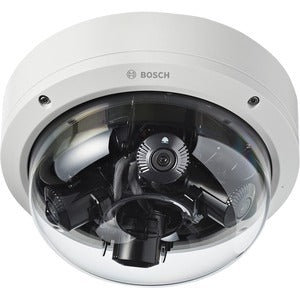

Bosch FLEXIDOME multi 12 Megapixel Indoor/Outdoor Network Camera - Color, Monochrome - Dome - White - TAA Compliant
SKU: NDM-7702-A
The FLEXIDOME multi 7000i camera is built for highquality performance, featuring four independent imagers with motorized zoom/focus lenses. It helps to simplify installation and lower costs while maintaining flexibility in coverage. With four scenes simultaneously in a single camera, it is perfect for wide area coverage, traffic intersections and building corners. When the lenses are tilted at the right angle, the camera can even cover an area up to full 360°. Additionally, the zoom capability allows the camera to obtain detailed coverage for more distant areas.
Functions
12-megapixel multi-directional overviews
Four independent 3-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 12 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.
Functions
12-megapixel multi-directional overviews
Four independent 3-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 12 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.
- Network camera - Helps achieve high-quality video results
- Up to 2048 x 1536 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 7.70 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.9 maximum aperture for productive capturing according to focal length and lighting conditions
- 2.1x optical zoom for bringing the subject closer for maximum surveillance efficiency
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
- PoE+ power source type for your network camera provides maximum energy feasibility and added surveillance productivity
- Wall Mount mount type ensures optimal results and maximum convenience
- SD Card Local Storage feature for better reliance and usability
Call for Availability
Regular price
$1,935
Shipping calculated at checkout
The FLEXIDOME multi 7000i camera is built for highquality performance, featuring four independent imagers with motorized zoom/focus lenses. It helps to simplify installation and lower costs while maintaining flexibility in coverage. With four scenes simultaneously in a single camera, it is perfect for wide area coverage, traffic intersections and building corners. When the lenses are tilted at the right angle, the camera can even cover an area up to full 360°. Additionally, the zoom capability allows the camera to obtain detailed coverage for more distant areas.
Functions
12-megapixel multi-directional overviews
Four independent 3-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 12 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.
Functions
12-megapixel multi-directional overviews
Four independent 3-megapixel imagers with separate remote zoom and focus lenses capture very highquality images with a total resolution of 12 megapixels.
Each of the four imagers can be set-up flexibly with 3- axis movement along a circular track. This enables surround coverage, capturing detailed images from every angle for comprehensive video coverage with four separate views from a single IP address.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
Two-way audio and built-in microphone
Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Alternatively, there is an integrated microphone to capture crisp and clear audio. By using the integrated or external microphone, audio detection can be used to generate alarms to alert the security operator quicker and act more proactively. If required by local laws, the microphone can be blocked via a secure license key.
- Network camera - Helps achieve high-quality video results
- Up to 2048 x 1536 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 7.70 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.9 maximum aperture for productive capturing according to focal length and lighting conditions
- 2.1x optical zoom for bringing the subject closer for maximum surveillance efficiency
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
- PoE+ power source type for your network camera provides maximum energy feasibility and added surveillance productivity
- Wall Mount mount type ensures optimal results and maximum convenience
- SD Card Local Storage feature for better reliance and usability
Color Family:
White
Color Supported:
Color,Monochrome
Connectivity Technology:
Wired
Diameter:
8.7"
Durability:
Snow Resistant,Wind Resistance,Water Resistant,Dust Resistant,Vandal Resistant
Effective Camera Resolution:
12 Megapixel
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS)
Ethernet Technology:
Ethernet
Features:
SD Card Local Storage,Wide Dynamic Range,Region of Interest,Automatic White Balance,Day/Night,Dynamic Noise Reduction,Privacy Masking,Back Light Compensation (BLC),Defog,Cross Line Detection,Enter/Exit Detector,Tamper Detection
Field of View:
Wide: 85.1� x 62� (H x V) Tele: 38.7� x 29.0� (H x V)
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1/2.7"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Indoor/Outdoor
Ingress Protection Rating:
IP66
Input Voltage:
24 V AC
Lens Included:
Yes
Lens Type:
Varifocal
Longest Shutter Speed:
1/25 Second
Manufacturer:
The Bosch Group
Manufacturer Website Address:
http://www.bosch.com
Maximum Aperture:
f/1.9
Maximum Focal Length:
7.70 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
100%
Maximum Operating Temperature:
131°F (55°C)
Maximum Video Resolution:
2048 x 1536
Minimum Focal Length:
3.70 mm
Minimum Operating Temperature:
-58°F (-50°C)
Mount Type:
Wall Mount,Pipe Mount,In-ceiling,Conduit Mount,Ceiling Mount,Surface Mount,Junction Box Mount,Gang Box Mount,Pendant Mount,Pole Mount
Network (RJ-45):
Yes
Number of Sensors:
4
Optical Zoom:
2.1x
Power Source Type:
PoE+,AC
Product Color:
White
Product Line:
FLEXIDOME multi
Product Series:
7000i
Product Type:
Network Camera
Protocols:
IPv4,IPv6,UDP,TCP,HTTP,HTTPS,RTP/RTCP,IGMP,IGMP v2,IGMP v3,ICMP,ICMPv6,RTSP,FTP,ARP,SNMPv1 (MIB2),SNMPv3 (MIB2),802.1X,DNS,DNSv6,DDNS,SOAP,LLDP,CHAP
Remote Management:
Yes
Shortest Shutter Speed:
1/15000 Second
Storage Type:
Memory Card
TAA Compliant:
Yes
Video Formats:
H.265,H.264,MJPEG,H.265 (HEVC)
