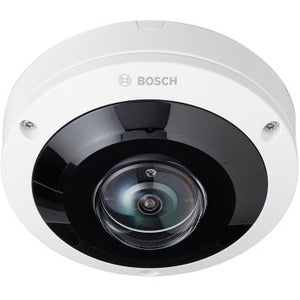

Bosch FlexiDome 12 Megapixel Indoor/Outdoor Full HD Network Camera - Color, Monochrome - Dome - White
SKU: NDS-5704-F360LE
The NDS-5704-F360LE is a discreet and aesthetic panoramic camera for indoor and outdoor surveillance.
Its stereographic, panoramic lens provides full 360° coverage without blind spots, ideal for surveillance applications that require wide area coverage in a single, detailed view. The camera offers full situational awareness and simultaneous high-resolution zoomedin images. The high-end system on chip (SoC) provides dewarping for easy integration and flexible viewing and recording.
Built-in Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts. Audio AI gives meaning to the sounds it captures. The camera's integrated IR provides the flexibility to control IR intensity in multiple zones to prevent IR saturation. Additionally, with its wide range of inputs and outputs, such as Alarm and video output for HDMI-compatible devices, it can be used for any application.
The camera has an IK10 and IP66 design to protect itself against vandalism and all weather conditions.
Functions
12MP sensor resolution
The camera offers a 12MP sensor to optimize for the amount of details required. This offers 30 fps to ensure real-time motion in your scenes. Together with its stereographic lens the image circle offers a 9MP effective resolution.
Panoramic vision and Intelligent Video Analytics
Combining Bosch Intelligent Video Analytics software with full panoramic vision, produces an extremely powerful surveillance tool, which enriches full situational awareness. With intelligent tracking, movement can be followed continuously throughout the full image circle. There is no need to hand off tracking from one camera to another, greatly simplifying movement analysis.
The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. Calibration is quick and easy - just enter the mounting height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Camera Trainer
Based on examples of target objects and non-target objects, the Camera Trainer program uses machine learning to allow the user to define objects of interest and generate detectors for them. In contrast to the moving objects that the Intelligent Video Analytics application detects, the Camera Trainer program detects both moving and non-moving objects and classifies them immediately. Using Configuration Manager, you can configure the Camera Trainer program using both live video as well as recordings available through the respective camera. The resulting detectors can be downloaded and uploaded for distribution to other cameras.
A free of charge license is required to activate the Camera Trainer program.
Its stereographic, panoramic lens provides full 360° coverage without blind spots, ideal for surveillance applications that require wide area coverage in a single, detailed view. The camera offers full situational awareness and simultaneous high-resolution zoomedin images. The high-end system on chip (SoC) provides dewarping for easy integration and flexible viewing and recording.
Built-in Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts. Audio AI gives meaning to the sounds it captures. The camera's integrated IR provides the flexibility to control IR intensity in multiple zones to prevent IR saturation. Additionally, with its wide range of inputs and outputs, such as Alarm and video output for HDMI-compatible devices, it can be used for any application.
The camera has an IK10 and IP66 design to protect itself against vandalism and all weather conditions.
Functions
12MP sensor resolution
The camera offers a 12MP sensor to optimize for the amount of details required. This offers 30 fps to ensure real-time motion in your scenes. Together with its stereographic lens the image circle offers a 9MP effective resolution.
Panoramic vision and Intelligent Video Analytics
Combining Bosch Intelligent Video Analytics software with full panoramic vision, produces an extremely powerful surveillance tool, which enriches full situational awareness. With intelligent tracking, movement can be followed continuously throughout the full image circle. There is no need to hand off tracking from one camera to another, greatly simplifying movement analysis.
The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. Calibration is quick and easy - just enter the mounting height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Camera Trainer
Based on examples of target objects and non-target objects, the Camera Trainer program uses machine learning to allow the user to define objects of interest and generate detectors for them. In contrast to the moving objects that the Intelligent Video Analytics application detects, the Camera Trainer program detects both moving and non-moving objects and classifies them immediately. Using Configuration Manager, you can configure the Camera Trainer program using both live video as well as recordings available through the respective camera. The resulting detectors can be downloaded and uploaded for distribution to other cameras.
A free of charge license is required to activate the Camera Trainer program.
- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 1.26 mm maximum focal length provides incredible detail and how effective is your network camera
- f/2.0 maximum aperture for better light absorption and dependable, better-quality results
- Up to 65.62 ft of night vision
- Full HD recording format for stunning, vivid video results with maximum efficiency
- Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
- Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
- Enjoy HD quality videos on your HDTV with the HDMI port facility
Call for Availability
Regular price
$1,316
Shipping calculated at checkout
The NDS-5704-F360LE is a discreet and aesthetic panoramic camera for indoor and outdoor surveillance.
Its stereographic, panoramic lens provides full 360° coverage without blind spots, ideal for surveillance applications that require wide area coverage in a single, detailed view. The camera offers full situational awareness and simultaneous high-resolution zoomedin images. The high-end system on chip (SoC) provides dewarping for easy integration and flexible viewing and recording.
Built-in Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts. Audio AI gives meaning to the sounds it captures. The camera's integrated IR provides the flexibility to control IR intensity in multiple zones to prevent IR saturation. Additionally, with its wide range of inputs and outputs, such as Alarm and video output for HDMI-compatible devices, it can be used for any application.
The camera has an IK10 and IP66 design to protect itself against vandalism and all weather conditions.
Functions
12MP sensor resolution
The camera offers a 12MP sensor to optimize for the amount of details required. This offers 30 fps to ensure real-time motion in your scenes. Together with its stereographic lens the image circle offers a 9MP effective resolution.
Panoramic vision and Intelligent Video Analytics
Combining Bosch Intelligent Video Analytics software with full panoramic vision, produces an extremely powerful surveillance tool, which enriches full situational awareness. With intelligent tracking, movement can be followed continuously throughout the full image circle. There is no need to hand off tracking from one camera to another, greatly simplifying movement analysis.
The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. Calibration is quick and easy - just enter the mounting height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Camera Trainer
Based on examples of target objects and non-target objects, the Camera Trainer program uses machine learning to allow the user to define objects of interest and generate detectors for them. In contrast to the moving objects that the Intelligent Video Analytics application detects, the Camera Trainer program detects both moving and non-moving objects and classifies them immediately. Using Configuration Manager, you can configure the Camera Trainer program using both live video as well as recordings available through the respective camera. The resulting detectors can be downloaded and uploaded for distribution to other cameras.
A free of charge license is required to activate the Camera Trainer program.
Its stereographic, panoramic lens provides full 360° coverage without blind spots, ideal for surveillance applications that require wide area coverage in a single, detailed view. The camera offers full situational awareness and simultaneous high-resolution zoomedin images. The high-end system on chip (SoC) provides dewarping for easy integration and flexible viewing and recording.
Built-in Intelligent Video Analytics enriches full situational awareness and triggers relevant alerts. Audio AI gives meaning to the sounds it captures. The camera's integrated IR provides the flexibility to control IR intensity in multiple zones to prevent IR saturation. Additionally, with its wide range of inputs and outputs, such as Alarm and video output for HDMI-compatible devices, it can be used for any application.
The camera has an IK10 and IP66 design to protect itself against vandalism and all weather conditions.
Functions
12MP sensor resolution
The camera offers a 12MP sensor to optimize for the amount of details required. This offers 30 fps to ensure real-time motion in your scenes. Together with its stereographic lens the image circle offers a 9MP effective resolution.
Panoramic vision and Intelligent Video Analytics
Combining Bosch Intelligent Video Analytics software with full panoramic vision, produces an extremely powerful surveillance tool, which enriches full situational awareness. With intelligent tracking, movement can be followed continuously throughout the full image circle. There is no need to hand off tracking from one camera to another, greatly simplifying movement analysis.
The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Specifically designed for the most demanding environments. It is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. Calibration is quick and easy - just enter the mounting height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Camera Trainer
Based on examples of target objects and non-target objects, the Camera Trainer program uses machine learning to allow the user to define objects of interest and generate detectors for them. In contrast to the moving objects that the Intelligent Video Analytics application detects, the Camera Trainer program detects both moving and non-moving objects and classifies them immediately. Using Configuration Manager, you can configure the Camera Trainer program using both live video as well as recordings available through the respective camera. The resulting detectors can be downloaded and uploaded for distribution to other cameras.
A free of charge license is required to activate the Camera Trainer program.
- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 1.26 mm maximum focal length provides incredible detail and how effective is your network camera
- f/2.0 maximum aperture for better light absorption and dependable, better-quality results
- Up to 65.62 ft of night vision
- Full HD recording format for stunning, vivid video results with maximum efficiency
- Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
- Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
- Enjoy HD quality videos on your HDTV with the HDMI port facility
Color Family:
White
Color Supported:
Color,Monochrome
Connectivity Technology:
Wired
Country of Origin:
Thailand
Diameter:
5.8"
Durability:
Vandal Resistant,Weather Resistant,Scratch Resistant,UV Resistant,Water Proof,Impact Resistant,Rain Resistant,Dust Resistant
Effective Camera Resolution:
12 Megapixel
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS)
Ethernet Technology:
Gigabit Ethernet
Features:
Wide Dynamic Range,Region of Interest,ePTZ,White Balance,Noise Reduction,Privacy Masking,Cross Line Detection,Noise Detection,SD Card Local Storage,Built-in Microphone
Field of View:
182° (H) x 182° (V)
Form Factor:
Dome
HDMI:
Yes
HD Recording:
Yes
Image Sensor Size:
1/2.3"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Indoor/Outdoor
Ingress Protection Rating:
IP66
Input Voltage:
12 V DC,24 V AC
Lens Included:
Yes
Lens Mount Type:
Board Mount
Lens Type:
Fixed
Longest Shutter Speed:
1/25 Second
Manufacturer:
The Bosch Group
Manufacturer Website Address:
http://www.bosch.com
Maximum Aperture:
f/2.0
Maximum Focal Length:
1.26 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity:
100%
Maximum Operating Temperature:
122°F (50°C)
Maximum Video Resolution:
1920 x 1080
Minimum Operating Temperature:
-40°F (-40°C)
Mount Type:
Surface Mount,Junction Box Mount,Gang Box Mount,Conduit Mount
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Distance:
65.62 ft
Night Vision Type:
Infrared
Package Contents:
- FLEXIDOME Panoramic 5100i IR
- 1 x Camera Base
- 1 x Camera dome cover
- 1 x TR20 Allen key for camera installation
- 1 x 8-pin Audio and I/O connector
- 1 x 2-pin power connector
- 1 x RJ-45 punch-through aid
- 2 x M20 rubber grommets (attached to the camera)
- 1 x Quick installation guide
- 1 x Safety information
- 3 x Installer UX labels
- 1 x Mount plate
Power Source Type:
DC,AC,PoE
Product Color:
White
Product Line:
FlexiDome
Product Series:
5100i
Product Type:
Network Camera
Protocols:
IPv4,IPv6,UDP,TCP,HTTP,HTTPS,DNS,DNSv6,DDNS,IGMP v2,IGMP v3,ICMP,ICMPv6,FTP,ARP,DHCP,APIPA,DiffServ (QoS),iSCSI,UPnP (SSDP),SMTP,802.1X
Recording Formats:
Full HD
Remote Management:
Yes
Shortest Shutter Speed:
1/500 Second
Storage Type:
Memory Card
Video Formats:
H.265,H.264,MJPEG
