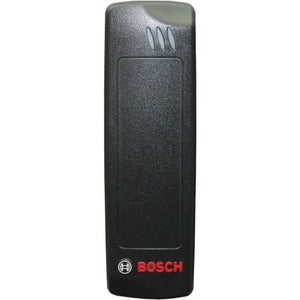

Bosch ARD-AYBS6260 Card Reader, MIFARE Classic
SKU: ARD-AYBS6260
The LECTUS duo classic family comes in an attractive mullion design for wall and mullion mounting. The keypad version can be used to enter a PIN Code; or activate a custom feature like a long term open state of an entrance.
The LECTUS duo readers are fully compatible with the Bosch access management portfolio, including the management software systems (BIS/ACE, AMS and APE), the access modular controllers (AMC2) and the MIFARE and card technologies.
The support of 13.56MHZ credential formats offers a migration path for proximity installations. The reader is easily configurable via DIP switch settings to enable and disable MIFARE Classic reading and CSN or Bosch code reading only.
The user can configure the reader to read either Bosch coded MIFARE Classic credentials or the MIFARE Classic ISO14443A CSN.
During the operation, the user receives feedback from three LED indicators and a beeper. The logo on the reader is illuminated in the dark.
The reader is IP65 rated and appropriate for indoor and outdoor use.
The LECTUS duo readers are fully compatible with the Bosch access management portfolio, including the management software systems (BIS/ACE, AMS and APE), the access modular controllers (AMC2) and the MIFARE and card technologies.
The support of 13.56MHZ credential formats offers a migration path for proximity installations. The reader is easily configurable via DIP switch settings to enable and disable MIFARE Classic reading and CSN or Bosch code reading only.
The user can configure the reader to read either Bosch coded MIFARE Classic credentials or the MIFARE Classic ISO14443A CSN.
During the operation, the user receives feedback from three LED indicators and a beeper. The logo on the reader is illuminated in the dark.
The reader is IP65 rated and appropriate for indoor and outdoor use.
- Tamper switch
- Wall or mullion mount
- IP65 rated for indoor and outdoor use
- For use with MIFARE classic cards and key-fobs.
- Two interfaces - RS485 and Wiegand.
Call for Availability
Regular price
$179.66
Shipping calculated at checkout
The LECTUS duo classic family comes in an attractive mullion design for wall and mullion mounting. The keypad version can be used to enter a PIN Code; or activate a custom feature like a long term open state of an entrance.
The LECTUS duo readers are fully compatible with the Bosch access management portfolio, including the management software systems (BIS/ACE, AMS and APE), the access modular controllers (AMC2) and the MIFARE and card technologies.
The support of 13.56MHZ credential formats offers a migration path for proximity installations. The reader is easily configurable via DIP switch settings to enable and disable MIFARE Classic reading and CSN or Bosch code reading only.
The user can configure the reader to read either Bosch coded MIFARE Classic credentials or the MIFARE Classic ISO14443A CSN.
During the operation, the user receives feedback from three LED indicators and a beeper. The logo on the reader is illuminated in the dark.
The reader is IP65 rated and appropriate for indoor and outdoor use.
The LECTUS duo readers are fully compatible with the Bosch access management portfolio, including the management software systems (BIS/ACE, AMS and APE), the access modular controllers (AMC2) and the MIFARE and card technologies.
The support of 13.56MHZ credential formats offers a migration path for proximity installations. The reader is easily configurable via DIP switch settings to enable and disable MIFARE Classic reading and CSN or Bosch code reading only.
The user can configure the reader to read either Bosch coded MIFARE Classic credentials or the MIFARE Classic ISO14443A CSN.
During the operation, the user receives feedback from three LED indicators and a beeper. The logo on the reader is illuminated in the dark.
The reader is IP65 rated and appropriate for indoor and outdoor use.
- Tamper switch
- Wall or mullion mount
- IP65 rated for indoor and outdoor use
- For use with MIFARE classic cards and key-fobs.
- Two interfaces - RS485 and Wiegand.
Application/Usage:
Indoor,Outdoor
Compatibility:
Supported cards
- MIFARE classic (ISO 14443A CSN/Bosch code)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Identification Method:
Proximity
Impact Protection (IK) Rating:
IK08
Ingress Protection (IP) Rating:
IP65
Input Voltage:
8.5 V DC,12 V DC,16 V DC
Manufacturer:
The Bosch Group
Manufacturer Website Address:
http://www.bosch.com
Operating Range:
2.36"
Packaged Quantity:
1
Package Contents:
- ARD-AYBS6260 Card Reader, MIFARE Classic
- 1 x Back Plate
- 1 x Mounting Frame
- 2 x Screw Anchors
- 2 x Small Screws (silver)
- 2 x Small Screws (black)
- 2 x Long Screws
- 1 x Screw Wrench
- 1 x Mounting Template
- 1 x Installation Manual
Product Color:
Black
Product Line:
LECTUS duo 3000 classic
Product Model:
ARD-AYBS6260
Product Type:
Card Reader Access Device
Serial:
Yes
Wiegand:
Yes
