Black Box VDSL2 Ethernet Extender - 10/100/1000BASE-TX, 2-Port
The MEG101AE-R5 extender uses G.993.2 VDSL2 standard technology to transmit data between LANs at up to 160-Mbps symmetric using only a single copper wire pair. It supports symmetrical and asymmetrical transmission at up to 160-Mbps within 300 meters and 5-/1-Mbps at 3000 meters. The unit is ideal for extending LAN to buildings, hotels, hospitals, or any location outside of the 100 meters reach of Ethernet UTP.

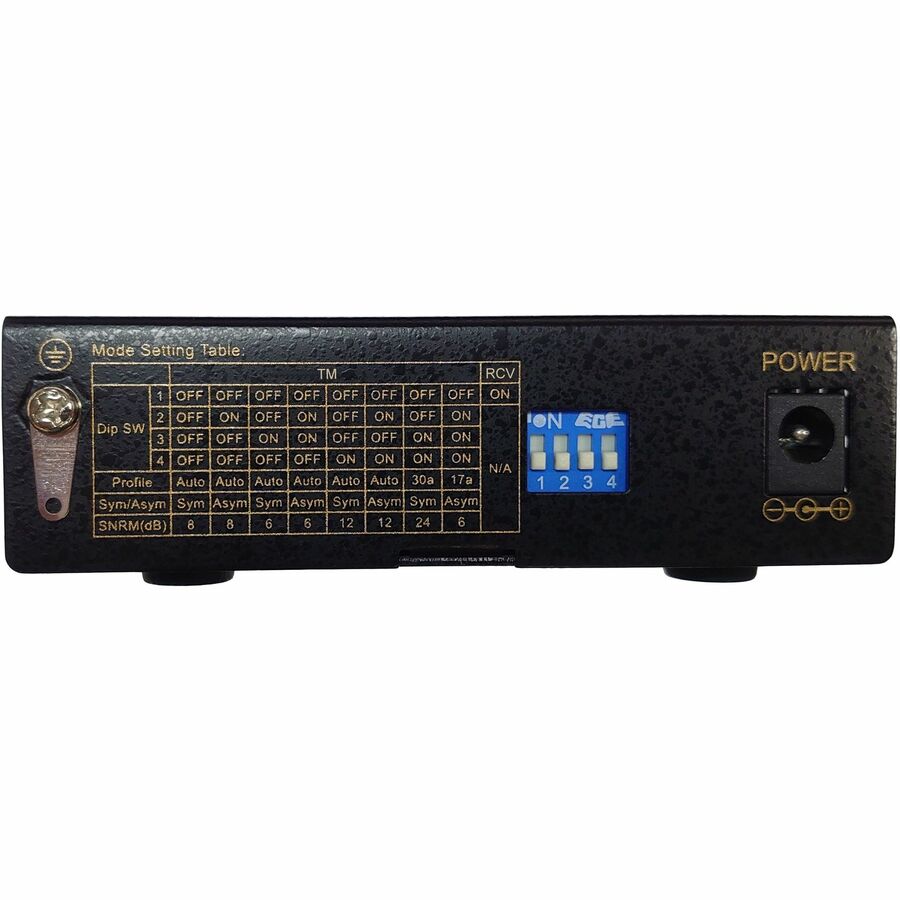

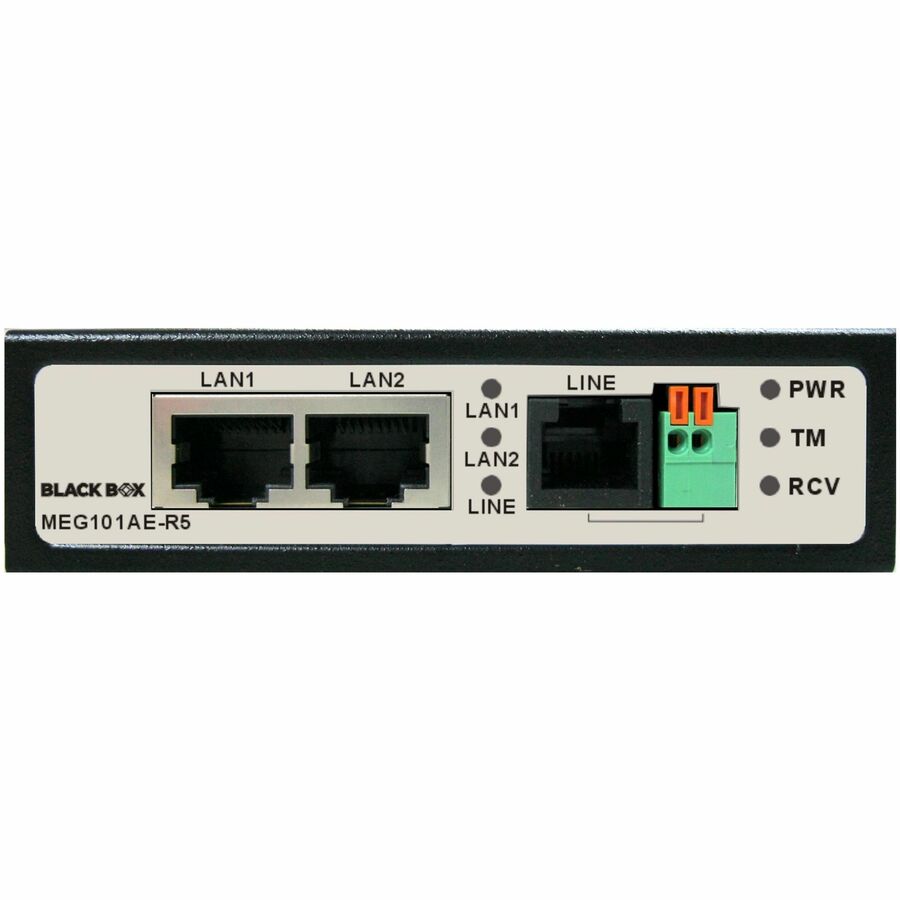

The extender features two 10/100/1000 Ethernet ports, a DIP switch to select Central Office (CO) or Customer Premise Equipment (CPE), 8 selectable bands, selectable SNRM level, and selectable G.INP. LED indicators include PWR, CO, and CPE.
- Transmits data between LANs using only a single copper wire pair
- Supports symmetrical and asymmetrical transmission at up to 160-Mbps within 300 meters and 5-/1-Mbps at 3000 meters
- Has (2) 10/100/1000 Ethernet ports
- Supports a maximum line speed of 160 Mbps
- Uses a DIP switch to configure CO or CPE
- Mounts on a wall or DIN-rail
- Selectable SNRM level
- Includes (3) LED indicators: PWR/CO/CPE
Only 1 in stock
Shipping calculated at checkout
The MEG101AE-R5 extender uses G.993.2 VDSL2 standard technology to transmit data between LANs at up to 160-Mbps symmetric using only a single copper wire pair. It supports symmetrical and asymmetrical transmission at up to 160-Mbps within 300 meters and 5-/1-Mbps at 3000 meters. The unit is ideal for extending LAN to buildings, hotels, hospitals, or any location outside of the 100 meters reach of Ethernet UTP.
The extender features two 10/100/1000 Ethernet ports, a DIP switch to select Central Office (CO) or Customer Premise Equipment (CPE), 8 selectable bands, selectable SNRM level, and selectable G.INP. LED indicators include PWR, CO, and CPE.
- Transmits data between LANs using only a single copper wire pair
- Supports symmetrical and asymmetrical transmission at up to 160-Mbps within 300 meters and 5-/1-Mbps at 3000 meters
- Has (2) 10/100/1000 Ethernet ports
- Supports a maximum line speed of 160 Mbps
- Uses a DIP switch to configure CO or CPE
- Mounts on a wall or DIN-rail
- Selectable SNRM level
- Includes (3) LED indicators: PWR/CO/CPE
