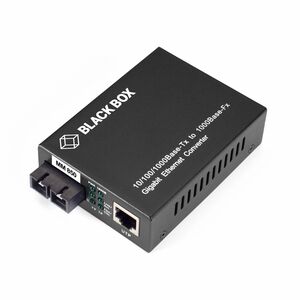

Black Box Pure Networking Transceiver Media Converter

SKU: LGC211A-R2

10/100/1000BASE-TX to 1000BASE-SX

Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-SX. Includes broadcast storm control, flow control, and CRC error checking.

Auto-negotiation

Completely compatible with IEEE802.3/802.3u auto-negotiation function.

Complies with Standards

The media converter meets EN60950, UL62368, and EN62368 standards.

  • Compliant to EN60950, UL62368, and EN62368
  • Converts 10/100/1000BASE-TX to 1000BASE-SX
  • Maximum transmission distance up to 550 m
  • Use as a standalone unit or with available chassis (LHGC-RACK)
  • Supports frame size of 9000 bytes

Call for Availability

Regular price $112.14

Shipping calculated at checkout

Details

10/100/1000BASE-TX to 1000BASE-SX

Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-SX. Includes broadcast storm control, flow control, and CRC error checking.

Auto-negotiation

Completely compatible with IEEE802.3/802.3u auto-negotiation function.

Complies with Standards

The media converter meets EN60950, UL62368, and EN62368 standards.

  • Compliant to EN60950, UL62368, and EN62368
  • Converts 10/100/1000BASE-TX to 1000BASE-SX
  • Maximum transmission distance up to 550 m
  • Use as a standalone unit or with available chassis (LHGC-RACK)
  • Supports frame size of 9000 bytes
Specifications
Additional Warranty Information:

Double Diamond Warranty (Standard)

Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
Gigabit Ethernet
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Core/Cladding Specification:
50/125 µm,62.5/125 µm
Fiber Optic Cable Wavelength:
850 nm
Form Factor:
Standalone,Rack-mountable
Limited Warranty:
3 Year
Manufacturer:
Black Box Corporation
Manufacturer Website Address:
http://www.blackbox.com
Maximum Distance Supported:
0.55 km
Media Type Supported:
Optical Fiber,Twisted Pair
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-TX,1000Base-SX
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
Packaged Quantity:
1
Package Contents:

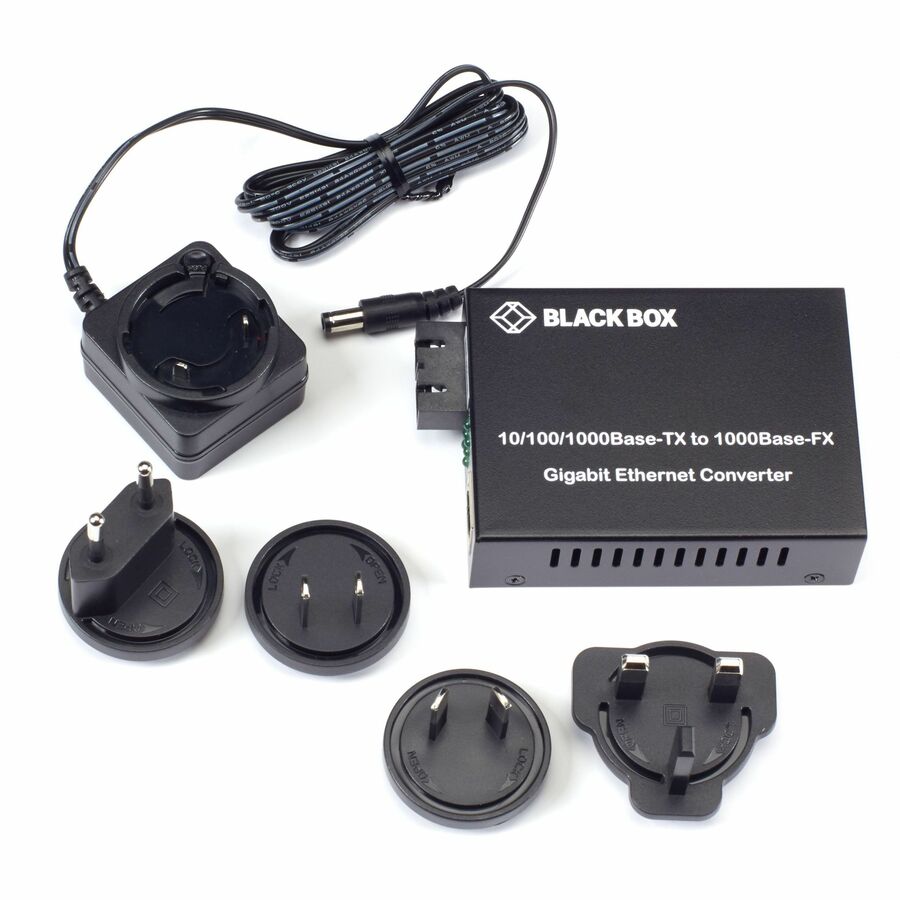

  • Pure Networking Transceiver Media Converter
  • 1 x 5-VDC Power Adapter (US, EU, UK and AU Power Clips)
Plug/Connector Type:
Barrel
Power Source:
AC Adapter
Product Line:
Pure Networking
Product Type:
Transceiver/Media Converter
SC Port Type:
Duplex
Total Number of Ports:
2
